◀◀ Key Selling Points ▶▶
1. High Accuracy and Precision: Offers a measuring range of 0-3000 mg/L with an accuracy of ±1.5% F.S. and ±0.5 mg/L, ensuring reliable and precise TDS measurements.
2. Automatic Temperature Compensation: Equipped with a Pt1000 temperature sensor for automatic temperature compensation, ensuring accurate readings even in fluctuating temperature conditions.
3. Durable and Corrosion-Resistant: Made with ABS material and featuring IP68 protection, the sensor is highly resistant to corrosion and can withstand immersion in water, including seawater, for extended periods.
4. Easy Integration: Supports RS485 Modbus-RTU protocol, allowing seamless integration with third-party equipment such as PLCs, DCS systems, industrial computers, and touch panels.

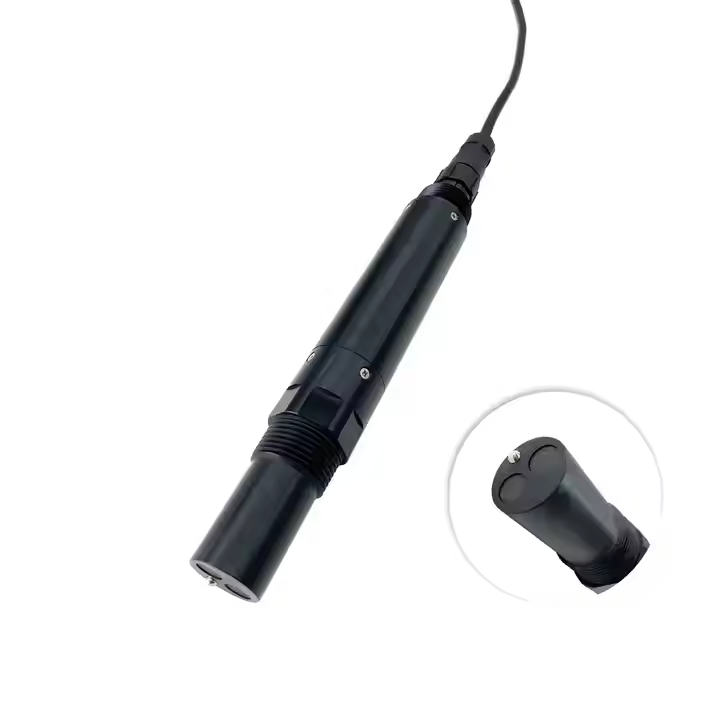

5. Low Maintenance: The inductive electrode design requires minimal maintenance, and the sensor is easy to clean and calibrate, reducing downtime and operational costs.
6. Wide Application Range: Suitable for various water types, including drinking water, surface water, and industrial water treatment, making it versatile for multiple industries.
7. Energy-Efficient: Consumes only 0.1W at 12V, making it an energy-efficient solution for continuous monitoring.

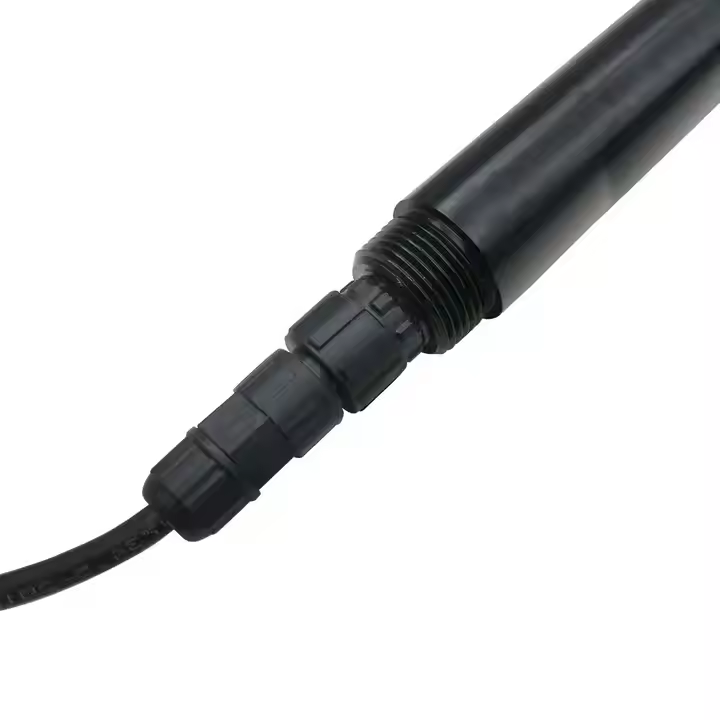

8. Customizable Cable Length: Comes with a standard 5-meter cable, with options for custom lengths to suit specific installation needs.
◀◀ Product Parameters ▶▶
Model | BGT-WTDS(K) |
Measuring range | 0~3000mg/L |
Resolution | 1mg/L, 0.1°C |
Accuracy | ±1.5%F.S., ±0.5mg/L |
Operating temperature | 0~65°C |
Working pressure | <0.6MPa |
Power supply | 12~24VDC |
Signal output | RS485 Modbus-RTU |
Wetted | ABS |
Installation | Immersion installation |
Cable length | 5 meters or others |
Temperature compensation | Automatic temperature compensation (Pt1000) |
Calibration methods | Two-point calibration |
Power | 0.1W@12V |
Protection class | IP68 |
◀◀ Application Scenarios ▶▶
1. Drinking Water Monitoring: Ensures the safety and quality of drinking water by continuously monitoring TDS levels.
2. Surface Water Monitoring: Used in rivers, lakes, and reservoirs to monitor water quality and detect contamination.
3. Industrial Water Treatment: Ideal for monitoring TDS levels in industrial water treatment processes, ensuring compliance with environmental regulations.
4. Aquaculture: Helps maintain optimal water quality in fish farms and aquaculture systems by monitoring TDS levels.
5. Hydroponics and Agriculture: Used in hydroponic systems and agricultural irrigation to monitor nutrient levels and water quality.
6. Wastewater Treatment: Monitors TDS levels in wastewater treatment plants to ensure proper treatment and discharge.
7. Swimming Pools and Spas: Ensures water quality in recreational facilities by monitoring TDS levels.
