◀◀ Key Selling Points ▶▶

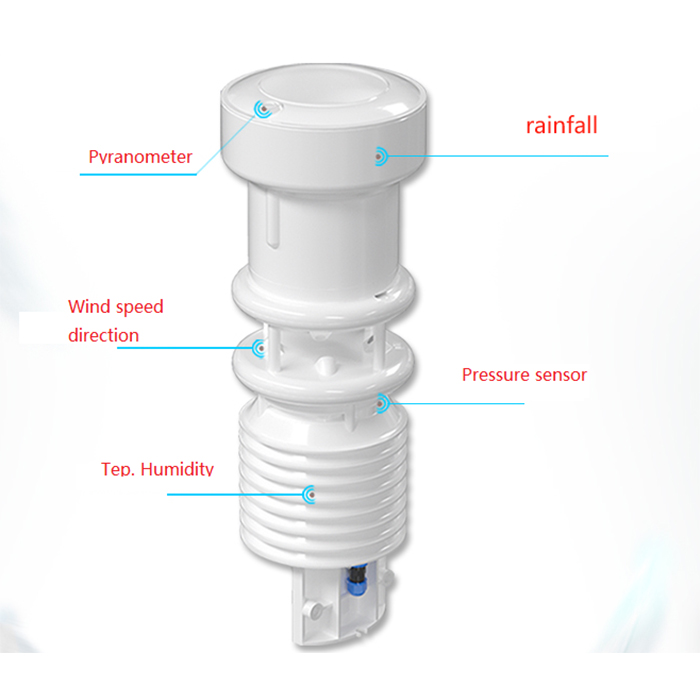

1. Comprehensive Monitoring: Capable of measuring a wide range of meteorological and environmental parameters, including temperature, humidity, wind speed, wind direction, rainfall, air pressure, solar radiation, soil conditions, and gas concentrations (CO2, SO2, NO2, O3, etc.).
2. High Accuracy and Reliability: Utilizes advanced sensors and filtering algorithms to ensure precise and stable data collection, even in harsh weather conditions.
3. Modular and Customizable: The device supports expansion with various sensors, allowing users to customize the system based on specific needs.
4. Easy Installation and Maintenance: Designed for quick installation (one-minute setup) and easy maintenance, with replaceable probes and modular components.
5. Durability in Harsh Environments: Built to withstand extreme temperatures (-30°C to +70°C) and high h
umidity (0-100% RH), with an IP65 protection rating.
6. Low Power Consumption: Energy-efficient design with low power consumption, making it suitable for remote or off-grid locations.
7. Advanced Communication Protocols: Supports RS485 and MODBUS RTU protocol, enabling seamless integration with existing systems.
8. Optional Features: Includes additional functionalities like heating, GPS, and an electronic compass for enhanced performance in specific environments.
◀◀ Product Parameters ▶▶
Elements | Range | Resolution | Accuracy | Configuration |
Temperatire | -40-123.8℃ | 0.1℃ | ±0.3℃ | Customized |
Humidity | 0-100%RH | 0.10% | ±2%(≦80%)±5%（>80%） | Customized |
Dew point temperature | -40-50℃ | 0.1℃ | Calculated value (complimentary) | Customized |
Maximum temperature of the day | -40-123.8℃ | 0.1℃ | Calculated value (complimentary) | Customized |
Minimum temperature of the day | -40-123.8℃ | 0.1℃ | Calculated value (complimentary) | Customized |
Ultrasonic direction | 0-360° | 1° | ±2° | Customized |
Ultrasonic speed | 0-60m/s | 0.1m/s | ±2%(≦20m/s) ±2%+0.03V m/s（>20m/s） | Customized |
2 min average wind speed | 0-60m/s | 0.1m/s | Calculated value (complimentary) | Customized |
10 min average wind speed | 0-60m/s | 0.1m/s | Calculated value (complimentary) | Customized |
electronic compass | 0-359.9° | 0.1°magnetic variation | ±4° | Customized |
Pressure | 300-1100hpa | 0.1hpa | ±0.12hpa | Customized |
Rainfall | 0-999.9mm | 0.2mm\0.5mm | ≦0.2mm | Customized |
Total radiation(Photoelectric) | 0-2000W | 1W/㎡ | ≦5% | Customized |
Total radiation daily accumulation | 0-99.99 | 0.01 | Calculated value (complimentary) | Customized |
Total radiation monthly accumulation | 0-9999 | 1 | Calculated value (complimentary) | Customized |
Total radiation annual accumulation | 0-9999 | 1 | Calculated value (complimentary) | Customized |
UV | 0-500w | 1W/㎡ | ≦5% | Customized |
CO2 | 0-2000ppm | 1ppm | ±20ppm | Customized |
Noise | 30-130dB | 0.1dB | ±5dB | Customized |
PM2.5 | 0-500ug/m³ | 0.01ug\m3 | ±10% | Customized |
PM10 | 0-1000ug/m³ | 0.01ug\m3 | ±10% | Customized |
illuminance | 0-200000 Lux | ±7% | Customized | |
sunshine duration | 0-24h | 0.1h | ±0.1h | Customized |
Soil temperature | -50-80℃ | 0.1℃ | ±0.1℃ | Customized |
Soil moisture | 0-100%RH | 0.1% | ±2% | Customized |
Soil EC | 0-15mS/cm | 0.01 | ±0.5% | Customized |
Soil PH | 1-14PH | 0.1 | ±2% | Customized |
Evaporation | 0-200mm | 0.1mm | ±1.5% | Customized |
PAR | 0-500W | 1W/㎡ | ≦5% | Customized |
CO | 0-10ppm | 0.001ppm | ±3% FS | Customized |
SO2 | 0-1ppm | 0.001ppm | ±3% FS | Customized |
O3 | 0-1ppm | 0.001ppm | ±3% FS | Customized |
NO2 | 0-1ppm | 0.001ppm | ±3% FS | Customized |
VOCvolatile matter | 0-20ppm | 0.001ppm | ±3% FS | Customized |
H2S | 0-10ppm | 0.001ppm | ±3% FS | Customized |
NH3 | 0-10ppm | 0.001ppm | ±3% FS | Customized |
CH2O | 0-1ppm | 0.001ppm | ±3% FS | Customized |
CI2 | 0-10ppm | 0.001ppm | ±3% FS | Customized |
C2H4O | 0-100ppm | 0.001ppm | ±3% FS | Customized |
H₂O₂ | 0-100ppm | 0.001ppm | ±3% FS | Customized |
H2 | 0-1000ppm | 1ppm | ±3% FS | Customized |
HCl | 0-20ppm | 0.01ppm | ±3% FS | Customized |
HCN | 0-20ppm | 0.01ppm | ±3% FS | Customized |
PH3 | 0-20ppm | 0.01ppm | ±3% FS | Customized |
O2 | 0-30%VOL | 0.01%VOL | ±3% FS | Customized |
N2 | 0-100%VOL | 0.01%VOL | ±3% FS | Customized |
NO | 0-1ppm | 0.001ppm | ±3% FS | Customized |
ClO₂ | 0-50ppm | 0.01ppm | ±3% FS | Customized |
CH4S | 0-10ppm | 0.01ppm | ±3% FS | Customized |
C₂H₄ | 0-100ppm | 0.01ppm | ±3% FS | Customized |
Br2 | 0-10ppm | 0.01ppm | ±3% FS | Customized |
THT | 0-50ppm | 0.01ppm | ±3% FS | Customized |
F2 | 0-1ppm | 0.01ppm | ±3% FS | Customized |
HF | 0-10ppm | 0.01ppm | ±3% FS | Customized |
HBr | 0-20ppm | 0.02ppm | ±3% FS | Customized |
COCl2 | 0-1ppm | 0.001ppm | ±3% FS | Customized |
CH4 | 0-5000ppm | 1ppm | ±3% FS | Customized |
◀◀ Application Scenarios ▶▶

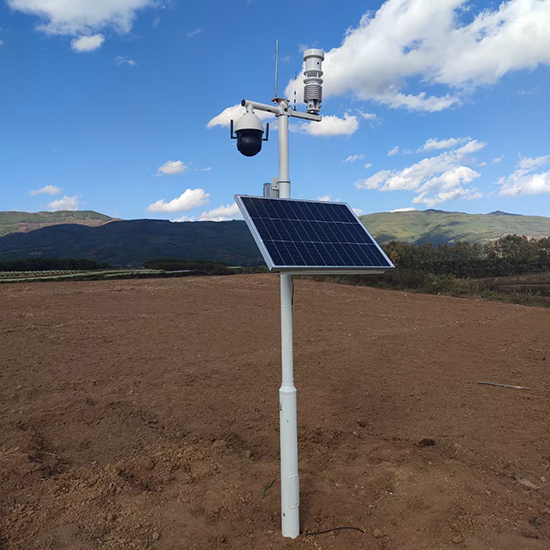

1. Meteorological Monitoring: Ideal for weather stations, airports, and research institutions requiring accurate and real-time meteorological data.
2. Environmental Protection: Suitable for monitoring air quality, gas concentrations, and environmental conditions in urban and industrial areas.
3. Agriculture and Forestry: Used for monitoring soil conditions, temperature, humidity, and solar radiation to optimize crop growth and forest management.
4. Marine and Coastal Areas: Perfect for ports, offshore oil platforms, and coastal regions where salt spray and high humidity are common.
5. Transportation and Logistics: Helps monitor weather conditions for safe and efficient transportation operations, especially in aviation and shipping.
6. Emergency and Disaster Management: Provides critical data for disaster preparedness and response, such as flood monitoring, storm tracking, and air quality assessment.
7. Scientific Research: Used in various research fields, including climate studies, environmental science, and hydrology.
◆◆ Perfect for: Weather stations, environmental protection agencies, agricultural and forestry operations, marine and coastal monitoring, transportation, emergency management, and scientific research.
