Revolutionize Flow Velocity Measurement with the BGT-RD102 Radar Velocity Meter

Revolutionize Flow Velocity Measurement with The BGT-RD102 Radar Velocity Meter

BGT-RD102 radar (radio wave) velocity meter uses a K-band planar micro strip array antenna with concentrated energy and low power consumption. The instrument integrates vertical angle compensation and flows velocity. Functions such as averaging, signal strength detection, serial communication control, etc. When the non-contact radar current measurement system measures the speed of the device, it will not be corroded by sewage, not affected by sediment, simple in construction, less affected by water damage, easy to maintains, and ensure personnel safety. Not only can be used for ordinary environmental monitoring, especially suitable for undertaking urgent and dangerous observation tasks.

Availability:



Inquire

Radar Velocity Meter Radar Velocity Monitor velocity & flow sensors velocity flow meter water flow velocity meter velocity meter for water

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

1. Non-Contact Measurement: Utilizes radar technology for non-contact flow velocity measurement, ensuring no corrosion from sewage or interference from sediment.

2. High Accuracy & Sensitivity: Measures flow velocity with high precision (±0.03m/s or ±0.01m/s optional) and sensitivity (detects as low as 1cm/s).

3. Wide Measurement Range: Capable of measuring flow velocities from 0.01m/s to 20m/s, with an effective distance of up to 40m.

4. Low Power Consumption: Operates on a wide voltage range (7-30V DC) with low power consumption, making it suitable for solar-powered applications.

5. Multiple Communication Interfaces: Supports RS485, RS232, 4-20mA, and optional wireless communication (433MHz), providing flexibility for integration into various systems.

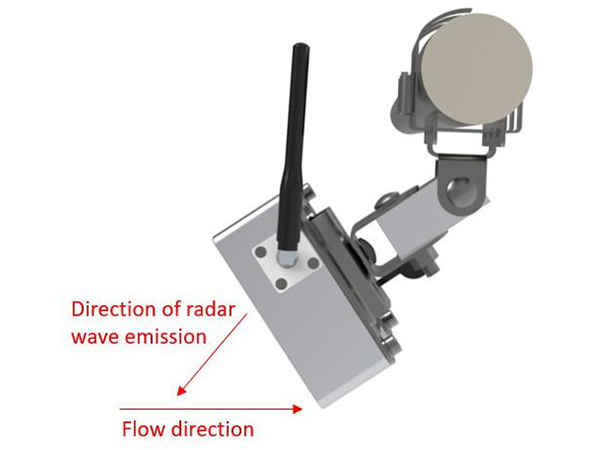

6. Automatic Vertical Angle Correction: Automatically corrects for vertical tilt angles, ensuring accurate measurements even in challenging conditions.

7. Durable & Weatherproof:IP68 waterproof rating and aluminum alloy shell make it suitable for harsh outdoor environments.

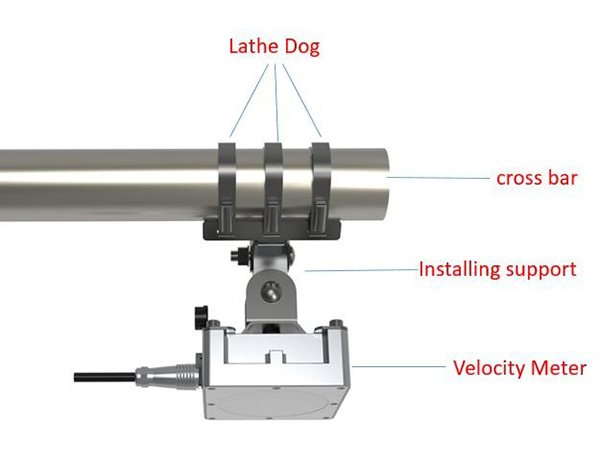

8. Easy Installation & Maintenance: Simple installation with minimal civil construction required, and low maintenance needs.

9. Versatile Trigger Modes: Supports multiple trigger modes (cycle, trigger, manual, automatic) for flexible operation.

10. Lightning Protection: Integrated lightning protection ensures safety during thunderstorms.

◆◆ Why Choose BGT-RD102?

Compact & Durable: Easy to install in various environments, from rivers to industrial pipelines.

Customizable Protocols: Tailor the meter to meet your specific needs with customizable communication protocols.

Lightning Protection: Stay safe during thunderstorms with integrated lightning protection.

◀◀ Product Parameters ▶▶

Accuracy	±0.03m/s ,±0.01m/s
Measuring range	0.01-20m/s
Radar Frequency	24GHz
Voltage	7-30 VDC
Shell Material	Aluminum
Protection Level	IP68
Operating Temperature	-35℃-70℃

The BGT-RD102 Radar Velocity Meter is your ultimate solution for accurate and reliable flow velocity measurement. Utilizing advanced radar technology, this non-contact meter delivers unmatched precision, unaffected by environmental factors like sediment or sewage. Whether you're managing flood control, monitoring industrial flows, or conducting hydrological research, the BGT-RD102 ensures you get the data you need, when you need it.

◀◀ Application Scenarios ▶▶

1. Flood Monitoring & Control: Ideal for monitoring high-flow conditions during flood periods, providing critical data for flood control systems.

2. River & Canal Flow Monitoring: Suitable for measuring flow velocity in rivers, canals, and irrigation systems, aiding in water resource management.

3. Environmental Monitoring: Effective for monitoring flow velocity in natural water bodies, supporting environmental conservation efforts.

4. Industrial Flow Measurement: Can be used in industrial settings to monitor flow velocity in pipelines and tanks, ensuring efficient resource management.

5. Hydrological Research: Suitable for hydrological research and data collection in various water bodies.

6. Urban Water Management: Can be integrated into urban water regime and sewage systems for real-time flow monitoring.
