◀◀ Key Selling Points ▶▶
Real-Time Monitoring:
Estrus detection
Pregnancy tracking
Calving status
Health metrics (body temperature, activity)
Abnormal alerts (disease, stress)

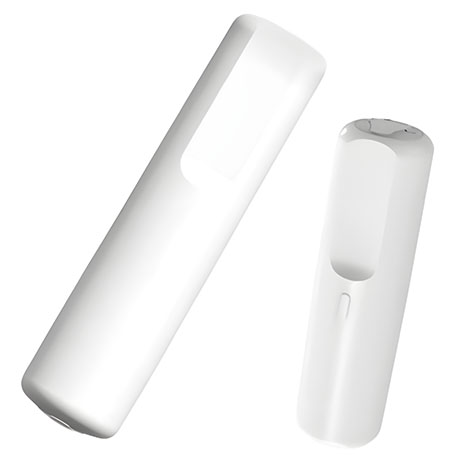

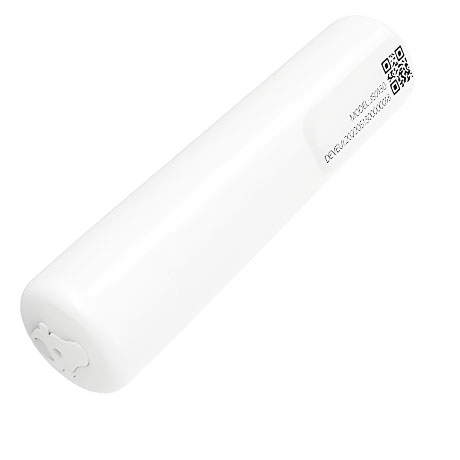

Rumen-Optimized Design:
Corrosion-resistant, biocompatible shell material (UV/impact-resistant).
Ergonomic capsule shape for easy ingestion and zero rejection.

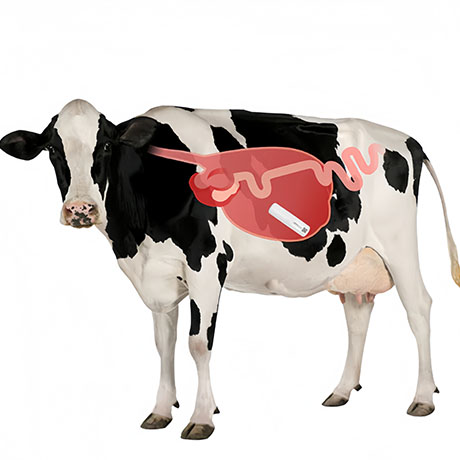

Stable temperature measurement unaffected by external conditions.
Data Integrity:
Continuous, traceable data logging for drinking behavior and calving patterns.
Cross-comparable analytics for herd management.
◀◀ Product Parameters ▶▶
| Parameter | Specification/Description |
|---|---|
| Communication Mode | LoRaWAN |
| Supported Frequency Bands | 470MHz, 868MHz, 915MHz, 923MHz |
| LoRa Output Power | SF9: 16dBm@470MHz; 17dBm@868MHz; 15dBm@915MHz; 15dBm@923MHz |
| Communication Range | Up to 500m from gateway post-rumen placement (open area without interference) |
| Temperature Accuracy | ±0.1°C (monitors internal rumen temperature) |
| Motion Sensor | Tracks rumen motility status |
| Data Upload Frequency | Once every 15 minutes |
| Operating Current | Standby: 22μA; Average: 65μA/h |
| Average Power Consumption | <3.3mW |
| Battery | 3V, 4800mAh (JS-0130) / 2400mAh (JS-0103) |
| Operational Lifespan | 5 years (BGT-0130) / 3 years (BGT-0103) (default: 10-minute data upload interval) |
| Waterproof Rating | IP68 |
| Operating Temperature | -40°C to 65°C (ambient); 23°C to 45°C (internal rumen, adjustable via feeding mode) |
| Storage Temperature | -40°C to 21°C (external, optimized in power-saving/non-feeding mode) |
| Dimensions | BGT-0130: 130.5×32 mm; BGT-0103: 103.5×28.5 mm |
| Weight | BGT-0130: 200g; BGT-0103: 120g |

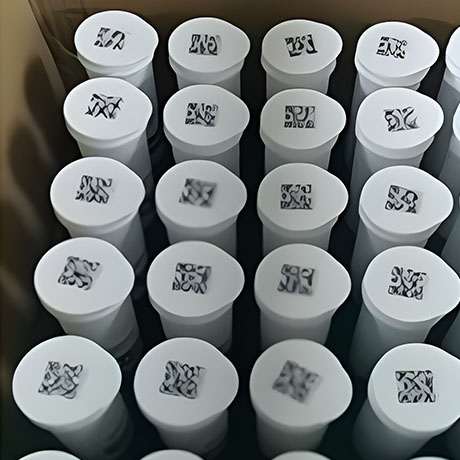

| Packaging | 30 units/box |
◀◀ Application Scenarios ▶▶
Large-Scale Ranching: Intelligent monitoring management.
Livestock Insurance: Risk assessment for loans/insurance.
Meat/Dairy Branding: Quality assurance for premium products.
Feed Optimization: Tailor formulas using behavioral data.
Veterinary Care: Early disease detection and targeted treatment.
Breeding Programs: Genetic selection via health analytics.
Research & Policy: Academic studies and market regulation.
