3-INCH Stainless Steel Solar Screw Pump

The 3-inch Stainless Steel Solar Screw Pump, engineered for high-efficiency off-grid water solutions. Featuring a corrosion-resistant pump head (SS304 standard, SS201 optional) and robust SS304/SS201 pump body, this pump integrates a precision screw impeller and industrial-grade NSK bearings. Powered by a permanent magnetic synchronous motor (PMSM) and backed by a 3-meter cable, it delivers reliable performance with advanced solar optimization.

Availability:



Inquire

Solar Water Pump Solar Water screw Pump DC Solar Pump Solar Pumping System Solar Irrigation Pump

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

✅ Unmatched Efficiency: PMSM technology maximizes energy conversion (>90% motor efficiency) and reduces startup power needs.
✅ Smart MPPT Control: Dynamically adjusts to sunlight variations for 30% higher yield than conventional pumps.
✅ Extended Lifespan: 3× more durable than AC pumps, with premium stainless-steel construction resisting rust and abrasion.
✅ Comprehensive Protection: Auto-shutdown safeguards against over-load, under-load, rotor lock, and overheating.
✅ Oil-Cooled Design: Ensures stable operation in harsh environments (up to 60°C ambient temperature).

Why Choose This Solar Pump?

Engineered for zero-maintenance operation in harsh conditions, our screw pump converts sunlight into relentless water pressure without fuel costs. The MPPT controller ensures peak performance even on cloudy days, while stainless-steel components withstand sand, silt, and saline water. Backed by 4-layer rotor protection, it’s the ultimate off-grid water solution.

◀◀ Product Parameters ▶▶

Model	Max Flow (m³/h)	Max Head (m)	Voltage (V)	Power (W)	Pump Dia (inch)	Outlet Dia (inch)	VOC Range (V)	Solar Panel Power (W)
3YYS1.0/30-D24/80(C)	1.0	30	DC24	80	3	0.75	25–50	≥150
3YYS1.3/50-D24/140(C)	1.3	50	DC24	140	3	0.75	25–50	≥200
3YYS1.8/80-D24/210(C)	1.8	80	DC24	210	3	0.75	25–50	≥300
3YYS1.8/100-D24/270(C)	1.8	100	DC24	300	3	0.75	25–50	≥500
3YYS1.8/120-D48/500(C)	1.8	120	DC48	500	3	0.75	50–100	≥800
3YYS2.3/140-D48/750(C)	2.3	140	DC48	750	3	0.75	50–100	≥1000
3YYS2.3/160-D72/1000(C)	2.3	160	DC72	1000	3	0.75	75–150	≥1500
3YYS2.3/180-D72/1200(C)	2.3	180	DC72	1200	3	0.75	75–150	≥1800

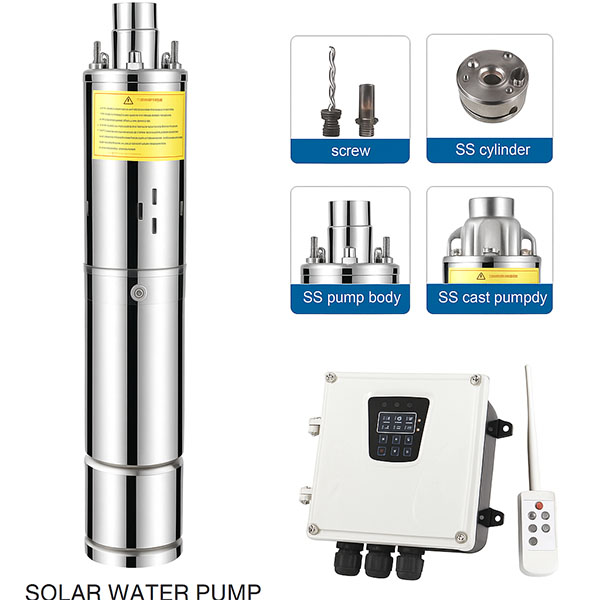

Solar water pump1

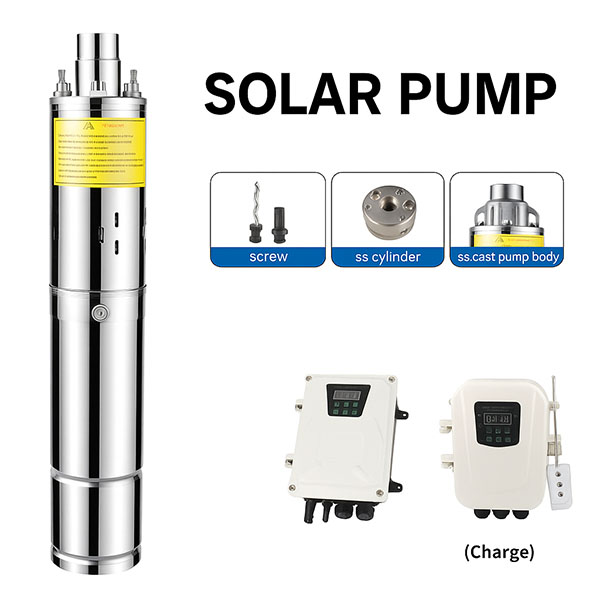

Solar water pump11

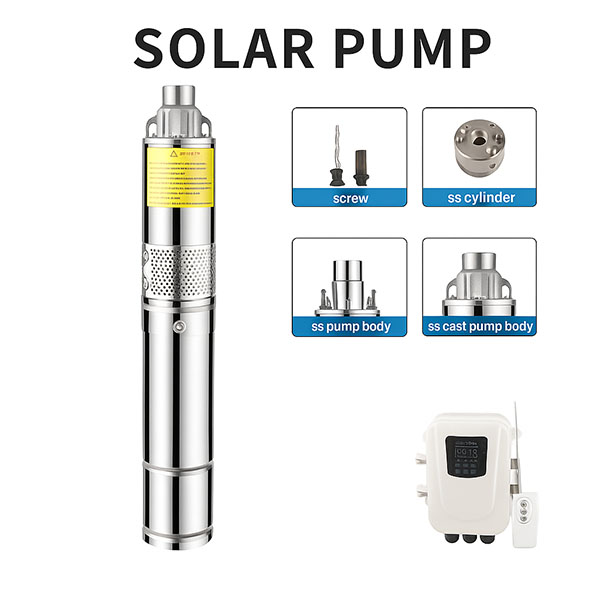

Solar water pump2

◀◀ Application Scenarios ▶▶

Agriculture: Ideal for drip irrigation and crop fields in sun-rich regions, eliminating grid dependency.
Remote Water Supply: Powers homesteads, livestock watering, and mountain cabins beyond electrical grids.
Landscape Management: Effortlessly maintains gardens, parks, and golf courses with silent, emission-free operation.
Water Transfer: Reliable for ponds, wells, and rainwater harvesting systems (compatible with 3-inch boreholes).
