◀◀ Key Selling Points ▶▶

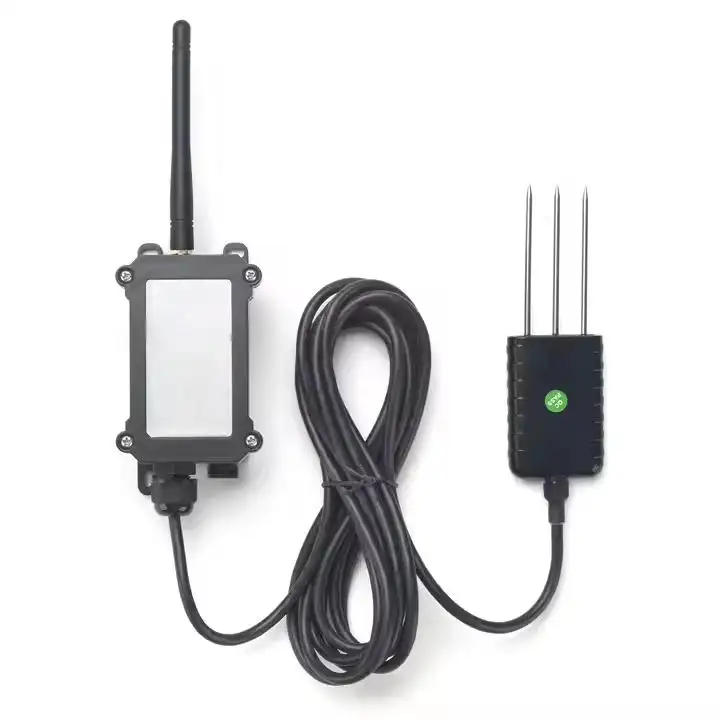

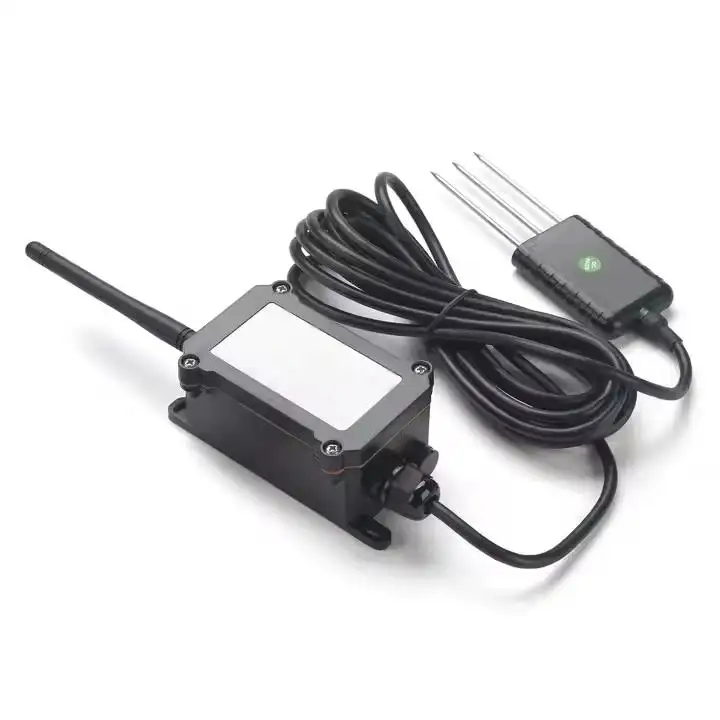

BGT-SEC(GW100) LoRaWAN Soil Moisture & EC Sensor
✅ Precision Sensing
Measures Soil Moisture, Temperature & Conductivity with ±3% accuracy (moisture) and ±2% accuracy (conductivity).
FDR method + RTD temperature sensing for reliable data.
Factory-calibrated for mineral soils and saline-alkali environments.
✅ Ultra-Low Power & Long Lifespan
8500mAh Li-SOCl₂ battery or solar + Li-ion hybrid power.
Designed for 5-year continuous operation with smart sleep modes.
✅ Smart Connectivity
LoRaWAN® v1.0.3 Class A for ultra-long-range data transmission (up to 15km in open field).
BLE configuration & wireless OTA updates for zero-wire maintenance.
✅ Rugged Design
IP67 waterproof & dustproof.
Wide operating temp: -40°C to 85°C.
✅ Easy Deployment
Pre-loaded LoRaWAN keys for plug-and-play setup.
Supports 14 global frequency bands (CN470/EU433/US915, etc.).

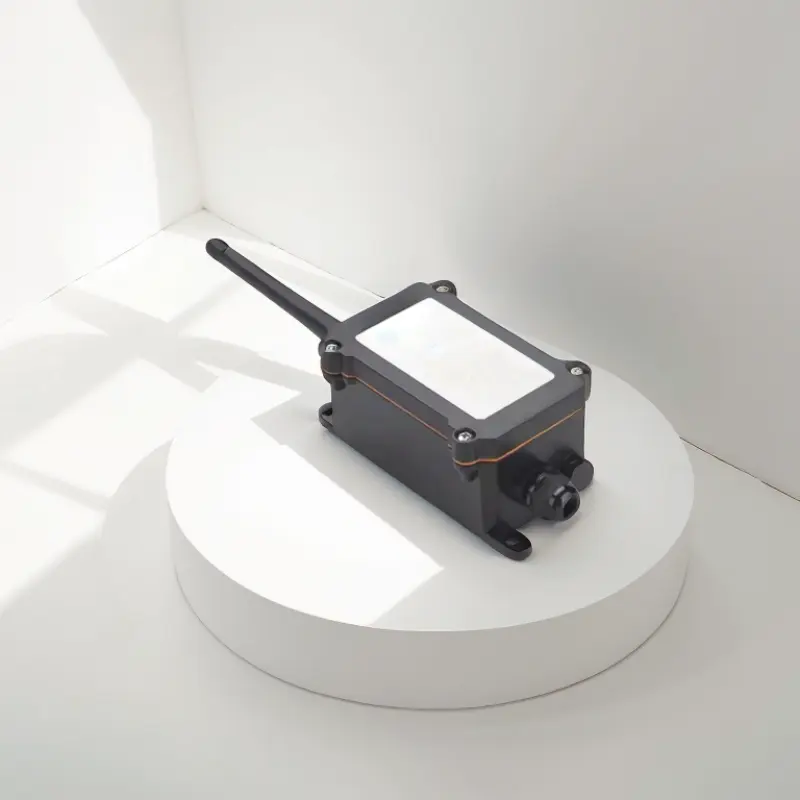

BGT-GW100 RS485/UART to LoRaWAN Converter
Versatile Sensor Integration
Connects RS485/UART/Interrupt sensors (3.3V/5V compatible).
Dual 3.3V/5V outputs to power external devices.
Seamless IoT Connectivity
Converts RS485/UART data to LoRaWAN packets for long-range transmission.
AT command control & downlink configuration.
⚡ Energy Efficiency
8500mAh Li-SOCl₂ battery or solar + Li-ion hybrid.
Controllable 3.3V/5V outputs to minimize power consumption.
◀◀ Product Parameters ▶▶
| Parameter | BGT-SEC(GW100) Sensor | BGT-GW100 Converter |
|---|---|---|
| Technology | LoRaWAN® v1.0.3 Class A | LoRaWAN® v1.0.3 Class A |
| Frequency Bands | CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 | Same as Sensor |
| Battery | 8500mAh Li-SOCl₂ (5-year lifespan) | Same as Sensor |
| Soil Moisture | 0-100.00% V/V, ±3% accuracy | N/A |
| Soil Temperature | -40°C~85°C, ±0.3°C (at -10°C~50°C) | N/A |
| Soil Conductivity | 0-20,000 µS/cm (0-20.0 EC), ±2% FS | N/A |
| Ingress Protection | IP67 Waterproof | IP66 Waterproof |
| Interfaces | FDR Moisture, RTD Temp, EC | RS485, UART (3.3V/5V), Interrupt |
| Power Options | Solar + Li-ion or standalone Li-SOCl₂ | Solar + Li-ion or standalone Li-SOCl₂ |
| Dimensions | Compact sensor design | Robust IP66 enclosure |
◀◀ Application Scenarios ▶▶

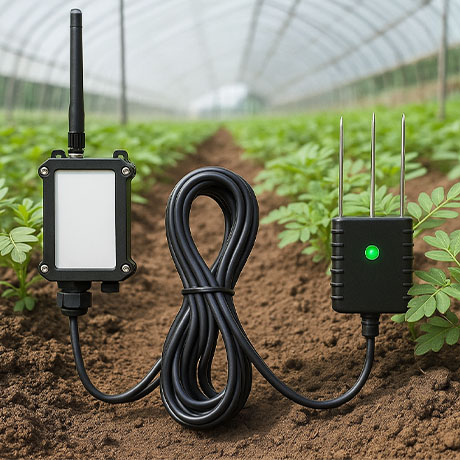

Precision Agriculture
Monitor soil moisture in real-time for smart irrigation (save 30% water).
Detect saline-alkali soil degradation and optimize fertilizer use.
Field Monitoring Systems
Deploy in large farms for automated data collection (moisture, temp, EC).
Integrate with LoRaWAN® gateways for cloud-based dashboards.
Research & Development
Ideal for soil health studies in labs or field trials.
Calibrate sensors for custom soil types (e.g., mineral, loamy).
Water Conservation Projects
Trigger irrigation alerts based on soil moisture thresholds.
Reduce water waste in drought-prone regions.
IoT Solution Providers
Plug-and-play sensor + converter for rapid deployment.
Supports global LoRaWAN® networks for cross-border projects.
Key Differentiators:
✔️ Combines precision sensing with 5-year battery life.
✔️ Works offline via LoRaWAN® (no cellular/data plan needed).
✔️ Seamless integration with existing IoT platforms.
