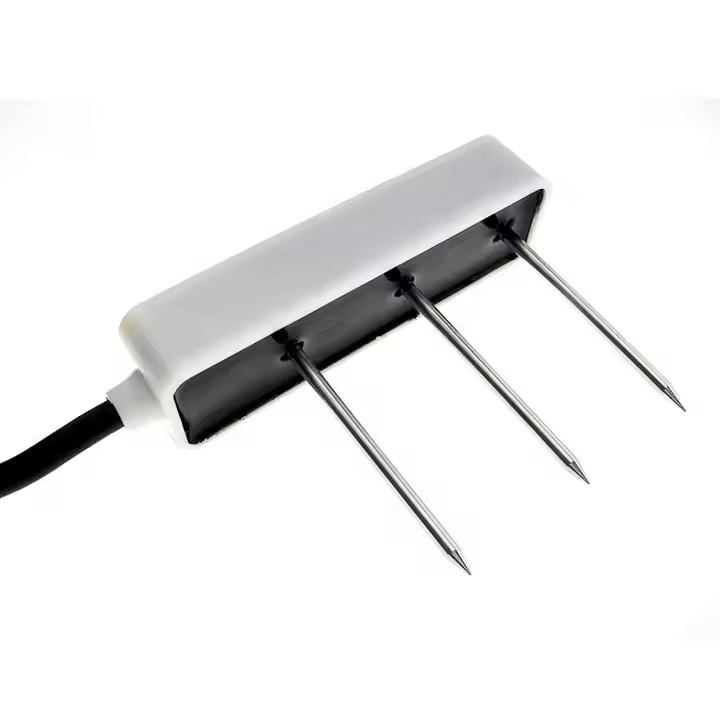

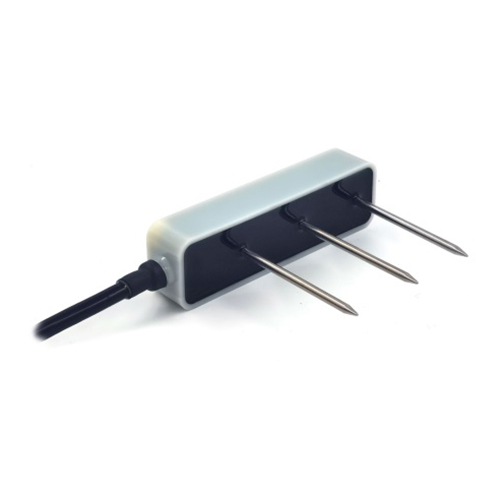

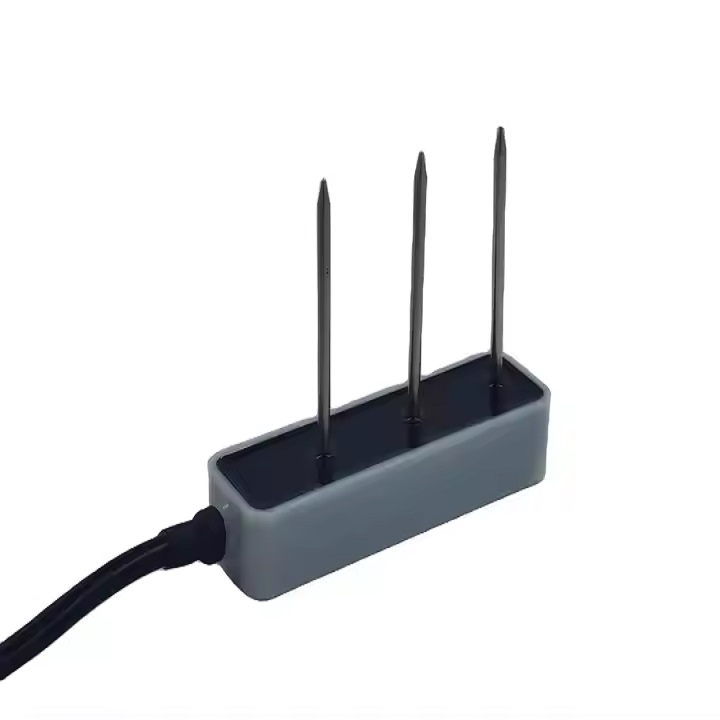

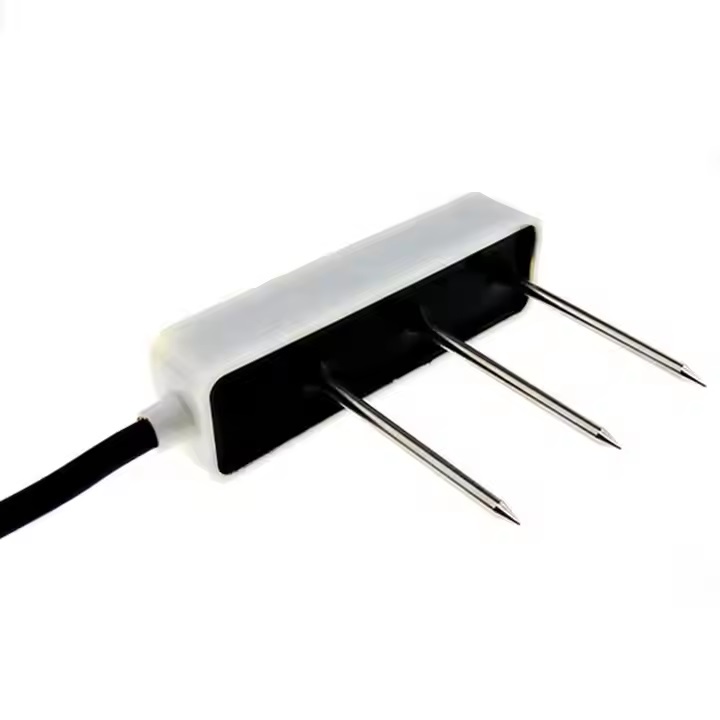

BGT-SEC(Z2) Soil Temp Moisture EC Sensor

BGT-SEC(Z2) Soil Temp Moisture EC Sensor

It is a sensor with SDI-12 interface, measuring soil moisture content, temperature and EC, or soil moisture content and temperature regarding the order information. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability., The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.

Availability:



Inquire

◀◀ Key Selling Points ▶▶

1. All-in-One Soil Monitoring

- BGT-SEZ(Z2) soil sensor specifically optimized for cocoa, coconut coir, and other substrate-based cultivation systems. This precision instrument is ideal for environmental monitoring in high-value crop production, including cannabis cultivatio. soil moisture EC sensor-bgt

- High precision: ±0.5°C temperature accuracy, ±0.1% moisture resolution, and 5% EC accuracy (0–7 ds/m).

- Measures soil moisture, temperature, and electrical conductivity (EC) in a single device, eliminating the need for multiple sensors.

2. Robust & Weatherproof Design

- IP68 waterproof rating allows direct burial in soil, ideal for harsh environments (-40°C to 85°C).

- Epoxy resin sealing ensures long-term stability and resistance to corrosion, salts, and static damage.

3. Seamless Integration

- SDI-12 output (V1.3) compatible with Teros 12 systems for easy adoption into existing agricultural IoT networks.

- Supports ADI protocol (TTL) for flexible data logging and real-time monitoring.

- The sensor features an SDI-12 output interface with a unique 3.5mm headphone jack form factor, combining industry-standard communication protocols with user-friendly connectivity.

4. Low Power & High Efficiency

- Ultra-low quiescent current (30μA) and short measurement bursts (10mA for 150ms) extend battery life.

- Reverse power protection and built-in TVS/ESD protection safeguard against electrical faults.

5. User-Friendly Installation

- Sharp, durable rods for easy insertion into soil (surface or buried).

- Customizable cable lengths (5m standard) and formulas for **VWC/EC calculations** across substrates.

◆◆ Key Features:

Triple Threat: Moisture, Temp, EC in one rugged sensor.
Built for Extremes: IP68-rated, survives -40°C to 85°C.
Plug & Play: SDI-12/Teros 12 compatibility.
Energy-Saving: 30μA standby, 10mA active.
Precision Farming: Formulas for soil/non-soil substrates.

◀◀ Application Scenarios ▶▶

1. Precision Cannabis Cultivation
• Medical & Recreational Grow Operations – Monitor substrate moisture and EC levels in real-time to optimize irrigation and nutrient delivery for maximum cannabinoid production.
• Automated Greenhouse Systems – Integrate with SDI-12 controllers to enable data-driven irrigation schedules, reducing water waste while preventing over/under-watering.
2. High-Value Crop Production
• Cocoa & Coconut Coir Nurseries – Ensure ideal moisture retention in organic substrates during critical growth phases.
• Hydroponic & Vertical Farms – Fine-tune water content in soilless media (e.g., coco coir, peat blends) to enhance yield consistency.
3. Research & Controlled Environment Agriculture (CEA)

• University Trials – soil EC moisture data-BGT Study substrate-water dynamics in cocoa or cannabis with standardized SDI-12 data logging.

•Pharmaceutical-Grade Cultivation – Maintain audit-ready environmental records for compliance in regulated markets.

4. Plug-and-Play Deployment

•Retrofit Existing Systems – The 3.5mm jack interface allows quick installation in legacy monitoring setups without rewiring.

•Mobile Field Testing – Portable SDI-12 readers (e.g., handheld meters) can connect via the headphone jack for spot-checking substrate conditions.

◆◆ One Sensor, Three Critical Metrics

The BGT-SEC(Z2) Soil Sensor is your ultimate tool for mastering soil health. Measure moisture, temperature, and EC in real time with lab-grade accuracy – perfect for optimizing irrigation, preventing salt buildup, and boosting crop yields.

◆◆ Integrate Effortlessly, Scale Confidently

Compatible with Teros 12 systems and SDI-12 networks, this sensor slots seamlessly into existing setups. Use ADI protocol for instant data streaming or customize formulas for substrates like peat moss and perlite.

◆◆Economic Benefit & Substrate Compatibility

Our sensor is designed to help you significantly reduce water and nutrient waste while optimizing crop growth. It is fully compatible with both non-soil substrates (e.g., rockwool, coco coir) and mineral soils, providing accurate real-time data to support irrigation decisions and increase yield predictability.

◆◆ Install in Minutes, Benefit for Seasons

Durable stainless-steel rods penetrate tough soils effortlessly. Bury it horizontally or vertically – your choice!

Click here to get a quote or our client cases!

You are here: Home / Products / Meteorological Monitoring / Soil Sensors / BGT-SEC(Z2) Soil Temp Moisture EC Sensor

Output Interface	SDI-12, V1.3
Power Supply	3.6-16V/DC
Power Consumption	Quiescent Current : 30uA Measuring Current : 10mA during 150ms measurement
Soil Moisture Measurement	Apparent dielectric permittivity (x_a): Range:1-81 (air - water) Resolution:1.00-40.00:±0.1,40.00-81.00:±0.5 Accuracy:1.00-40.00:±2%,40.00-81.00:±5% Soil Moisture(VWC): Range:0%-100% (air - water) Resolution:derived by the conversion function from epsilon to VWC Accuracy:derived by the conversion function from epsilon to VWC
EC Measurement	Range: 0-23ds/m Resolution: 0-7ds/m, 0.01ds/m; 7-23ds/m, 0.05ds/m Accuracy: 0-7ds/m, 5%; 7-23ds/m,15% EC temperature compensation: 0-50°C
Temperature Measurement	Range: -40~80°C, Resolution:0.1°C, Accuracy:±0.5°C
Measurement Technique	Moisture by FDR and EC by AC excitation
IP Ratings	IP68
Operating Temperature	-40~85°C
Sensor Rod	Stainless steel
Sensor Sealed	Epoxy resin
Installation	Surface or buried installation
Cable Length	5 meters or Customize
Dimension	887126mm
