BGT4410 Cable Strain Gauge High-precision Strain Monitoring for Steel Cables
BGT4410 Cable Strain Gauge High-precision Strain Monitoring for Steel Cables BGT4410 Cable Strain Gauge High-precision Strain Monitoring for Steel Cables

loading

BGT4410 Cable Strain Gauge High-precision Strain Monitoring for Steel Cables

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

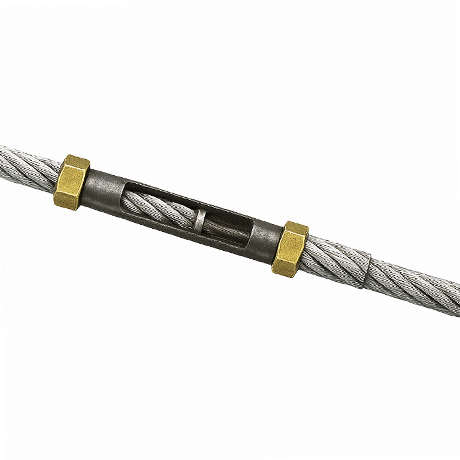

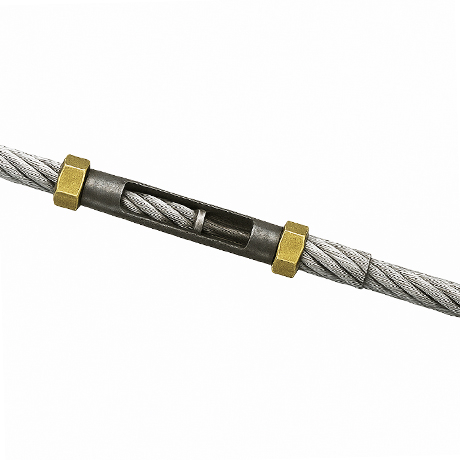

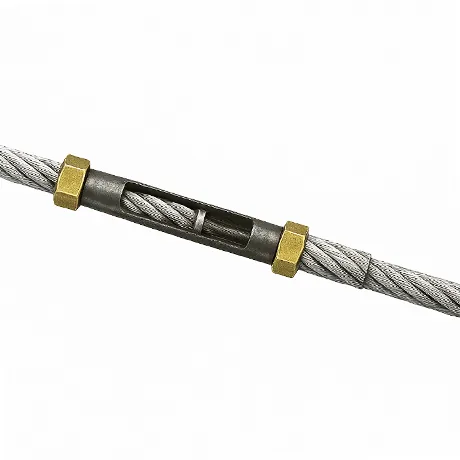

The cable gauge is used to monitor the strain of the cable. The locking blocks (clamps) at both ends firmly fix it to the cable. The force changes of the cable are determined by measuring the deformation of the cable and the known elastic modulus of the cable. Locking blocks of various diameters can be provided according to the user's requirements.
Availability:
Inquire


◀◀  Key Selling Points  ▶▶


  1. Secure Clamping Mechanism

    • Adjustable clamping blocks securely attach to cables of various diameters, ensuring reliable strain transmission.

  2. High Precision

    • 0.01% FS resolution and ≤0.1% FS non-linearity (polynomial calibration) for accurate force change detection.

  3. Wide Measurement Range

    • Selectable ranges: 20,000 με or 50,000 με to suit different load requirements.

  4. Robust Design

    • Operates in -20°C to +80°C, ideal for harsh outdoor or industrial environments.

  5. Customizable Compatibility

    • Clamping blocks tailored to specific cable diameters (on request).




◀◀  Product Parameters  ▶▶


Parameter Specification
Model BGT4410 Cable Strain Gauge
Measurement Range 20,000 με or 50,000 με (selectable)
Resolution 0.01% FS
Non-linearity ≤0.5% FS (linear)
≤0.1% FS (polynomial)
Temperature Range -20°C to +80°C
Length ~250 mm (varies with cable diameter)
Clamping Diameter Customizable (user-defined)








◀◀  Application Scenarios  ▶▶


  1. Bridge Cable Monitoring

    • Track real-time tension changes in suspension bridge cables to prevent overloading.

  2. Cableway Safety

    • Monitor strain in aerial tramways or ski lift cables for maintenance alerts.

  3. Heavy Machinery

    • Install on crane cables to ensure safe load limits during operations.

  4. Marine Structures

    • Measure stress in mooring cables for offshore platforms or docks.

  5. Construction Engineering

    • Assess tension in temporary support cables during building projects.
