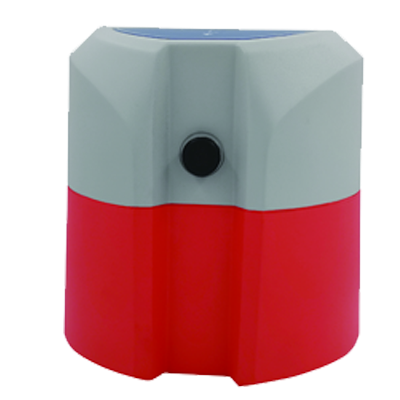

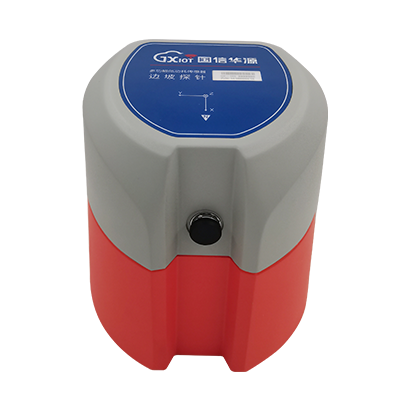

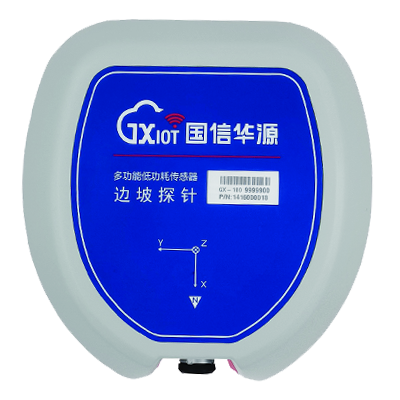

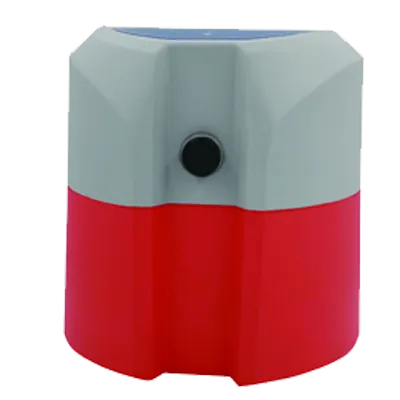

Geological disaster slope probe - acceleration sensor

The Slope Probe - Inclinometer is a high-performance, multi-functional IoT sensor designed for monitoring surface deformation and geological hazards. With its all-in-one integration, ultra-low power consumption, and smart adaptive technology, it provides real-time data on tilt, acceleration, and displacement—helping prevent disasters before they happen.
Paired with smart gateways, GNSS deformation measurement, alarm systems, and IoT platforms, it forms a self-powered, self-monitoring, self-analyzing, and self-alerting closed-loop system. Perfect for large-scale geological hazard monitoring and early warning systems!

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

High integration: It integrates inclinometer, accelerometer (dynamics), and crack meter, and adopts adaptive logic to promptly capture on-site changes, save power, and extend service life

Adaptive: It can adaptively adjust its working state according to the changes in the disaster manifestation field, adopt an adaptive encrypted collection mechanism, and fully record the deformation process.

Self-organizing network: It is equipped with a Lora communication module and, in combination with a gateway, can achieve on-site alarm, making up for the deficiency of being unable to alarm in extreme situations.

ESIM: It is equipped with a built-in China Mobile ESIM card. Meanwhile, based on the on-site communication conditions, you can also choose China Unicom or China Telecom iot cards, which have wide adaptability

Low power consumption: The battery adopts high-performance lithium battery and can work normally for 4 to 5 years

Easy to maintain: It can be uniformly managed by Guoxin Internet of Things and can be recycled by replacing the battery

◀◀ Product Parameters ▶▶

Model	GX-100 Type
Monitoring Parameters	3-axis tilt, combined tilt, azimuth angle, 3-axis acceleration
Tilt Range	X/Y/Z: ±30.0°
Combined Tilt	±30.0°
Azimuth Angle	0-360°
Acceleration Range	X/Y/Z: ±2000mg
Positioning	Supports GPS + BDS dual-system, <10m deviation
Battery Life	5+ years (built-in lithium battery)
Operating Temp.	-25°C to 85°C (extreme weather resistant)
Communication	4G (full network support) + LoRa Mesh
SIM Compatibility	Built-in eSIM, supports external SIM cards

◀◀ Application Scenarios ▶▶

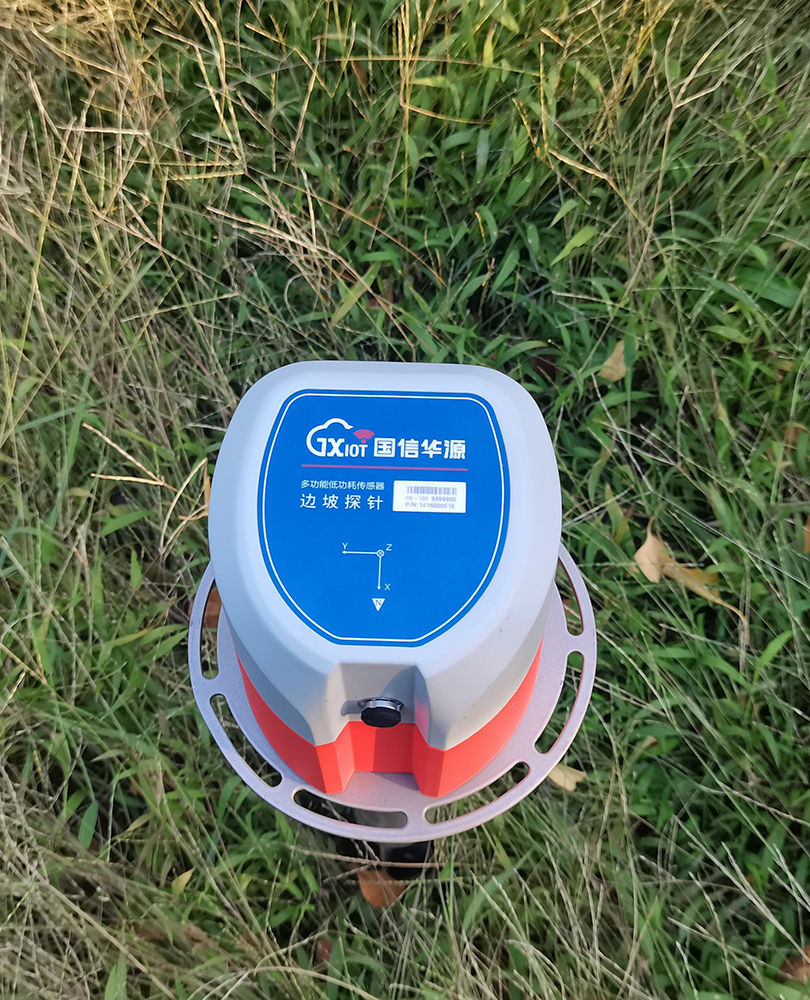

Landslide Monitoring – Early detection of slope instability in mountainous regions.

Slope Construction Safety – Monitors man-made slopes (e.g., housing developments).

⛰️ Rockfall & Collapse Warning – Deployed in cliffside and mining areas to prevent disasters.

️ Mining & Quarrying – Ensures safe operations in high-risk excavation zones.

IoT-Based Hazard Prevention – Integrates with smart gateways & cloud platforms for automated alerts & remote monitoring.

Why Choose Our Slope Probe?

✔ All-in-one design – Fewer devices, easier deployment.
✔ Self-adaptive intelligence – Smarter data, longer battery life.
✔ Reliable connectivity – Works even in remote areas.
✔ Long-term cost savings – 5-year battery life & replaceable parts.

Deploy Smarter. Monitor Better. Prevent Disasters.
