◀◀ Key Selling Points ▶▶

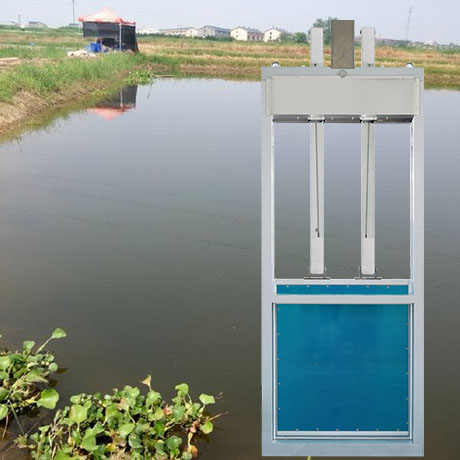

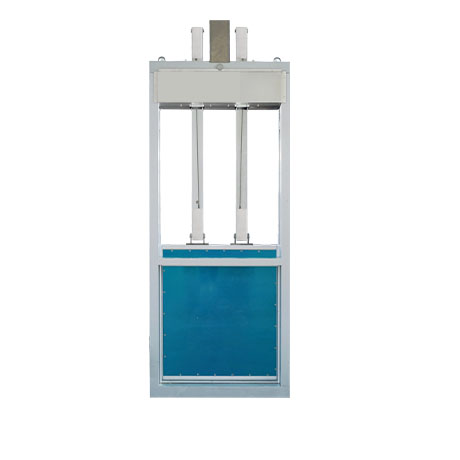

Dual lifting points for balanced operation.
High-strength aluminum alloy with surface hardening and oxidation resistance.
Cellular aluminum filler bonding for durability.
Worm gear self-locking function.
◀◀ Product Parameters ▶▶
Gate width (mm) | Standard width series: 300; 400; 500; 600; 800; 1000; 1200; 1500; 1800; 2000; 2500; 3000 |
Water baffle height (mm) | Flashboard height of standard hole series: 500; 600; 700; 1100; 1300; 1600; 2000; 2500; etc. customizable |
Flashboard stroke (mm) | 200; 300; 400; 500; 600; 800; 1000; 1200; 1500; 2000; etc. customizable |
Opening-closing speed (mm/s) | 60-180, adjustable based on load |
Position control precision | 1mm |
Opening-closing force (kN) | 8-80KN |
Working voltage (V) | 24V drive system (default); farm gate sluice (default): 12V drive system |
DC motor power (W) | For sluice gates of 1m and below: 60-120W; For sluice gates of 1.2-2.0m: 200W For sluice gates of 2.0m and above: 300W |
Solar panel (W) | Monocrystalline silicon, Grade A |
Battery (ah) | 80ah-200ah, colloidal energy storage battery for solar energy |
Motor type | DC brushed motor |
Gate position gauge type | Multi-turn absolute encoder: single-turn resolution 1024/4096/8192; number of turns 64/256/4096 |
Water level meter | Pressure input type; ultrasonic; telescoping magnetic; electronic water gauge; radar type |
Flow model supported | Stage-discharge relationship methods: basher tank; no-roar tank; water-level difference Ultrasonic time difference methods: cross multi-channel ultrasonic metering box; multi-layer ultrasonic metering box Hydraulic methods: upstream water level, gate opening, triangular weir. |
Control mode | Constant upstream water level mode Constant downstream water level mode Constant flow rate mode Opening control mode Manual control mode |
◀◀ Application Scenarios ▶▶
Medium-sized irrigation channels.
Water flow regulation in agricultural systems.
