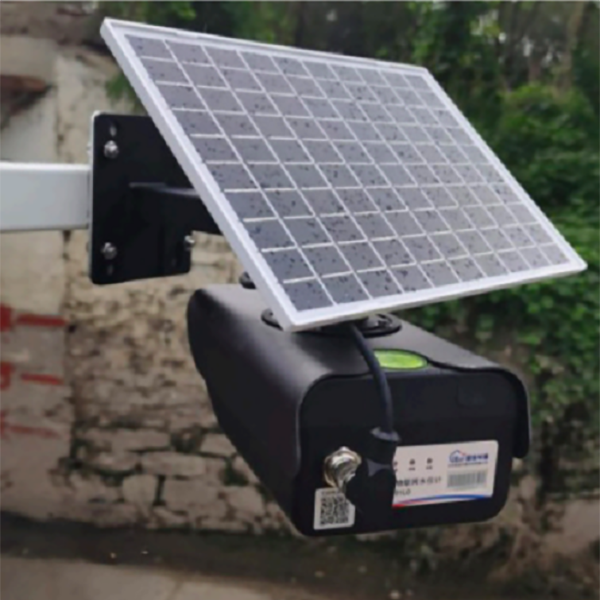

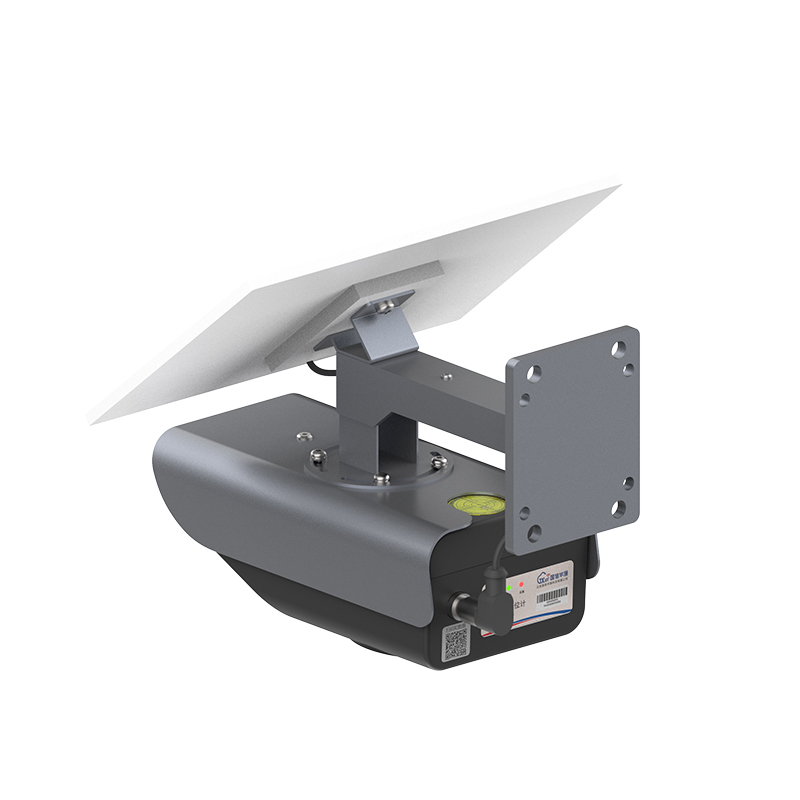

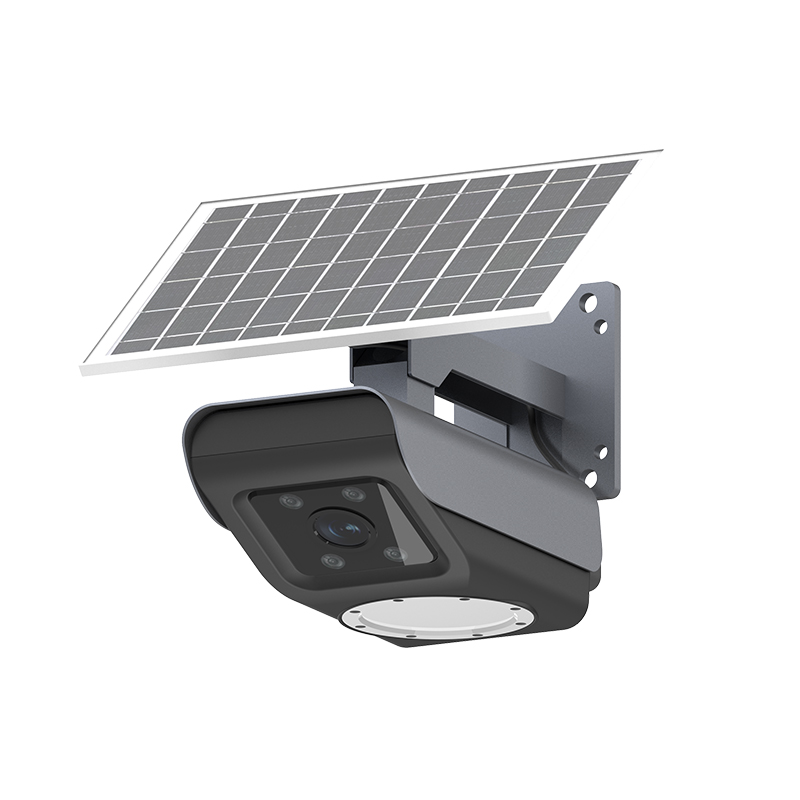

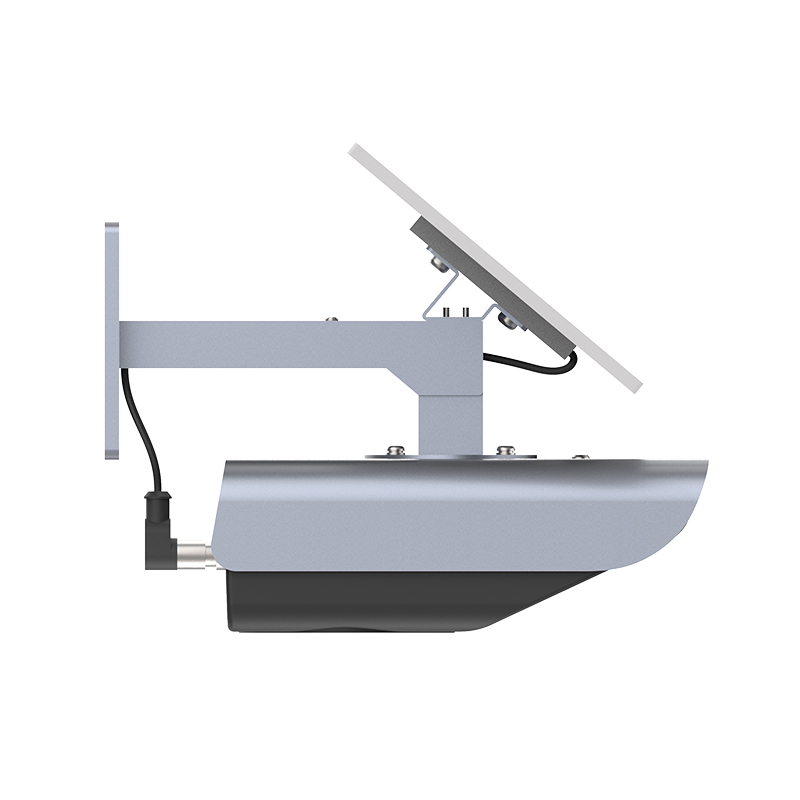

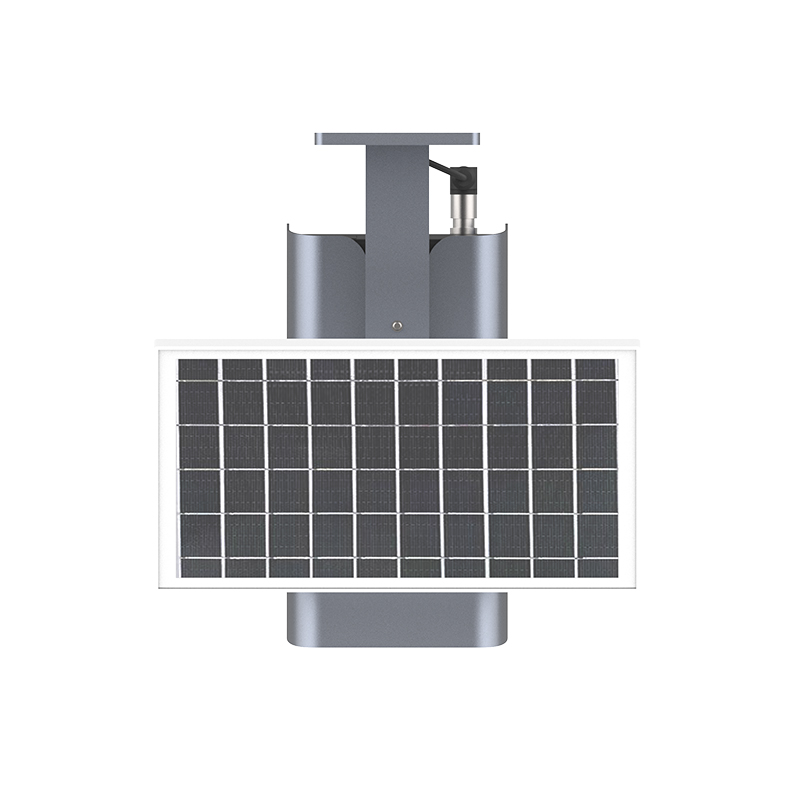

The solar-powered radar level sensor features an integrated design, integrating solar panels, a charge controller, batteries, a millimeter-wave radar water level gauge, a high-definition camera, an intelligent telemetry terminal, an ad hoc network module, and a multi-frequency, multi-mode communication antenna. It effectively meets the water level monitoring requirements for water storage in different river sections and ensuring safe flood control during the rainy season. It utilizes millimeter-wave microstrip radar technology, offering high accuracy, low power consumption, and rapid measurement, unaffected by temperature, air pressure, moisture, and water debris. It supports intelligent switching between multiple operating modes and can track the rapid rise and fall of floodwaters throughout the entire process. It also supports edge computing, enabling local audio and visual alarms, and can report data both locally and via the public network.
◀◀ Key Selling Points ▶▶
Integrated 10W solar panel with MPPT charging and 15,000mAh battery.
Operates for 30+ days even in continuous rainy conditions.
Measures water levels from 0.5m to 40m, unaffected by debris, temperature, or vapor.

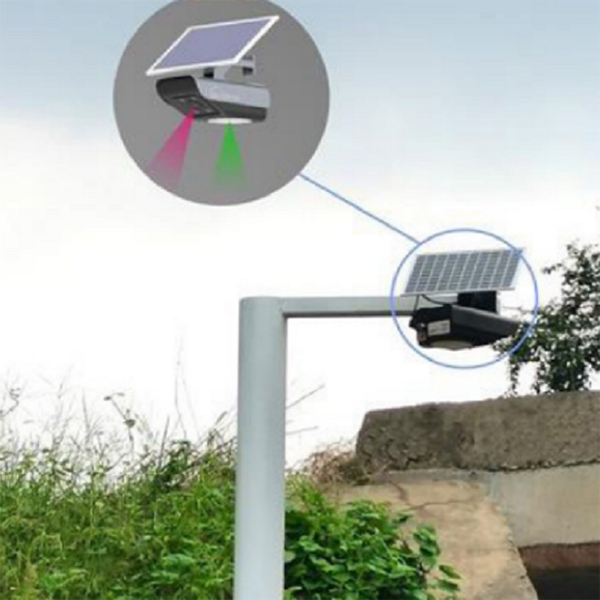

Supports split or all-in-one installation for urban rivers, reservoirs, and flood-prone areas.
HD image acquisition with water-level-linked photo reporting.
◀◀ Product Parameters ▶▶
Warranty | 1 Year |
Customized support | OEM |
Brand Name | BGT |

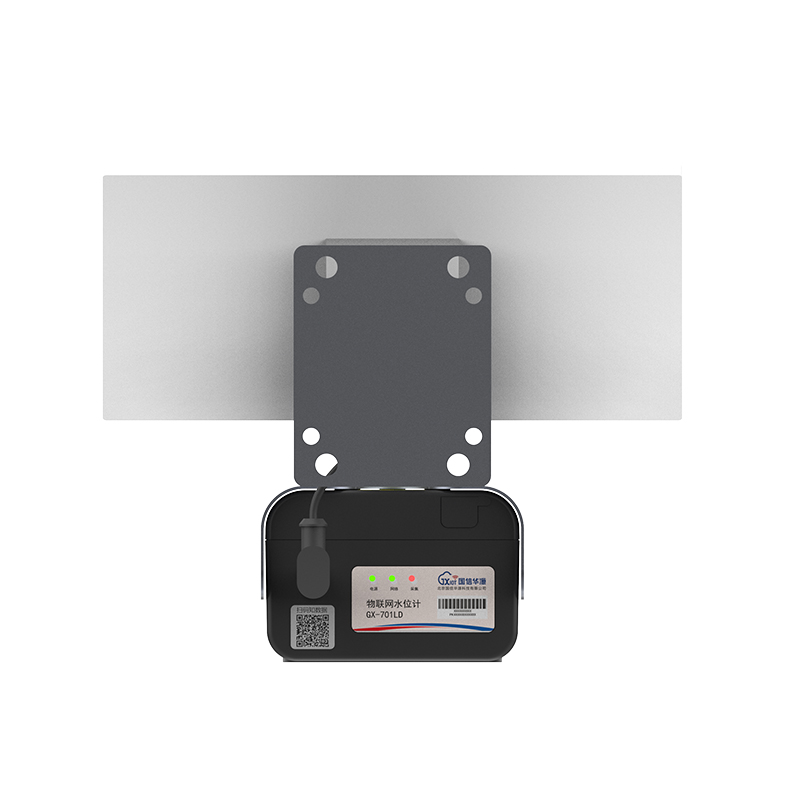

Model Number | GX-701LD |
Product Name | smart IoT radar level sensor rainfall water level monitoring |
Keywords | IoT radar level sensor |
Accuracy | ≤±5cm |
Measuring range | 0.5~40m |
Solar Panel Specifications | 5V/10W |
Battery capacity | 3.7V/15000mAh |
Application | Urban rivers, reservoir rainfall and water level monitoring |
Resolution | 1mm |
Battery life | Longer than 30 continous rainy days |
Charging method | MPPT |
Data transmission and logger | 4G/5G, support esim or sim card |
Data acquisition | water level, image,support water level linkage photo reporting |
Waterproof level | IP67 |
Technical support and questions, click here for more.
◀◀ Application Scenarios ▶▶
◆◆ Smart Water Conservancy & Flood Monitoring
Real-time Water Level Monitoring (Real-Time Water Level Monitoring): It is used to collect water level data of rivers, reservoirs and lakes to support flood control early warning.
Flash Flood Early Warning: Combine AI analysis to predict the risk of water level surge and reduce disaster losses.
Dam Safety Monitoring (Dam Safety Monitoring): 24/7 monitoring of dam water level changes to prevent dam failure accidents.
◆◆ Urban Water Management
Sewage Pipeline Monitoring: real-time monitoring of sewage levels to prevent urban waterlogging.
Wastewater Treatment Plants: Optimize water level regulation to improve treatment efficiency.
Rainwater Harvesting Systems: Smart regulation of water storage for sustainable water use.
