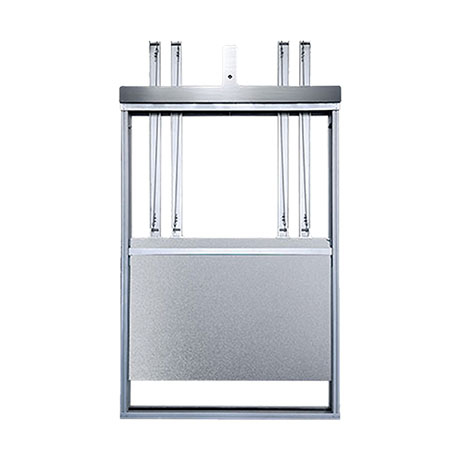

4-Lifting-Point Cable Driven Flat Sluice Gate

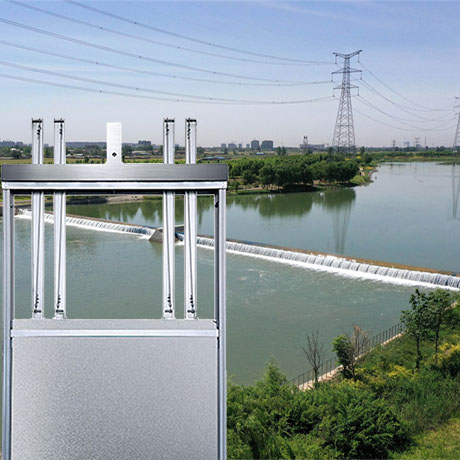

Designed for large-scale water management, this gate features a 4-point balanced cable drive system to ensure stable and reliable lifting under heavy loads. Built with high-strength T6 aluminum alloy and cellular bonding technology, it offers lightweight durability and corrosion resistance. The worm gear self-locking mechanism guarantees safety, while the cable-driven design enables ±0.5mm precision in gate positioning. Ideal for main canals and reservoirs, it supports high-precision flow control and long-term performance in demanding environments.

Availability:



Inquire

4-Lifting-Point Cable Driven Flat Sluice Gate Intelligent Sluice Gate Solar-Powered Irrigation Control Aluminum Alloy Water Gate Remote Gate Automation

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

4-point balanced drive mechanism for reliable lifting.
High-strength T6 aluminum alloy sections with customized molds.
Cellular aluminum filler bonding for lightweight and sturdy structure.
Cable drive for precise control and easy maintenance.
Worm gear self-locking function for safety.

◀◀ Product Parameters ▶▶

Gate width (mm)	Standard width series: 300; 400; 500; 600; 800; 1000; 1200; 1500; 1800; 2000; 2500; 3000
Water baffle height (mm)	Flashboard height of standard hole series: 500; 600; 700; 1100; 1300; 1600; 2000; 2500; etc. customizable
Flashboard stroke (mm)	200; 300; 400; 500; 600; 800; 1000; 1200; 1500; 2000; etc. customizable
Opening-closing speed (mm/s)	60-180, adjustable based on load
Position control precision	1mm
Opening-closing force (kN)	8-80KN
Working voltage (V)	24V drive system (default); farm gate sluice (default): 12V drive system
DC motor power (W)	For sluice gates of 1m and below: 60-120W; For sluice gates of 1.2-2.0m: 200W For sluice gates of 2.0m and above: 300W
Solar panel (W)	Monocrystalline silicon, Grade A
Battery (ah)	80ah-200ah, colloidal energy storage battery for solar energy
Motor type	DC brushed motor
Gate position gauge type	Multi-turn absolute encoder: single-turn resolution 1024/4096/8192; number of turns 64/256/4096
Water level meter	Pressure input type; ultrasonic; telescoping magnetic; electronic water gauge; radar type
Flow model supported	Stage-discharge relationship methods: basher tank; no-roar tank; water-level difference Ultrasonic time difference methods: cross multi-channel ultrasonic metering box; multi-layer ultrasonic metering box Hydraulic methods: upstream water level, gate opening, triangular weir.
Control mode	Constant upstream water level mode Constant downstream water level mode Constant flow rate mode Opening control mode Manual control mode
