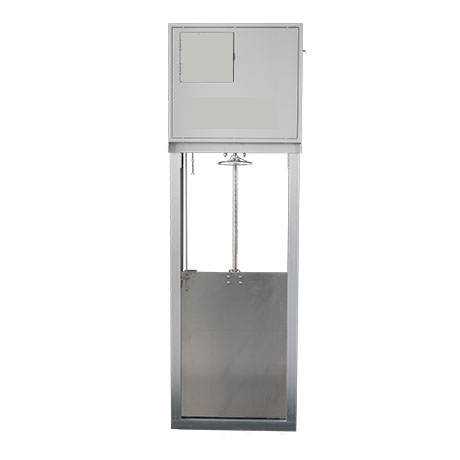

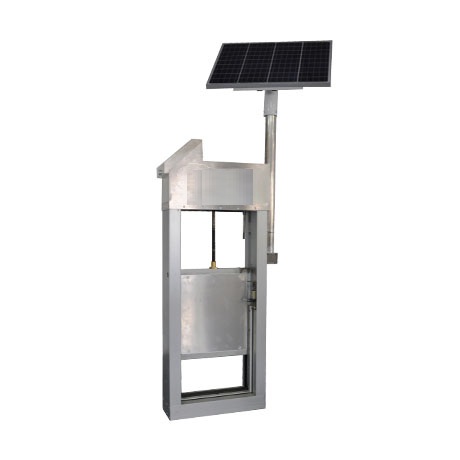

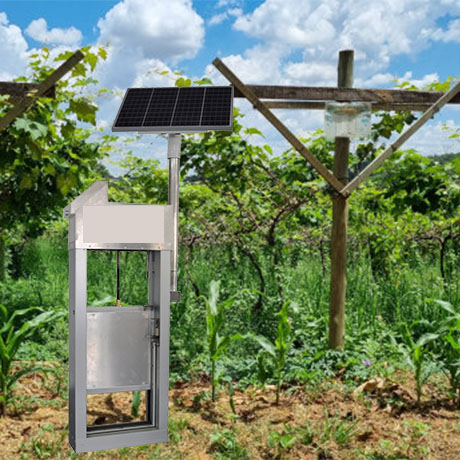

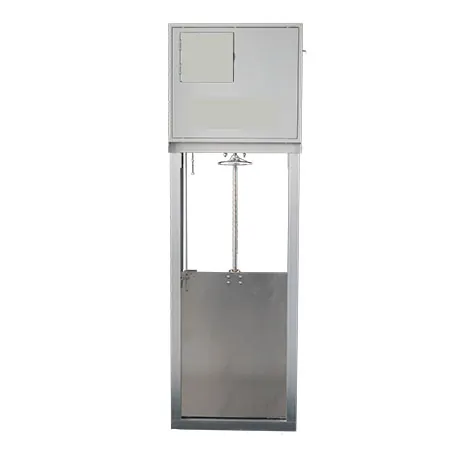

Solar-powered integrated rice field irrigation and drainage gate

Solar-powered integrated rice field irrigation and drainage gate

According to the rice field water level monitored by the rice field water level meter, the gate is logically controlled through the rice field irrigation and drainage model to achieve scientific irrigation and drainage, and realize scientific planting of "waterlogging can be drained and drought can be irrigated". The intelligent integrated solar irrigation and drainage gate combines advanced sensor technology to automatically adjust the opening height of the gate by monitoring multiple parameters such as the gate opening degree, the flow rate passing through the gate, and the water level behind the gate. This not only enables precise control of water volume but also allows for intelligent adjustment based on actual needs, ensuring that the irrigation effect reaches the best state. The innovative automatic adjustment function enables the intelligent irrigation and drainage gate to operate efficiently in various application scenarios.

Availability:

◀◀ Key Selling Points ▶▶

Solar-Powered Efficiency
Harness sunlight for 24/7 operation! Built-in high-efficiency monocrystalline solar panels and 200Ah gel batteries ensure uninterrupted power, even in cloudy weather.
Precision Water Management
Automatically adjusts water levels (±2mm accuracy) via integrated sensors and IoT-enabled controls. Perfect for maintaining optimal rice growth conditions.
Remote Monitoring & Control
Manage irrigation/drainage via mobile app or web platform. Receive real-time alerts for water levels, gate status, and system faults.
Durable & Weatherproof
IP68-rated aluminum alloy body withstands floods, corrosion, and extreme temperatures (-40°C to 85°C). Ideal for harsh outdoor environments.
Easy Installation
Modular design with plug-and-play components. No complex wiring—ideal for remote or off-grid farmlands.
Eco-Friendly & Cost-Saving
Cut electricity bills and carbon footprints! Zero emissions, low maintenance, and a 10-year lifespan.

Home / Products / Hydrological Monitoring / Liquid Level Sensors / Solar-powered integrated rice field irrigation and drainage gate

Gate width (mm)	Standard width series: 300; 400; 500; 600; 800; 1000; 1200; 1500; 1800; 2000; 2500; 3000
Water baffle height (mm)	Flashboard height of standard hole series: 500; 600; 700; 1100; 1300; 1600; 2000; 2500; etc. customizable
Flashboard stroke (mm)	200; 300; 400; 500; 600; 800; 1000; 1200; 1500; 2000; etc. customizable
Opening-closing speed (mm/s)	60-180, adjustable based on load
Position control precision	1mm
Opening-closing force (kN)	8-80KN
Working voltage (V)	24V drive system (default); farm gate sluice (default): 12V drive system
DC motor power (W)	For sluice gates of 1m and below: 60-120W; For sluice gates of 1.2-2.0m: 200W For sluice gates of 2.0m and above: 300W
Solar panel (W)	Monocrystalline silicon, Grade A
Battery (ah)	80ah-200ah, colloidal energy storage battery for solar energy
Motor type	DC brushed motor
Gate position gauge type	Multi-turn absolute encoder: single-turn resolution 1024/4096/8192; number of turns 64/256/4096
Water level meter	Pressure input type; ultrasonic; telescoping magnetic; electronic water gauge; radar type
Flow model supported	Stage-discharge relationship methods: basher tank; no-roar tank; water-level difference Ultrasonic time difference methods: cross multi-channel ultrasonic metering box; multi-layer ultrasonic metering box Hydraulic methods: upstream water level, gate opening, triangular weir.
Control mode	Constant upstream water level mode Constant downstream water level mode Constant flow rate mode Opening control mode Manual control mode
