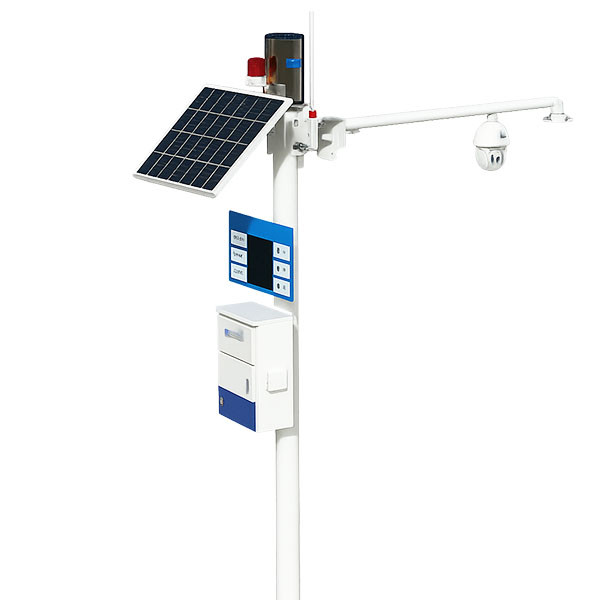

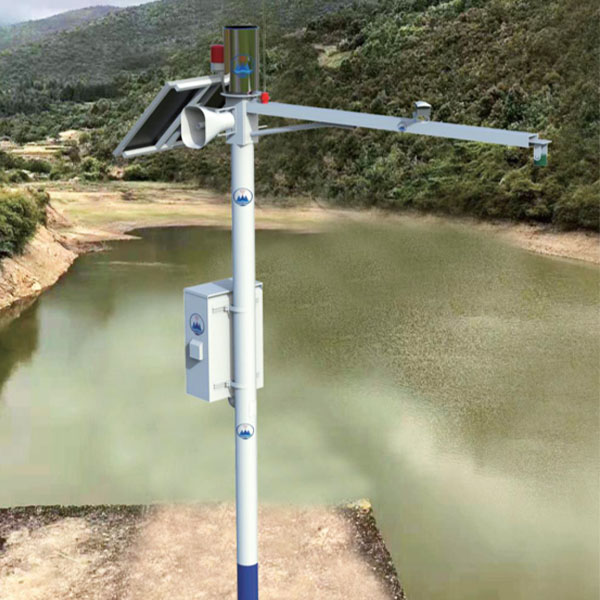

Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods

The On-Site Acoustic-Optical Monitoring and Alarm Station integrates traditional monitoring stations with acoustic-optical alarm functions. It provides real-time monitoring of rainfall and water levels in small watersheds, triggering automatic alarms (voice, flashing lights, etc.) when thresholds are exceeded. The system supports multi-channel data transmission (Ethernet, 4G, BeiDou, LoRaMesh) and features intelligent voice response, enabling precise early warnings via cloud-based alerts.

Availability:



Inquire

Flash Flood Warning Flash Flood Early Warning System flash flood Alarm Flash Flood Warning device Flash Flood Warning price

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

Real-Time Monitoring & Alarm

Measures rainfall, water level, and flow velocity with high precision.
Automatically triggers audible (siren) and visual (flashing lights) alarms when thresholds are exceeded.

Multi-Channel Data Transmission

Supports Ethernet, 4G, BeiDou, LoRaMesh for reliable communication.

Intelligent Voice Response

Pre-configured multi-level alert escalation via cloud-based warning apps.

Multi-Station Linkage

Upstream alarms trigger simultaneous downstream alerts for coordinated evacuation.

Flexible Power Supply

Solar-powered, battery-backed, or AC-powered (optional) for resilience.

Remote Management

Supports remote configuration, OTA updates, and real-time status monitoring.

◀◀ Product Parameters ▶▶

Main Control Unit

Parameter	Specification
Working Voltage	DC 9~24V
Standby Power Consumption	≤10mA
Compliance	SL651-2014 (Hydrological Monitoring Protocol)
Operating Temperature	-10°C ~ 55°C
MTBF	≥50,000 hours

Tipping Bucket Rain Gauge

Parameter	Specification
Rain Collector Diameter	Φ200±0.0mm
Resolution	0.5mm
Accuracy	≤±4%
Rainfall Intensity Range	0~4mm/min (max 8mm/min)
Material	Stainless Steel

Radar Water Level Sensor

Parameter	Specification
Range	0.1~45m
Frequency	80GHz
Accuracy	±3mm
Antenna Type	Planar Array (Beam Angle ≤8°)
Protection	IP68

Alarm Light & Speaker

Component	Specification
Alarm Light	≥1000lx (Red LED)
Speaker	2×50W (4Ω impedance)

Display & Camera

Component	Specification
LED Display	440×800mm (64×64 dot matrix)
Surveillance Camera	2MP, 23× optical zoom, H.265 encoding

Equipment List (English Table)

No.	Item	Qty	Specifications	Unit Price (USD)
1	Tipping Bucket Rain Gauge	1	Φ200mm, ±4% accuracy	~
2	Radar Water Level Sensor	1	0.1–45m, ±3mm accuracy	~
3	Main Control Unit	1	SL651-2014 compliant	~
4	Alarm Light	1	Red LED, ≥1000lx	~
5	Speaker	2	50W, 4Ω	~
6	LED Display Panel	1	440×800mm, 64×64 dot matrix	~
7	PTZ Camera	1	2MP, 23× zoom	~
8	Solar Panel	1	100W, 18V	~
9	Battery	1	12V/100Ah	~
10	Waterproof Enclosure	1	Integrated with control unit	~
11	Solar Charge Controller	1	MPPT	~
12	Lightning Arrester	1	Surge protection	~
13	Data SIM Card	1	100GB/month (3-year plan)	~
14	Mounting Pole & Brackets	1	3m height, galvanized steel	~
15	Grounding Kit	1	≤10Ω resistance	~
Total			~
