Ultrasonic Water Level Sensor
Ultrasonic Water Level Sensor Ultrasonic Water Level Sensor
Ultrasonic Water Level Sensor Ultrasonic Water Level Sensor
Ultrasonic Water Level Sensor Ultrasonic Water Level Sensor

loading

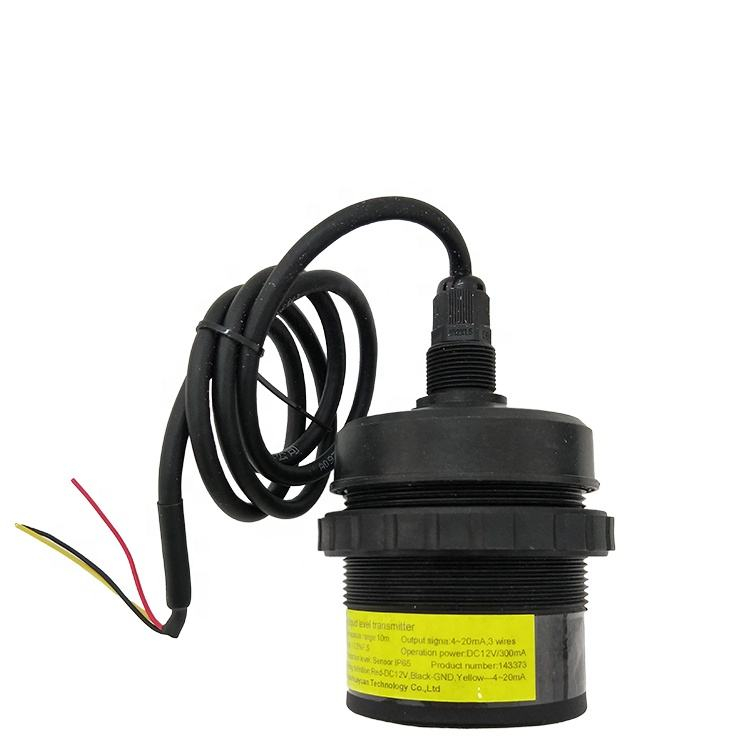

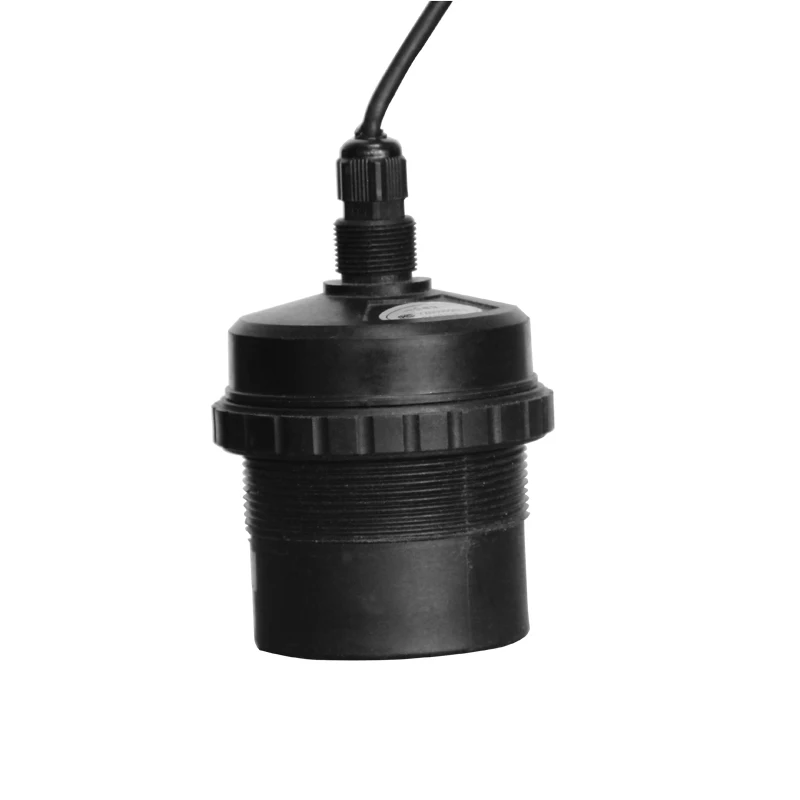

Ultrasonic Water Level Sensor

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
Ultrasonic water level sensor are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually liquid. A complete offering of materials and mounting configurations are available to meet your application needs.
Availability:
Inquire


◀◀  Key Selling Points  ▶▶


* Range of up to 30 meters

* Level or material measurement

* Good stability

* Response speed is adjustable

* Easy Installation


*Temperature Compensation

ultrasonic water level sensor ultrasonic water level sensor



◀◀  Product Parameters  ▶▶




Model No.
HTSL-ES
Range
0 ~ 5m
Blind area
≤300mm
Accuracy (in air)
±0.5%F·S (at25℃, with smooth object surface);±0.25%F·S(Customized)
Output signal
RS485 (MODBUS) / 4-20mA /0-5V
Resolution
1mm
Material
Plastic
Temperature range
-10~50℃
Beam angle
9°
Application environment
constant pressure, NOTexplosion-proof, Non erosive environment
Power supplier
DC12V/300mA
IP grade
IP66
Installation
screwM68×2.0mm，or sifter clamping
Cable length
3M






◀◀  Application Scenarios  ▶▶

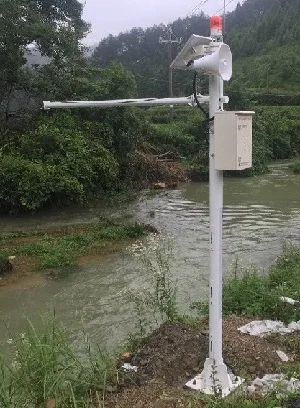

* River water level measurement

* Lake water level measurement

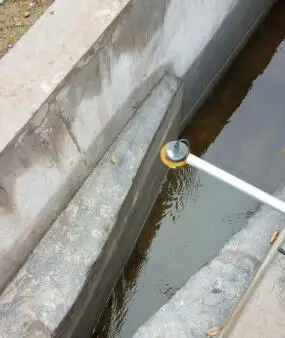

* Shallow water level measurement

* Hydrological monitoring

* Environmental protection

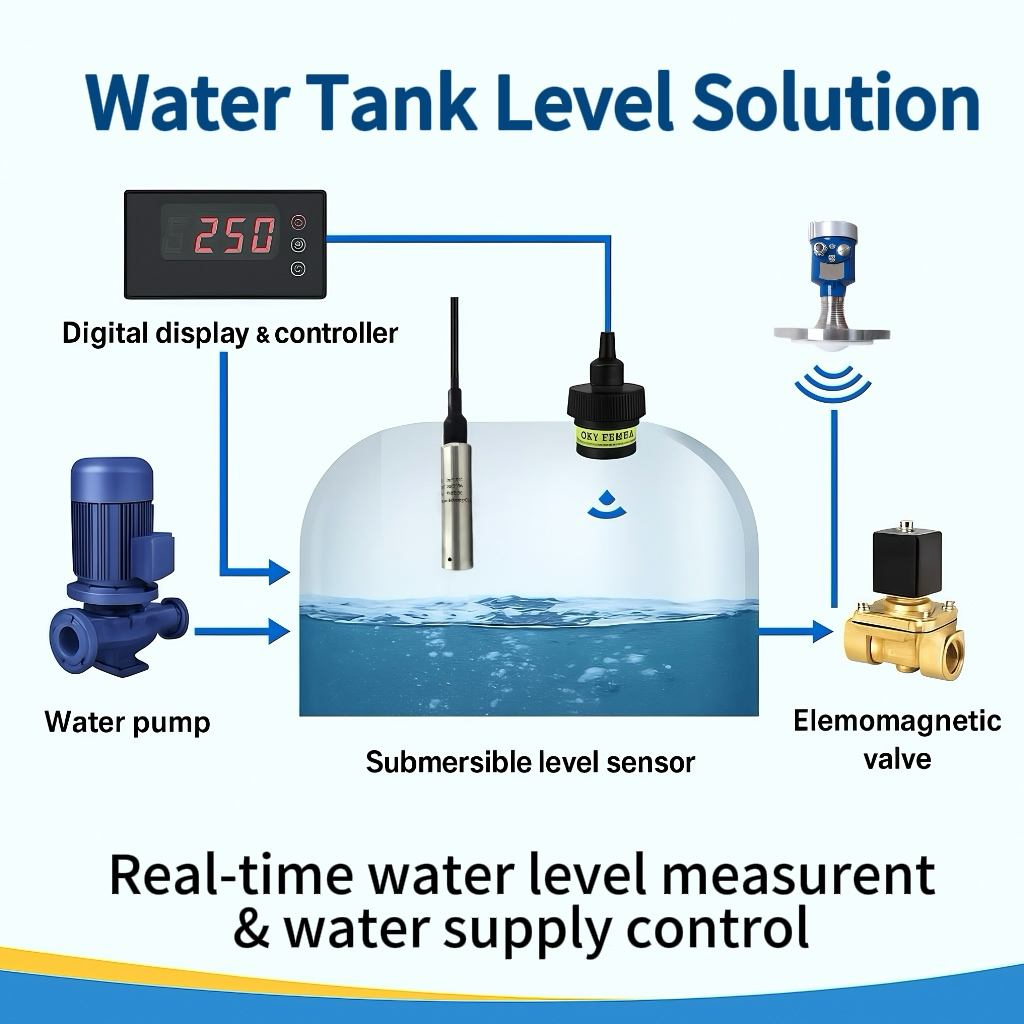

* Tank water level Monitoring



ultrasonic water level sensor ultrasonic water level sensor ultrasonic water level sensor
