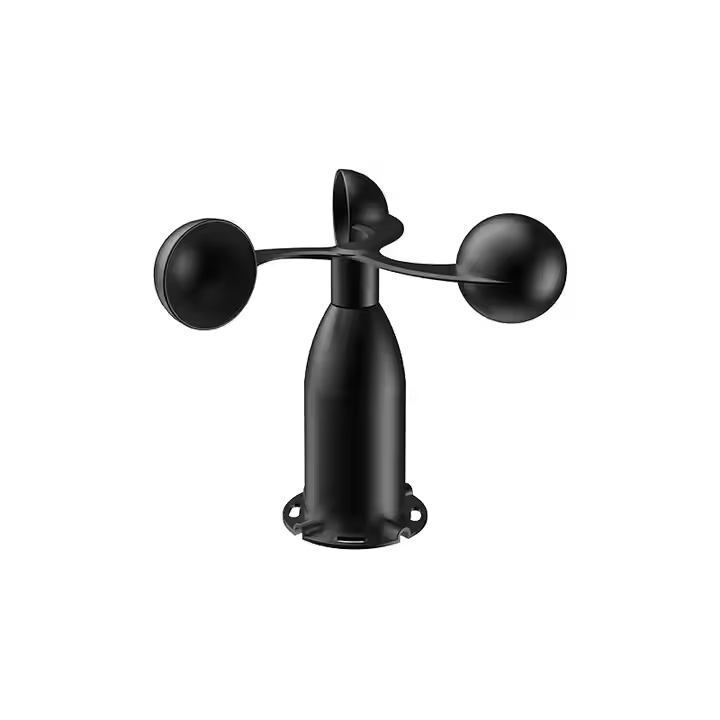

Accurate Wind Speed Monitoring BGT-FS1(O1) Wind Speed Sensor

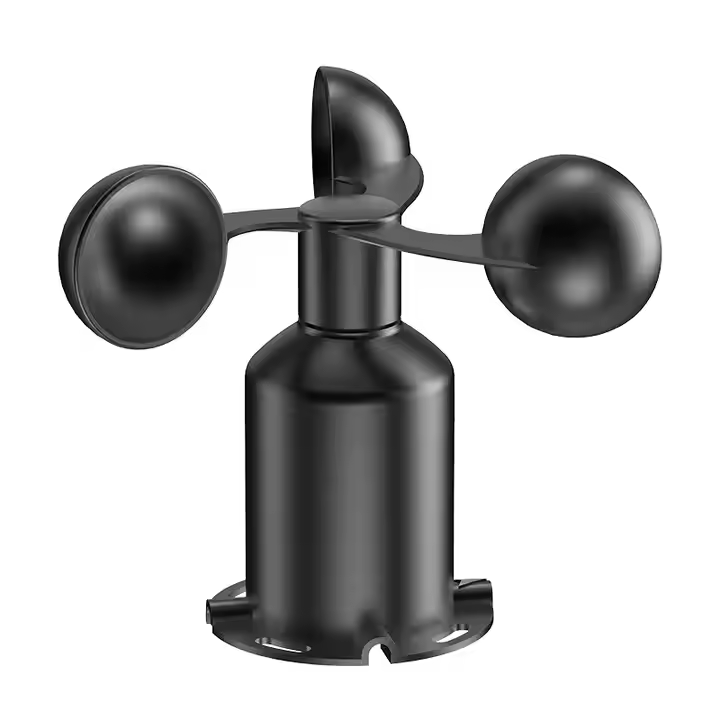

The three cup wind speed sensor is a wind speed measuring instrument independently developed and produced by our company. The sensor shell is made of aluminum material, with very small dimensional tolerances, and has high weather resistance, high strength, corrosion resistance, and waterproofing. Internally integrated photoelectric conversion mechanism, industrial microcomputer processor, standard current generator, current driver, etc.
The circuit PCB adopts military grade A-grade materials, ensuring the stability of measurement parameters and electrical performance; The electronic components are all made of imported industrial grade chips, which provide extremely reliable electromagnetic interference resistance overall, ensuring that the host can operate normally within the range of -30 ℃ to 75 ℃ and humidity of 5% to 95% RH (non condensation).
After the product upgrade, the output signals are diverse, with wired outputs including analog signals (voltage, current) and digital signals RS485; Wireless output includes: LoRa, Bluetooth, WIFI, GPRS, 4G, NB LOT, CAT-1. Except for LoRa and Bluetooth, the other four forms of wireless output can be connected to the smart cloud platform, enabling monitoring and management of intelligent terminal data.
Availability:
Quantity:
Inquire


◀◀  Key Selling Points  ▶▶

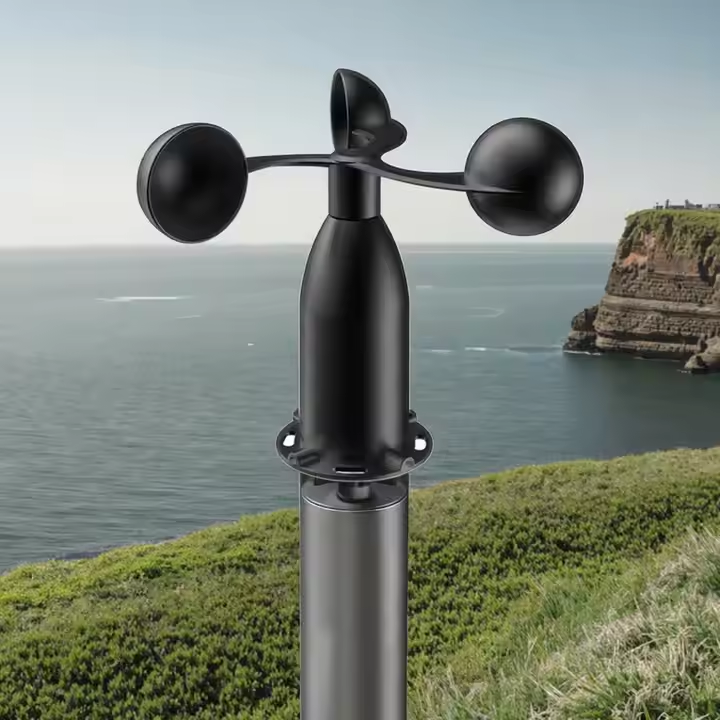

1742208355989


1. High Accuracy & Fast Response: Offers precise wind speed measurements with a fast response time (<1s) and high accuracy (±0.3 + 0.03V m/s).

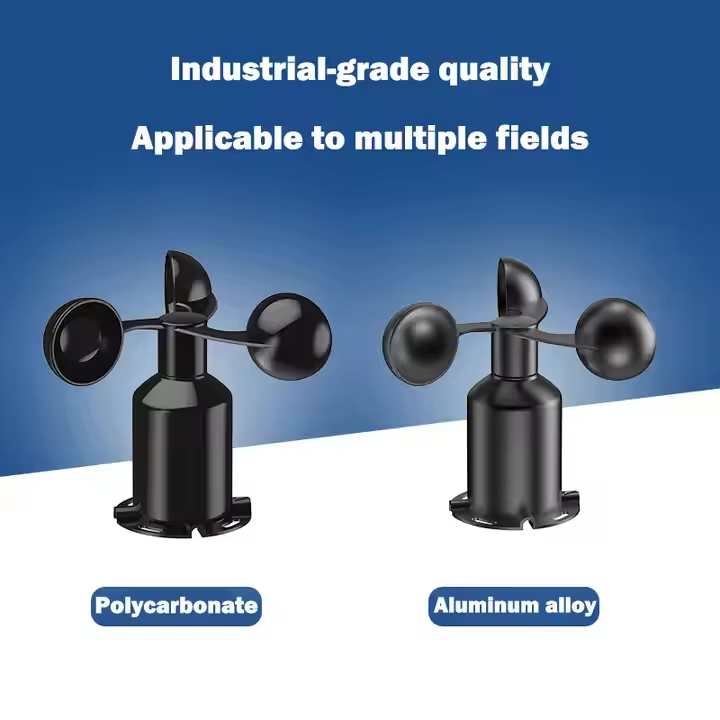

2. Durable & Weatherproof: Made of high-quality aluminum alloy, ensuring excellent weather resistance, corrosion resistance, and waterproofing.

3. Wide Measurement Range: Measures wind speeds from 0 to 60 m/s (customizable), with a low starting wind speed of ≤0.3 m/s.

4. Multiple Output Signals: Supports analog signals (voltage, current), digital signals (RS485 with Modbus-RTU protocol), and pulse signals, providing flexibility for integration into various systems.

5. Low Power Consumption: Operates on a wide voltage range (5-24V DC), making it energy-efficient and suitable for different power sources.

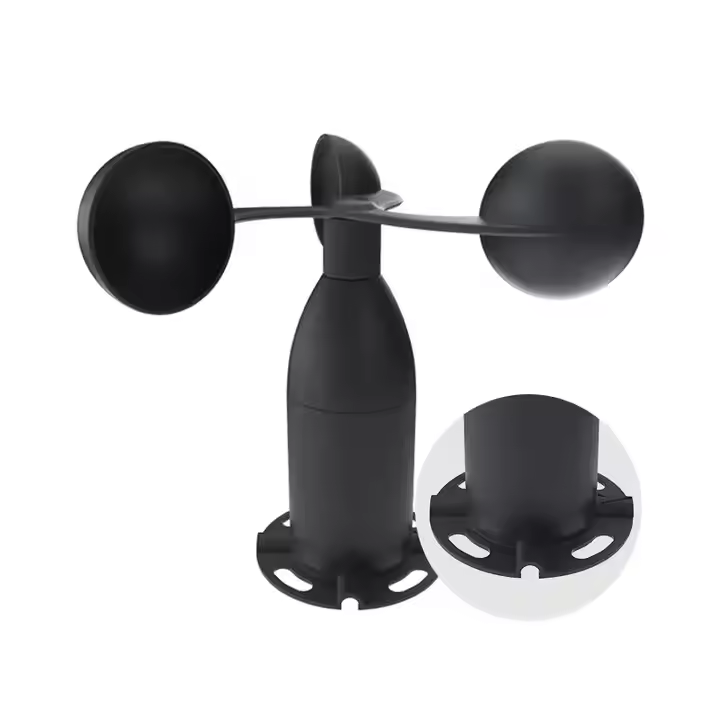

6. Easy Installation: Compact design with flange installation, allowing for lower or side outlet configurations, making installation simple and convenient.

7. Reliable Performance: Uses military-grade PCB materials and industrial-grade chips, ensuring stable performance and resistance to electromagnetic interference.

8. Customizable Options: Wind speed measurement range and cable length can be customized to meet specific needs.

9. Wide Operating Temperature Range: Works reliably in temperatures from -30°C to 70°C and humidity up to 100% RH (non-condensing).

10. Cost-Effective: Offers high performance at a low cost, making it an economical choice for various applications.


◆◆ Why Choose BGT-FS1(O1)?

  • Customizable Options: Tailor the sensor to meet your specific needs with customizable wind speed ranges and cable lengths.

  • Cost-Effective: High performance at a low cost, making it an economical choice for various applications.

  • Wide Operating Temperature Range: Reliable performance in temperatures from -30°C to 70°C and humidity up to 100% RH.




◀◀  Product Parameters  ▶▶


Measurement range 0-30m/s; 0-50m/s; 0-60m/s; (Other ranges can also be customized)
Starting wind speed ≤ 0.3m/s
Accuracy ± (0.3+0.03V) m/s
Output signal Voltage (0-2V, 0-5V, 0-10V, choose one of the three)
4-20mA (Current loop)
Pulse signal (choose either 3.3V or 5V pulse amplitude)
RS485 (standard Modbus RTU protocol, device default address: 01)
Power supply voltage 5-20V DC (when the output signal is 0-2V, RS485, pulse signal)
12-24V DC (when the output signal is 0-5V, 0-10V, 4-20mA)
Stable time <1 second
Response time <1 second
Working environment Temperature: -30 ℃~70 ℃; Humidity: ≤ 100% RH
Storage environment Temperature: -30 ℃~70 ℃; Humidity: ≤ 100% RH
Cable specification 2 meter 3-wire system (analog signal); 2 meter 4-wire system (RS485) (cable length optional)


The BGT-FS1(O1) Wind Speed Sensor is your ultimate solution for accurate and reliable wind speed monitoring. Designed with advanced technology and built to withstand harsh environments, this sensor delivers precise wind speed measurements, ensuring you have the data you need to make informed decisions. Whether you're managing a wind farm, ensuring safety on a construction site, or conducting meteorological research, the BGT-FS1(O1) is the perfect tool for the job.



◀◀  Application Scenarios  ▶▶


1. Meteorological Monitoring: Perfect for weather stations and meteorological research.

2. Renewable Energy: Optimize energy production in wind farms and solar power plants.

3. Construction & Engineering: Ensure safety on construction sites and high-rise structures.

4. Marine & Ports: Monitor wind conditions for safe operations in ports and offshore platforms.

5. Agriculture & Greenhouses: Protect crops and optimize ventilation in agricultural fields and greenhouses.

6. Environmental Monitoring: Study wind patterns and their impact on ecosystems.

7. Industrial Applications: Monitor wind conditions for safety and operational efficiency in factories and industrial facilities.

8. Aquaculture: Ensure the safety of fish farms and other aquatic systems by monitoring wind conditions.
