◀◀ Key Selling Points ▶▶
1. High Accuracy & Fast Response: Offers precise wind speed and direction measurements with a fast response time (<1s) and high accuracy (±0.3 + 0.03V m/s for wind speed, ±1° for wind direction).
2. Durable & Weatherproof: Made of polycarbonate composite material with an IP68 rating, ensuring long-term use in harsh environments without rust or corrosion.
3. Wide Measurement Range: Measures wind speeds from 0 to 60 m/s (customizable) and wind direction from 0 to 360°.
4. Low Power Consumption: Operates on a wide voltage range (5-24V DC), making it energy-efficient and suitable for various power sources.
5. Multiple Output Signals: Supports analog signals (voltage, current) and digital signals (RS485 with Modbus-RTU protocol), providing flexibility for integration into different systems.
6. Easy Installation & Maintenance: Compact, integrated design with smooth internal bearings ensures easy installation and low maintenance.
7. Anti-Electromagnetic Interference: Uses military-grade PCB materials and industrial-grade chips, ensuring reliable performance even in environments with strong electromagnetic interference.
8. Customizable Options: Wind speed measurement range and cable length can be customized to meet specific needs.
9. Wide Operating Temperature Range: Works reliably in temperatures from -30°C to 70°C and humidity up to 95% RH (non-condensing).
10. Cost-Effective: Offers high performance at a low cost, making it an economical choice for various applications.
◆◆ Why Choose BGT-FSX2(O)?
Customizable Options: Tailor the sensor to meet your specific needs with customizable wind speed ranges and cable lengths.
Cost-Effective: High performance at a low cost, making it an economical choice for various applications.
Wide Operating Temperature Range: Reliable performance in temperatures from -30°C to 70°C and humidity up to 95% RH.
◀◀ Product Parameters ▶▶
| Wind speed Measuring range | 0～30m/s；0～50m/s；0～60m/s；（measuring range can customized） |
| Wind direction measuring range | 0～360° |
| Start wind speed | ≤0.3m/s |
| Accuracy | ±（0.3＋0.03V）m/s，±1° |
| Output signal | A：Voltage（0～2V，0～5V，0～10V chose one） B: 4～20mA（current loop） C: RS485（Standard Modbus-RTU protocol，Default Device Address：01） |
| Power supply | 5～24V DC（when output:0～2V or RS485） 12～24V DC（when output 0～5V or 0～10V or 4～20mA） |
| Stable time | ＜1s |
| Response time | ＜1s (Note: Corrected from "Repnose time" to "Response time" assuming a typo) |
| Working temperature | －30℃～70℃ |
| Working humidity | ≤100%RH |
| Storage temperature | －30℃～70℃ |
| Storage humidity | ≤100%RH |
| Cable | 2m（Can customized） |

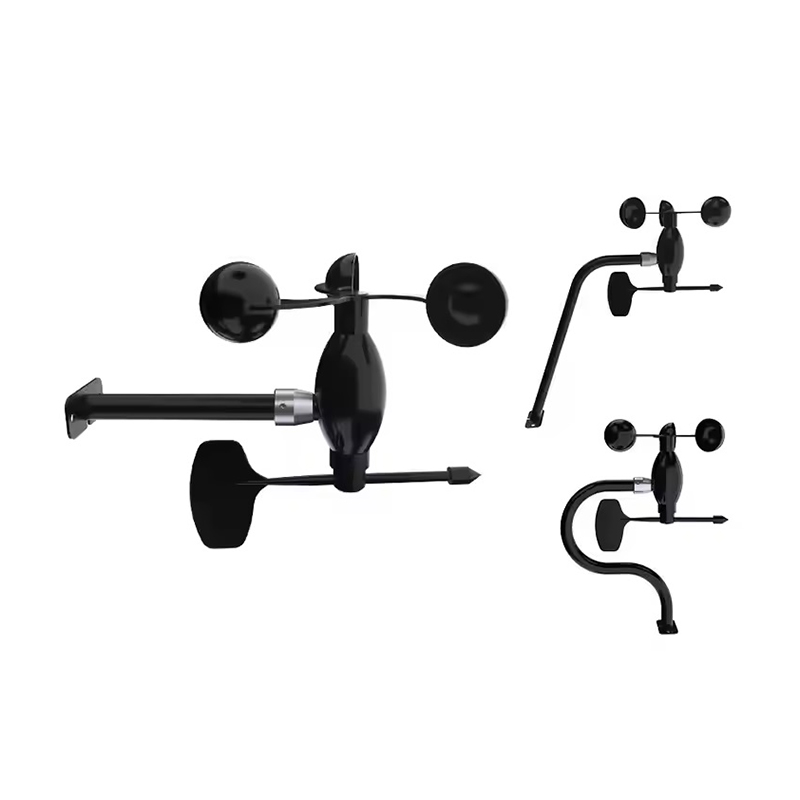

The BGT-FSX2(O) Integrated Wind Speed and Direction Sensor is your ultimate solution for accurate and reliable wind monitoring. Designed with advanced technology and built to withstand harsh environments, this sensor delivers precise measurements of wind speed and direction, ensuring you have the data you need to make informed decisions. Whether you're managing a wind farm, ensuring safety on a construction site, or conducting meteorological research, the BGT-FSX2(O) is the perfect tool for the job.
◀◀ Application Scenarios ▶▶
1. Meteorological Monitoring: Ideal for weather stations and meteorological research, providing accurate wind speed and direction data.
2. Construction & Engineering: Used in construction sites, cranes, and other high-rise structures to monitor wind conditions for safety.
3. Renewable Energy: Suitable for wind farms and solar power plants to optimize energy production based on wind conditions.
4. Marine & Ports: Used in ports, docks, and offshore platforms to monitor wind conditions for safe operations.
5. Agriculture & Greenhouses: Helps in monitoring wind conditions in agricultural fields and greenhouses to protect crops and optimize ventilation.
6. Environmental Monitoring: Used in environmental research to study wind patterns and their impact on ecosystems.
7. Railway & Transportation: Ensures safe operations by monitoring wind conditions along railway tracks and bridges.
8. Industrial Applications: Used in factories and industrial facilities to monitor wind conditions for safety and operational efficiency.
