◀◀ Key Selling Points ▶▶
Long-Range & High Performance – 10km line-of-sight, 2km urban coverage with 8 RX channels + 1 TX (27dBm).
Ultra-Low Power Support – Optimized for battery-operated LoRaWAN Class A sensors.
Multi-Network Backhaul – 4G LTE & Ethernet for flexible cloud connectivity.
️ Enterprise-Grade Security – End-to-end encryption & mutual authentication.
Industrial Durability – IP66 waterproof, -40°C to 70°C, built for harsh environments.
Global Frequency Support – EU 868 / US 915 / CN 470 MHz versions available.
⚡ Easy Deployment – Quick setup with plug-and-play provisioning.

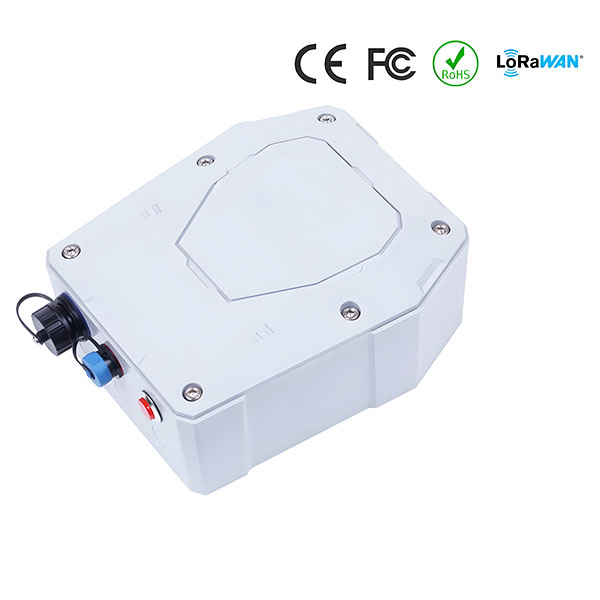

With an IP66-rated rugged enclosure and wide operating temperature (-40°C to 70°C), the gateway thrives in harsh outdoor environments. Available in EU 868MHz, US 915MHz, and CN 470MHz versions, it supports global LoRaWAN deployments.
Easy to deploy with plug-and-play setup, the Gateway is the perfect solution for scalable, low-power IoT networks.
◀◀ Product Parameters ▶▶
Feature | Specification |
|---|---|
Processor | Cortex A8 1GHz (Linux OS) |
LoRa Chip | SX1301 (8 RX, 1 TX) |
Max Transmit Power | 27dBm |
Frequency Bands | EU 868MHz / US 915MHz / CN 470MHz |
Backhaul Options | 4G LTE / Ethernet |
Coverage Range | 10km (LOS), 2km (Urban) |
Security | LoRaWAN encryption, mutual authentication |
Enclosure Rating | IP66 (Waterproof & Dustproof) |
Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
Power Supply | DC 12V/1A |
Deployment | Pole/Wall Mount, Tool-Free Setup |
◀◀ Application Scenarios ▶▶
Smart Agriculture – Soil monitoring, weather stations, livestock tracking.
️ Smart Cities – Air quality, waste management, streetlight control.
Smart Buildings – Energy monitoring, HVAC optimization, occupancy sensing.
Environmental Monitoring – Forest fire detection, water quality, wildlife tracking.
Industrial IoT – Asset tracking, equipment monitoring, predictive maintenance.
Other Wireless Sensing – Custom LoRaWAN networks for research & automation.
✔ Reliable & Scalable – Supports hundreds of sensors in a single network.
✔ Global Compliance – Available in EU/US/CN frequencies for worldwide use.
✔ Secure & Future-Proof – Enterprise-grade security with remote management.
✔ Built for Harsh Environments – Industrial-grade durability for outdoor deployments.
