◀◀ Key Selling Points ▶▶
High integration: It integrates inclinometer, accelerometer (dynamics), and crack meter, and adopts adaptive logic to promptly capture on-site changes, save power, and extend service life
Adaptive: It can adaptively adjust its working state according to the changes in the disaster manifestation field, adopt an adaptive encrypted collection mechanism, and fully record the deformation process.
Self-organizing network: It is equipped with a Lora communication module and, in combination with a gateway, can achieve on-site alarm, making up for the deficiency of being unable to alarm in extreme situations.
ESIM: It is equipped with a built-in China Mobile ESIM card. Meanwhile, based on the on-site communication conditions, you can also choose China Unicom or China Telecom iot cards, which have wide adaptability
Low power consumption: The battery adopts high-performance lithium battery and can work normally for 4 to 5 years
Easy to maintain: It can be uniformly managed by Guoxin Internet of Things and can be recycled by replacing the battery
◀◀ Product Parameters ▶▶
| Parameter | Specification |
|---|---|
| Model | GX-LS2000 |
| Reported Data | Triaxial Tilt, Composite Tilt, Azimuth Angle, Triaxial Acceleration, Crack, and other monitoring elements |
| Tilt | X: ±30.0°, Y: ±30.0°, Z: ±30.0° |
| Composite Tilt | ±30.0° |
| Azimuth Angle | 0°–360° |
| Acceleration | X: ±2000mg, Y: ±2000mg, Z: ±2000mg |
| Crack | Resolution: 0.01mm, Range: 2m |
| Positioning | Supports dual-system positioning (GPS & BDS); Positioning deviation <10m |
| Power Supply | Built-in battery with >5 years of operation |
| Operating Temperature | -25°C to +85°C |
| Communication | 4G full-network support; LoRaMesh local networking |
| SIM Card | Built-in eSIM; Supports external SIM card insertion for trial use |
◀◀ Application Scenarios ▶▶

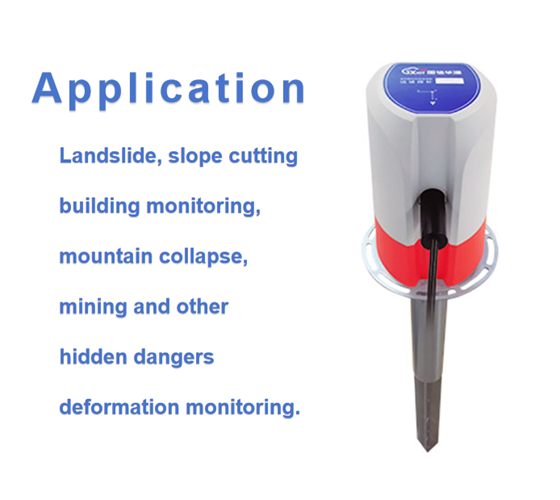

Deformation monitoring of potential hazard points such as landslides, building on slopes, mountain collapses, and mining areas.
