GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring
GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring
GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring

loading

GX-SAR1000 Ground-Based Synthetic Aperture Radar (GB-SAR) for Real-Time Slope Deformation Monitoring

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

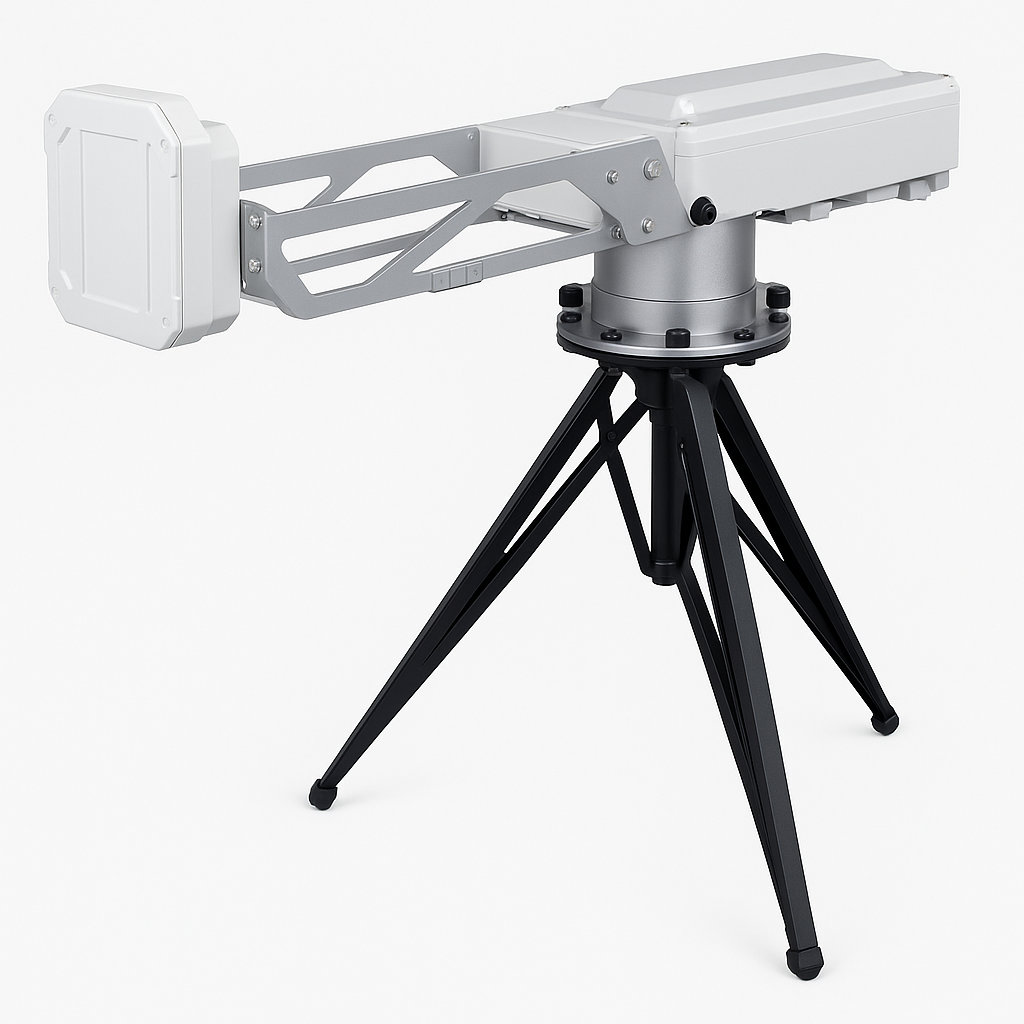

Portable 360° Slope Stability Monitoring Radar
A game-changing solution for rapid deployment in landslide emergencies and long-term slope surveillance. Combining military-grade durability with lab-level precision, this radar delivers non-contact, all-weather monitoring up to 4 km, even through rain, fog, or darkness.
Availability:
Inquire

Ground-Based Synthetic Aperture Radar (GB-SAR) Slope radar Mine safety monitoring Structural Health Monitoring (SHM) for Mining Mine Safety Management System
Key Selling Points
Product Parameters
Application Scenarios


◀◀  Key Selling Points  ▶▶


Unmatched Portability

  • Ultra-lightweight at 15 kg (33 lbs)

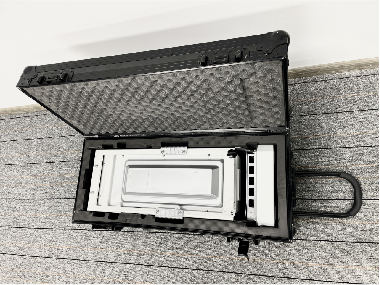

  • 2-minute setup: Foldable design fits in 0.8m³ case (airport-checkable)

  • Survives extreme conditions: -40°C to 55°C & IP65 protection

️ Smart Automation

  • Auto-calibration with built-in satellite compass & tilt sensors

  • Motorized elevation adjustment (-30° to +30°) for ±45° coverage

Surgical Precision

  • Detects 0.1 mm movements (radial)

  • 360° scanning with 0.36° angular resolution

  • 4K-worthy 3D visualization: DEM matching & slope-projected displacement

️ All-Weather Warrior

  • K-band radar penetrates rain/fog

  • No lighting required: 24/7/365 operation



◀◀  Product Parameters  ▶▶


CategorySpecification
Frequency BandK-band
Azimuth Resolution<0.36° (6 mrad)
Coverage360° horizontal ±45° vertical
Range Resolution<0.3 m
Max Detection Range≥4 km
Deformation Accuracy<0.1 mm (radial)
Scan Speed0.5–16 min/360° scan
Power Consumption≤45 W
Weight≤15 kg (with processing unit)
Dimensions (Deployed)1.13m×0.26m×0.37m
Dimensions (Folded)0.69m×0.26m×0.29m
Operating Temperature-40°C to +55°C
Protection RatingIP65






◀◀  Application Scenarios  ▶▶


Emergency Response

  • Real-time landslide monitoring during rescue operations

  • Rapid assessment of unstable slopes post-earthquake/storm

⛏️ Mining Operations

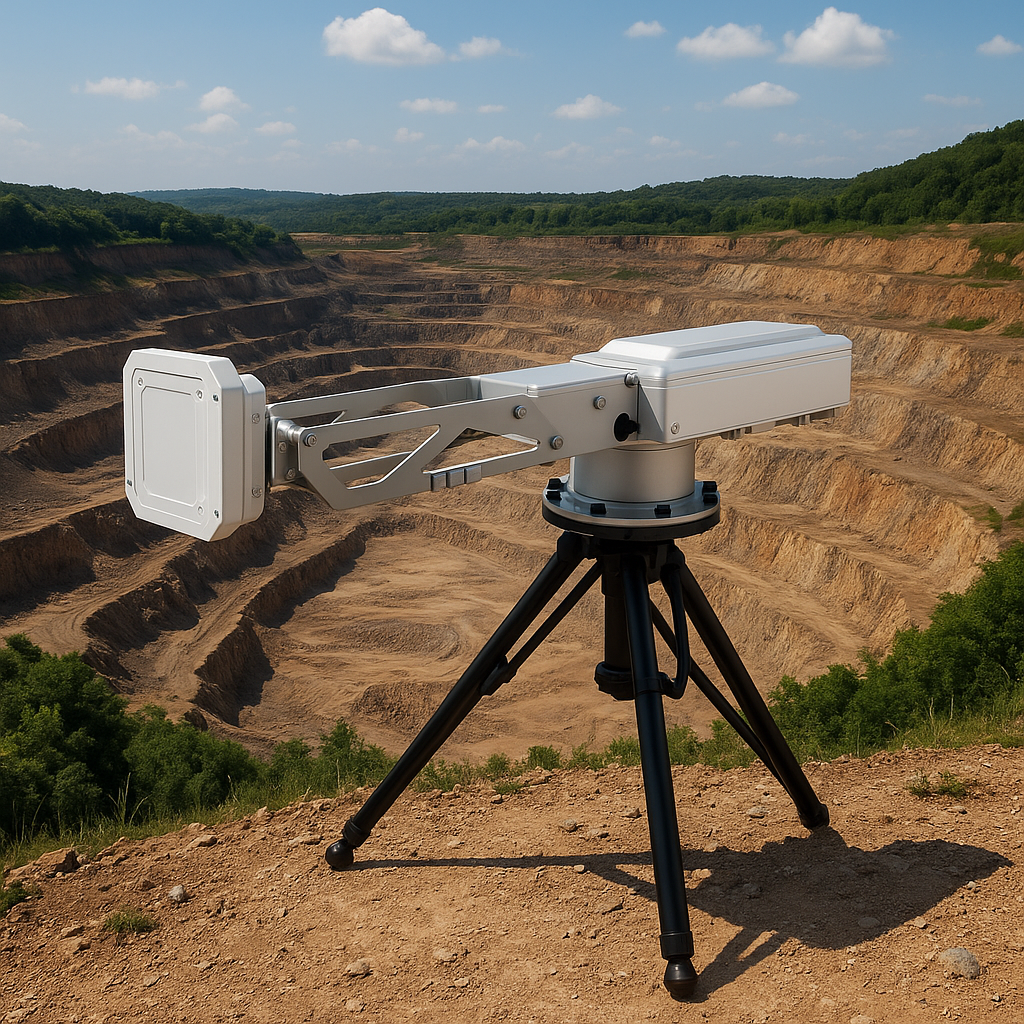

  • Pit wall stability tracking in open-pit mines

  • Early warning for haul road failures

️ Infrastructure Protection

  • Highway/railway embankment surveillance

  • Dam structural health monitoring

Geohazard Prevention

  • Volcano flank deformation analysis

  • Glacier movement tracking

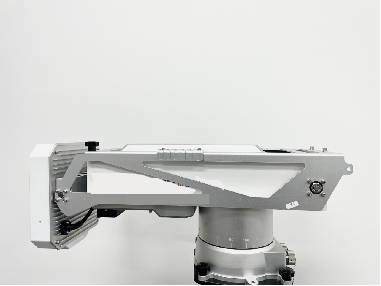

SAR RADAR11  Slope Stability Monitoring Radar
