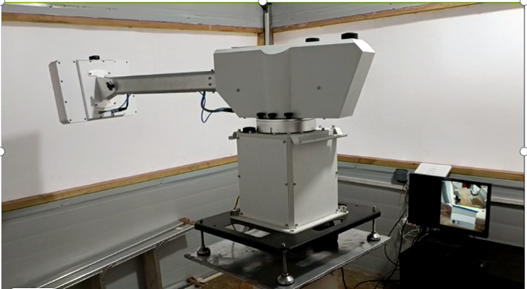

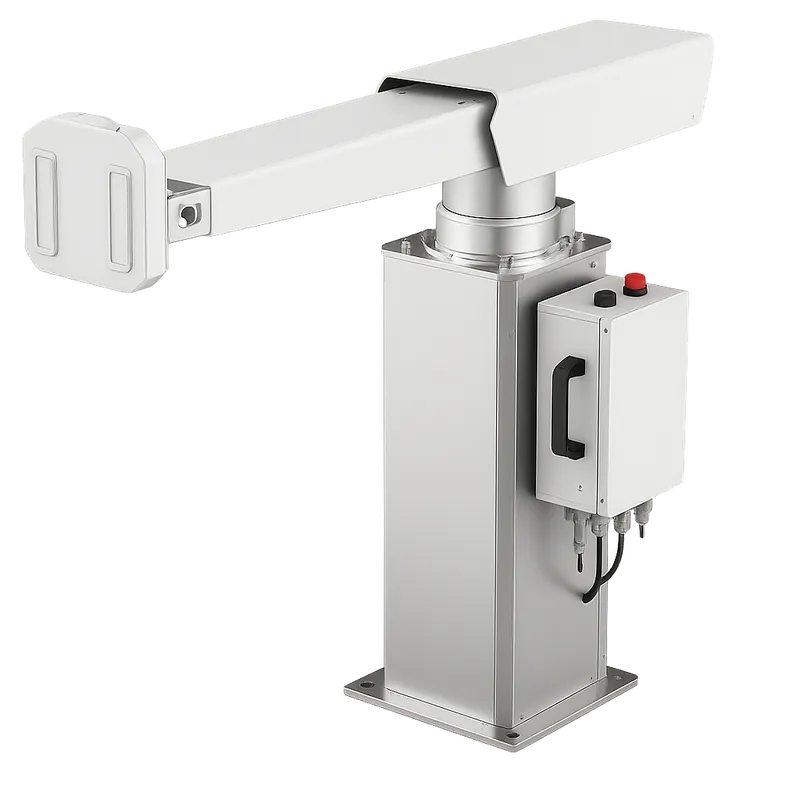

GX-SAR2000 Fixed Slope Stability Monitoring Radar

A robust, permanent monitoring solution engineered for 24/7 slope surveillance in mining, infrastructure, and geohazard-prone areas. Leveraging advanced Synthetic Aperture Radar (SAR) technology, this system delivers submillimeter precision across 360° coverage, ensuring early detection of slope instability even in extreme weather.

Availability:



Inquire

Ground-Based Synthetic Aperture Radar (GB-SAR) Slope radar Mine safety monitoring Structural Health Monitoring (SHM) for Mining Mine Safety Management System Fixed Slope Stability Monitoring Radar

Key Selling Points

Product Parameters

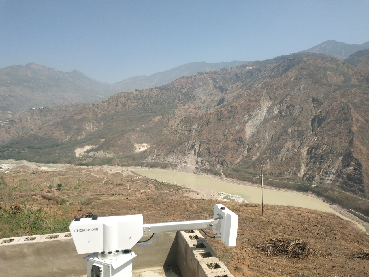

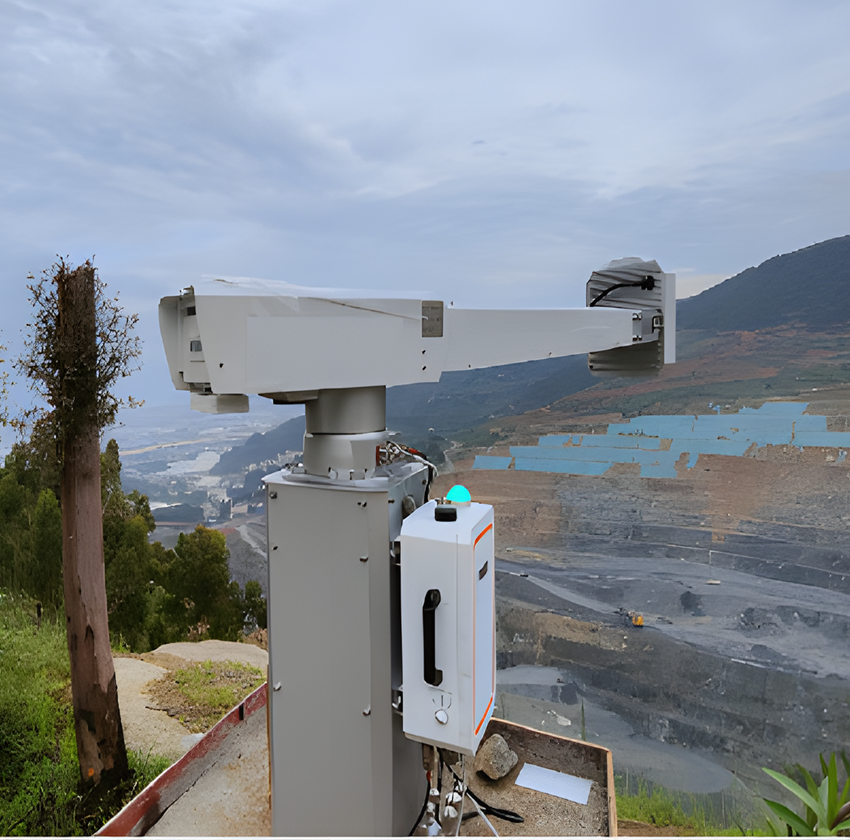

Application Scenarios

◀◀ Key Selling Points ▶▶

Industrial-Grade Durability

Built for harsh environments: -40°C to 55°C operation & IP65 protection
Flexible power options: Grid/solar/generator/battery hybrid support

Zero-Blind-Spot Monitoring

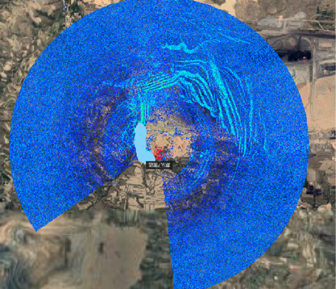

Full 360° horizontal + vertical coverage via arc-scan imaging
5 km detection range with 0.3° angular resolution

Self-Optimizing Intelligence

Adaptive atmospheric compensation – no reference points required
3D terrain integration for slope-correlated displacement analysis

⚡ Plug-and-Play Automation

Fully integrated processing & communication modules
Customizable protocols (LAN/WiFi/4G) + open API for secondary development

Lab-Grade Precision

0.1 mm deformation sensitivity (radial)
Continuous-wave radar for real-time data refresh

◀◀ Product Parameters ▶▶

Category	Specification
Frequency Band	K-band
Azimuth Resolution	<0.3° (5 mrad)
Coverage	360° horizontal + vertical
Range Resolution	<0.3 m
Max Detection Range	≥5 km
Deformation Sensitivity	<0.1 mm (radial)
Scan Speed (Full 360°)	0.5–16 min (with data processing)
Power Consumption	≤50 W
Weight	≤25 kg
Dimensions	1.33m×0.42m×0.73m
Operating Temperature	-40°C to +55°C
Protection Rating	IP65
Power Supply	Grid/Solar/Generator/Battery
Communication	LAN/WiFi/4G
