pH Sensor Types, Selection & Importance in Water Quality Monitoring

1. Introduction: Core Role of pH Sensors in Water Quality Monitoring

A pH sensor (or water pH probe) is a critical tool for measuring the acidity or alkalinity of liquids, with a pH scale ranging from 0 to 14. It plays an irreplaceable role in water quality monitoring, ensuring the safety of drinking water, compliance of industrial processes, and health of aquatic ecosystems. The ideal pH range for safe drinking water is 6.5-8.5, and maintaining this balance is essential for human health and industrial operational efficiency.

2. How pH Sensors Work & pH Scale Interpretation

The core working principle of pH sensors involves two key components: a sensing electrode (glass bulb) and a reference electrode. When immersed in a solution, the electrodes generate a voltage difference proportional to the hydrogen ion activity. A connected pH meter converts this electrical potential into a readable pH value.

Key points of the pH scale: pH 7 is neutral; values below 7 indicate acidity (lower values = stronger acidity); values above 7 indicate alkalinity (higher values = stronger alkalinity). Practically, solutions with an exact pH of 0 or 14 rarely exist.

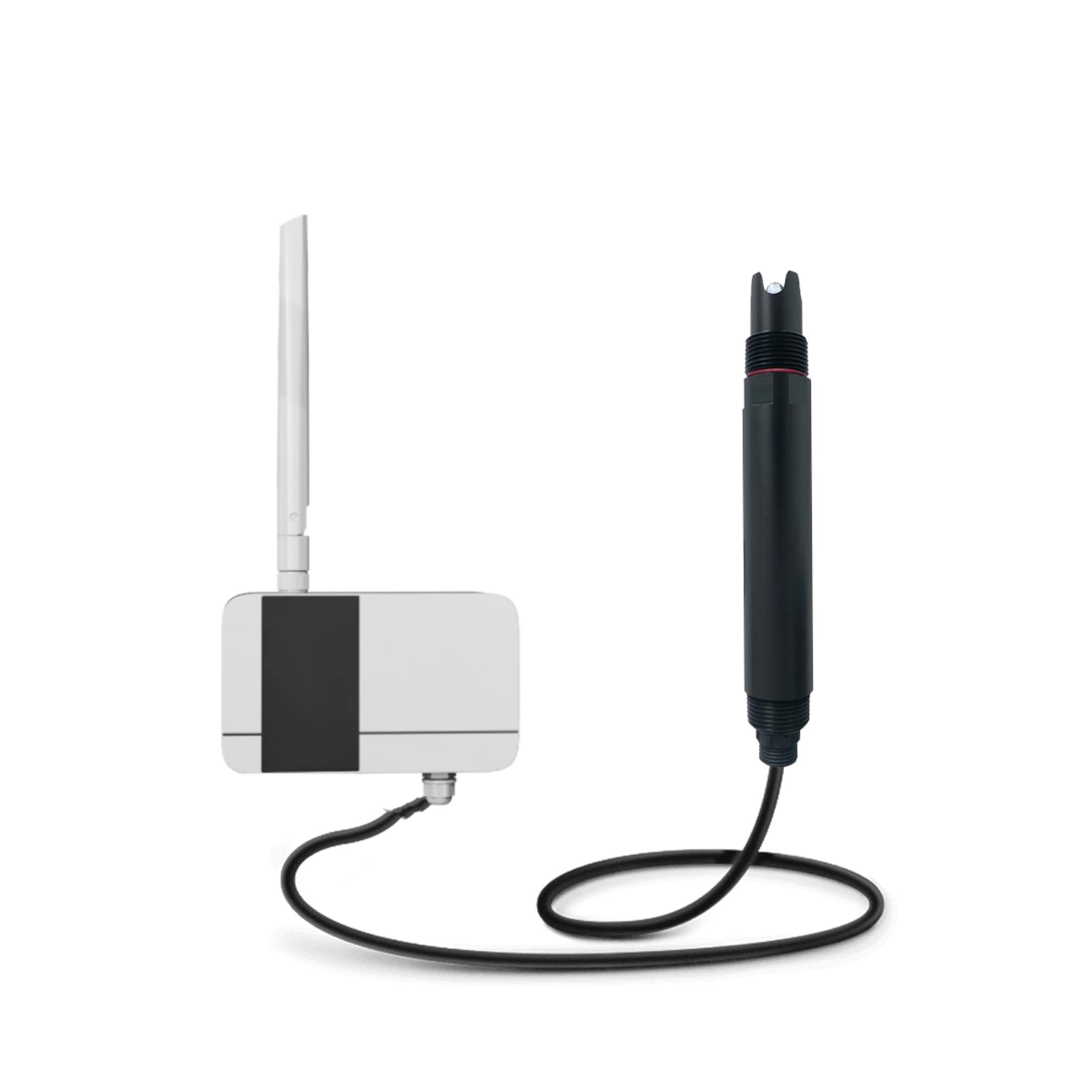

water ph probe

3. Mainstream pH Sensor Types

• Combination pH Sensors: Integrate measuring and reference electrodes in one unit, often with a built-in temperature sensor. Features compact structure and ease of use, suitable for laboratory testing and industrial online monitoring.

• Differential pH Sensors: Equipped with three electrodes (including a metal ground electrode). Minimizes reference system contamination, offering high durability and reliability for harsh environments.

• Laboratory pH Sensors: Adopt plastic housing and 12mm glass shafts, ideal for low-demand tasks like environmental monitoring and swimming pool testing.

• Industrial Process pH Sensors: Rugged housing with built-in process connectors, designed for continuous operation in industrial environments, leveraging combination sensor technology.

4. Key pH Electrode Types & Selection Guidelines

Selecting the right pH electrode directly impacts measurement accuracy and project efficiency. Incompatible electrodes lead to inaccurate results and increased costs. Common types and selection tips are as follows:

• Glass Electrode: High accuracy, fast response, less affected by water color, turbidity, or salinity. Suitable for corrosive environments like bioengineering, pharmaceuticals, and chemical processing.

• Combination Electrode: All-in-one design (measuring + reference electrode) with temperature compensation. Ideal for routine laboratory testing and industrial online monitoring.

• Desulfurization Electrode: Maintenance-free gel design, accurate in high-temperature/high-pH environments. Easy to clean, suitable for mineral slurries and flue gas desulfurization processes.

• PTFE Electrode: Excellent resistance to strong acids/alkalis, with a protective ring for the glass bulb. Suitable for industrial wastewater and heavily contaminated water bodies.

• Antimony Electrode: Corrosion-resistant, suitable for highly corrosive solutions (e.g., hydrofluoric acid) via surface oxide film reaction with hydrogen ions.

• Electroplating Electrode: Dual-junction design reduces reference electrolyte contamination, long service life in harsh environments. Ideal for electroplating wastewater and fermentation processes.

5. Core Application Scenarios of pH Sensors

• Water Quality Monitoring: Drinking water safety testing, swimming pool water balance, and wastewater treatment compliance.

• Industrial Processes: Chemical reaction control, food/beverage production, power plant operations, and pharmaceutical manufacturing.

• Environmental Protection: Assessing the health of rivers, lakes, and aquatic ecosystems.

• Agriculture: Monitoring hydroponic solution balance and irrigation water quality.

6. Importance & Value of pH Sensors in Water Quality Monitoring

• Ensuring Public Health: Prevents health risks from unbalanced pH water (e.g., dry skin, dull hair, and potential toxins).

• Improving Industrial Efficiency: Optimizes production processes, reduces energy consumption, and minimizes unexpected downtime.

• Cost Control: Avoids extra chemical costs for pH correction and reduces water waste, aligning with sustainable goals.

• Environmental Compliance: Meets water quality regulations and protects aquatic life by maintaining optimal pH levels.

7. Advantages of BGT pH Sensors

BGT provides comprehensive water quality monitoring solutions, integrating advanced pH sensor technology with IoT to realize intelligent and automated monitoring. We offer pH standard solutions and buffer solutions for easy maintenance and accurate measurements. Our product lineup covers various scenarios, including high-temperature, corrosive, and high-pollution environments, ensuring reliable performance for industrial and environmental monitoring needs.
