If you manage rivers, reservoirs, culverts, or debris-flow gullies, you’ve likely faced the same headaches: delayed, scattered data; risky and costly manual gauging; devices that fail in rain, foam, or heavy sediment; and alarms that don’t reach people when networks are down. This blog introduces a simple to deploy yet surprisingly capable solution: an all-in-one smart radar level sensor designed for continuous water and mud-level monitoring in the toughest conditions.
One device, one install, full stack monitoring.

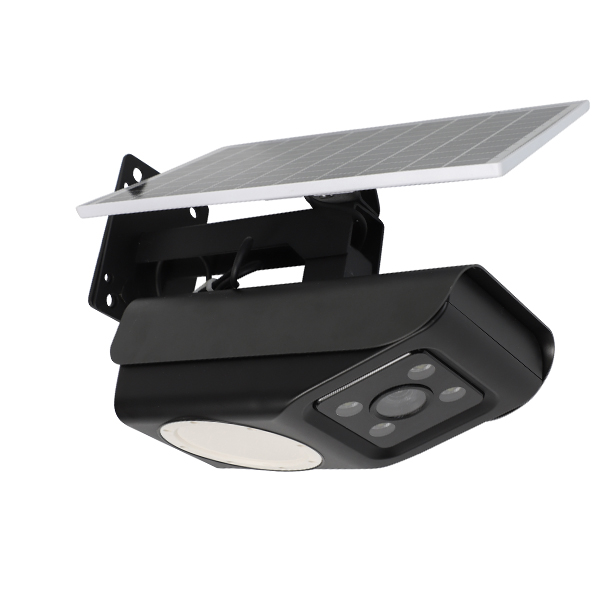

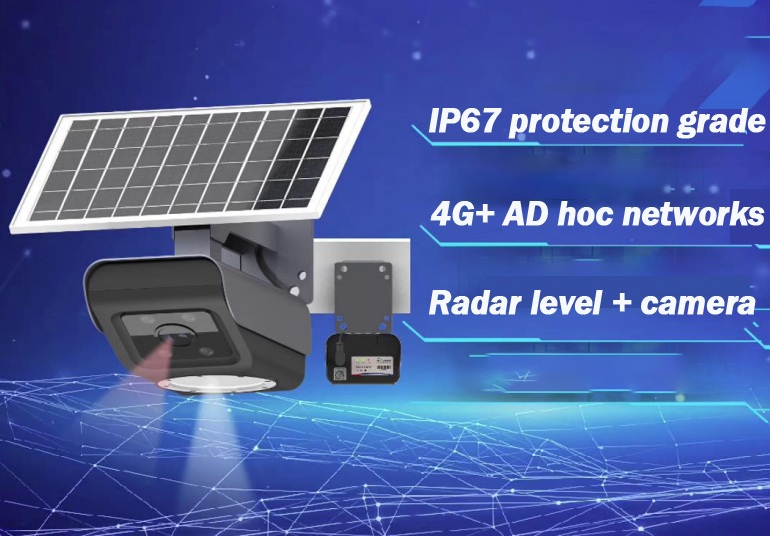

This solar IoT water level sensor integrates:
FMCW millimeter-wave radar — a non-contact radar water level sensor immune to temperature, humidity, foam, spray, and most floating debris.
Onboard HD camera — “data + image” for remote verification and situational awareness.
Dual communication — public cellular (4G) and LoRa self-organizing mesh for redundancy.
Power autonomy — a radar level sensor with MPPT charging (10 W panel + 15,000 mAh battery) for years of unattended service.
Rugged build — IP68 enclosure for outdoor, all-weather deployments.
The result is a smart radar level sensor that measures precisely, verifies visually, sends reliably, and installs fast.
The radar continuously emits a frequency-swept microwave signal toward the surface. The reflection (echo) returns with a slight frequency shift (“beat” frequency). From this, the device computes the air gap between antenna and surface; with a configured reference (benchmark), it outputs the real-time water (or mud) level. Because the measurement is non-contact, nothing touches the fluid—no fouling, no corrosion, minimal maintenance.
Why radar over ultrasonic?
Radar isn’t derailed by wind, fog, temperature swings, or foam. In sandy, silty, or debris-laden flows, radar remains stable where ultrasonic often struggles.

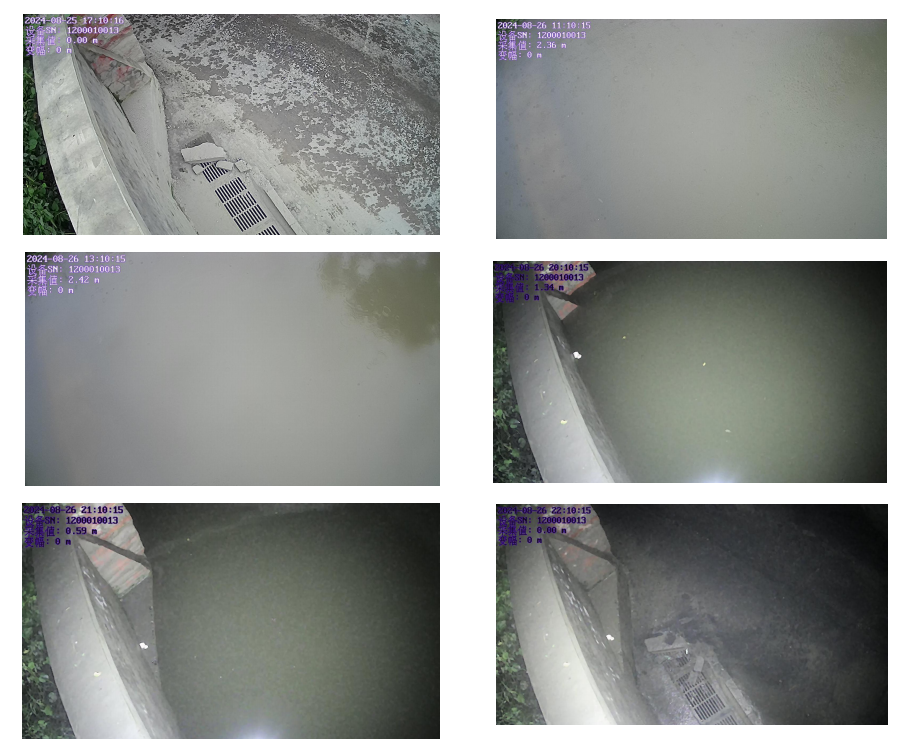

Numbers alone can mislead. When a threshold is crossed, the device pushes both the level reading and a live image. Dispatchers can confirm at a glance whether a spike is a real flood surge or a branch momentarily drifting under the sensor. This reduces false alarms, builds trust, and speeds response—crucial for a flood early-warning water level sensor.
Practical wins:
Verify overtopping risks at bridges and culverts.
Observe inundation at road crossings during urban waterlogging events.
Check downstream backwater effects at gates, sluices, and siphons.
Disasters break networks. Your alarms still have to get out.
Primary link: 4G cellular uplink to the cloud for real-time dashboards, analytics, and alerts.
Backup link: LoRa mesh lets devices relay data hop-by-hop to a node with coverage or directly to an indoor cloud alarm terminal. Even if the public network drops, the community still receives audible/visual alarms locally.
This dual-path design keeps early-warning alive when it matters most.
Field sites rarely have grid power. This solar-powered radar level sensor uses MPPT to harvest energy efficiently from a 10 W panel into a 15,000 mAh battery. Ultra-low-power electronics and smart duty cycling deliver multi-year unattended operation—through rainy seasons and cloudy weeks—without trenching cables or swapping batteries constantly.
IP68 weatherproofing: rain, dust, spray, and splash.
Non-contact sensing: unaffected by corrosive water, foam, or floating debris.
Mud-level capable: dependable in debris flow and high-sediment channels.
Minimal upkeep: no wetted parts, no desiccant swaps, no routine recalibration in most use cases.
Mount: Pole/arm bracket, tighten clamps—no conduit runs, no trenching.
Power: Switch on; the solar IoT water level sensor self-checks and comes online.
Configure: Set reference height, thresholds, and alert rules remotely. Done.
What used to take days with multiple contractors can now be a single-visit job.
The platform turns field data into decisions:
Live monitoring: water/mud level + synchronized images.
History & trends: charts, statistics, exportable reports.
Multi-tier alarms: SMS, phone calls, app/web notifications; configurable thresholds.
Device management: health, firmware, permissions, and audit trails.
Think less “dashboard wallpaper,” more decision support for flood control, reservoir operations, and emergency management.
Flash-flood gullies & mountain streams: rapid rise detection with visual confirmation.
Urban flood points: underpasses, culverts, low-lying intersections—automated alerts to traffic ops.
Reservoirs & rivers: continuous radar water level sensor data for dispatch and allocation.
Debris-flow corridors: mud-level monitoring despite high sediment loads.
Accuracy & stability in rain, heat, cold, foam, and sediment (FMCW).
Non-contact → safer installs, lower O&M, long service life.
Data + image → fewer false alarms, faster situational awareness.
Dual-path comms → resilient alarms during outages.
Solar autonomy (MPPT) → years of unattended operation.
Fast deployment → one device, one crew, one visit.
Q: What’s the measuring tech?
A: FMCW radar. It outperforms ultrasonic in stability and environmental immunity.
Q: Is it only a level meter?
A: It’s an all-in-one station: radar sensor, HD camera, IoT telemetry, comms gateway, and solar power—end-to-end.
Q: Why the camera?
A: To verify alarms and understand context—crucial for flood early-warning water level sensors.
Q: What if there’s no 4G signal?
A: Devices form a LoRa mesh and relay to an indoor alarm terminal or a node with coverage.
Q: How is it powered?
A: Solar-powered radar level sensor with MPPT and a high-capacity battery—no grid wiring.
Q: Suitable for debris flows?
A: Yes. The non-contact radar water level sensor remains reliable in high-sediment, debris-laden flows.
Q: Data security and continuity?
A: Encrypted transmission plus local storage buffering during outages, auto-sync on recovery.

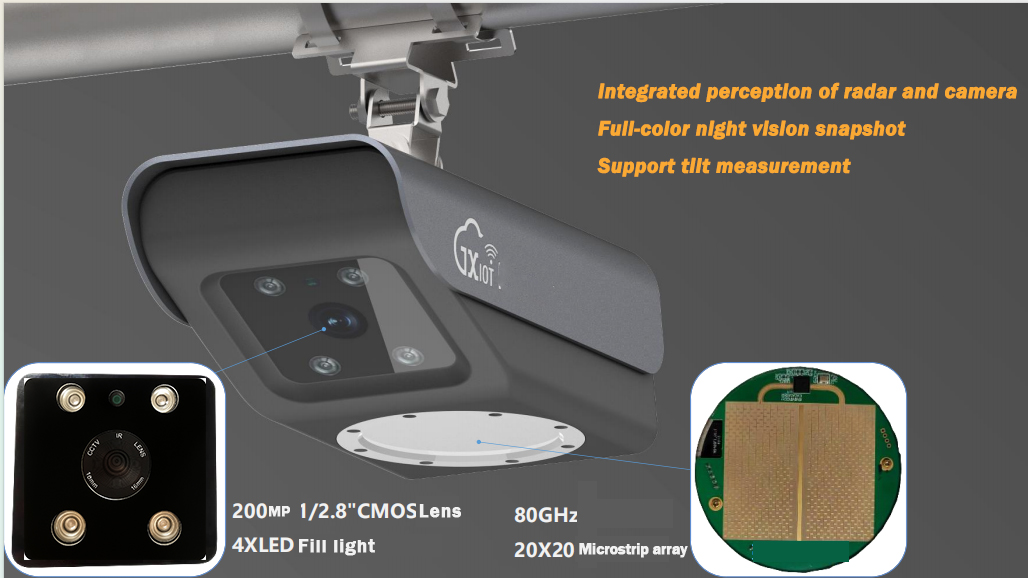

Sensing: FMCW millimeter-wave radar level sensor (non-contact)
Power: 10 W solar + 15,000 mAh battery, MPPT charge control
Comms: 4G cellular + LoRa self-organizing mesh (redundant)
Imaging: Onboard HD camera for live snapshots/video
Enclosure: IP68, outdoor-rated
Platform: Real-time monitoring, history, analytics, multi-channel alerts, remote management
This simple yet powerful device compresses sensing, imaging, communications, and power into one hardened package. It installs fast, runs for years, and keeps you informed even when public networks fail. For agencies and operators seeking a dependable flood early-warning water level sensor for rivers, reservoirs, urban hotspots, or debris-flow corridors, this smart radar level sensor is a pragmatic upgrade.
Related Products
 |  |  |

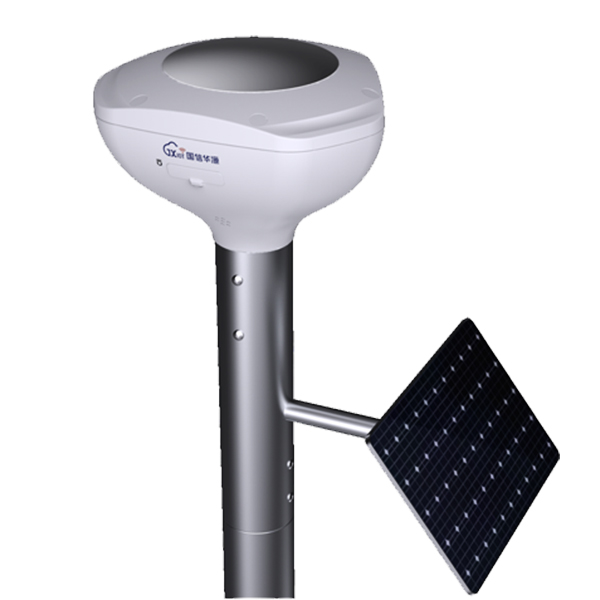

| Maintenance-Free Rain Gauge |
