Recirculating Aquaculture System (RAS)

A Recirculating Aquaculture System (RAS) is an efficient and environmentally sustainable aquaculture technology that recycles water through advanced treatment processes, minimizing water consumption and environmental impact.

RAS Workflow:
Water circulates between the culture tank and treatment units:
Culture Tank → Solid Waste Removal → Biofiltration → Oxygenation/Disinfection → Return to Culture Tank.

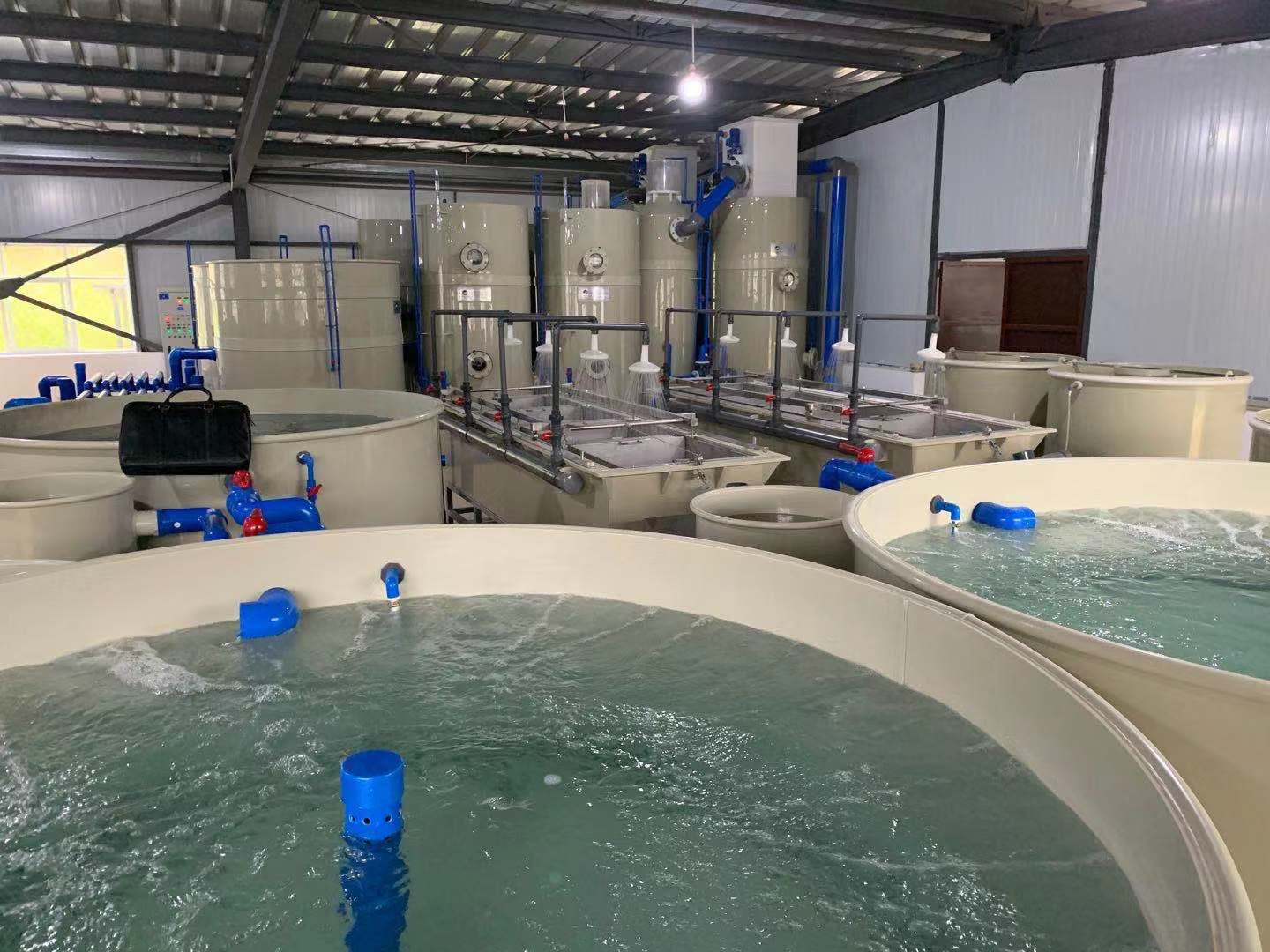

RAS1

Key Components of RAS

  1. Culture Tank: Core unit for rearing aquatic species (e.g., fish, shrimp).

  2. Physical Filtration: Removes solid waste (e.g., feces, uneaten feed) via drum filters or protein skimmers.

  3. Biofiltration: Converts toxic ammonia (NH₃) into nitrite (NO₂⁻) and nitrate (NO₃⁻) using nitrifying bacteria.

  4. Oxygenation System: Maintains dissolved oxygen (DO) levels (e.g., pure oxygen injection, aerators).

  5. Disinfection: UV sterilizers or ozone treatment to eliminate pathogens.

    Temperature Control: Heating/cooling systems (e.g., heat pumps, heat exchangers) for optimal water temperature.

  6. Water Quality Monitoring: Real-time tracking of pH, DO, ammonia, etc.

RAS Solution

System Advantages

  1. Water Efficiency & Eco-Friendliness

    • Recycles >90% of water, reducing daily exchange to 5-10% (vs. traditional systems). Ideal for water-scarce regions or strict regulatory environments.

  2. Precision Control & Stable Production

    • Stable water quality (DO >5mg/L, ammonia <0.5mg/L) enables year-round, season-independent farming with adjustable pH/temperature.

  3. High-Density Farming & Space Savings

    • Stocking densities 10-50x higher than ponds (e.g., salmon at 50-80kg/m³), suitable for urban/land-based facilities.

  4. Reduced Disease Risk & Sustainability

    • Closed systems minimize pathogen exposure; UV/ozone lowers antibiotic use, aligning with green aquaculture trends.

  5. Environmental Sustainability

    • Centralized waste treatment reduces pollution. Integrates with aquaponics (nutrient recycling) and renewable energy (e.g., solar).

  6. Technology-Intensive Operation

    • Requires skilled management for biofilters/automated systems. Energy costs account for 30-50% of OPEX.

  7. High ROI for Premium Species

    • Initial CAPEX: ~$50-100/m³, but ideal for high-value species (e.g., salmon, sturgeon) with shorter cycles and premium market access.

RAS vs. Traditional Aquaculture

Feature RAS Traditional (Pond)
Water Use 90%+ recycling High dependency on natural sources
Stocking Density Very high (industrial scale) Limited by environment
Environmental Control Full automation (year-round) Weather-dependent (seasonal)
Disease Risk Low (closed system) High (open water exposure)
Eco-Impact Minimal discharge Wastewater runoff
CAPEX High Low

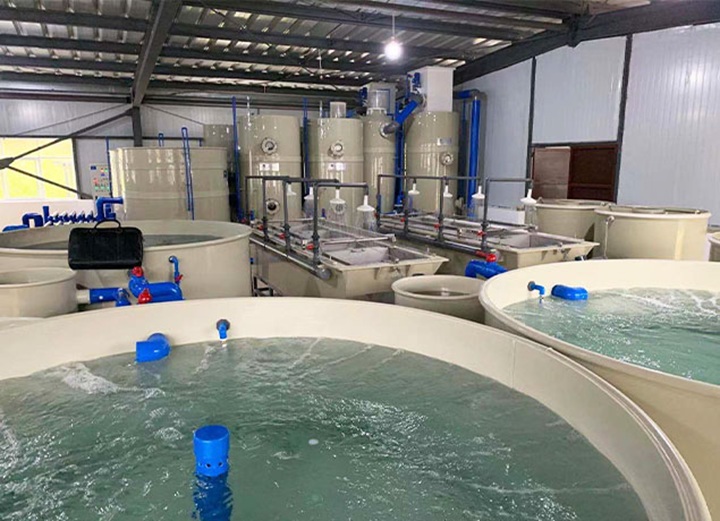

On-Site Photos

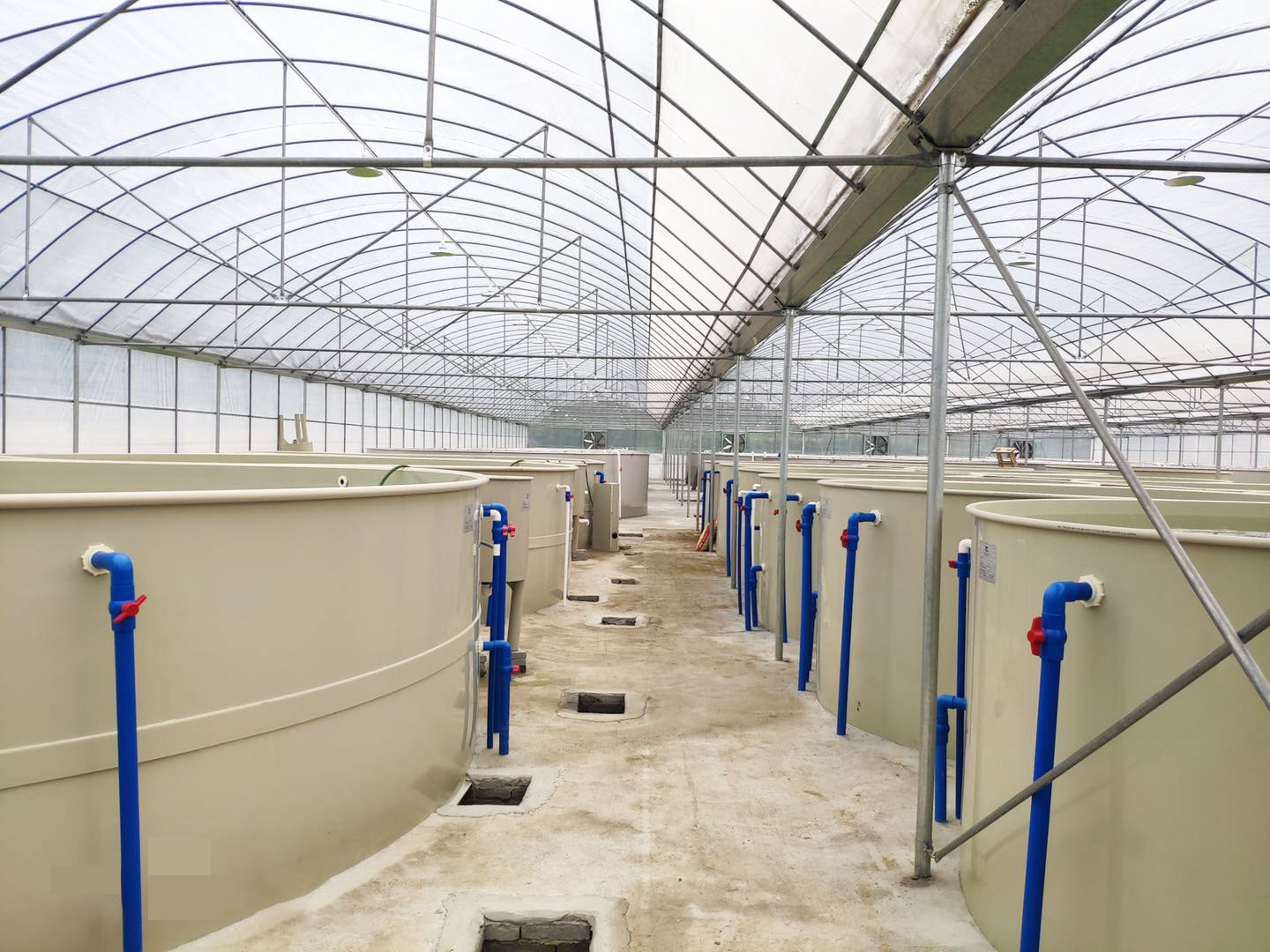

RAS2

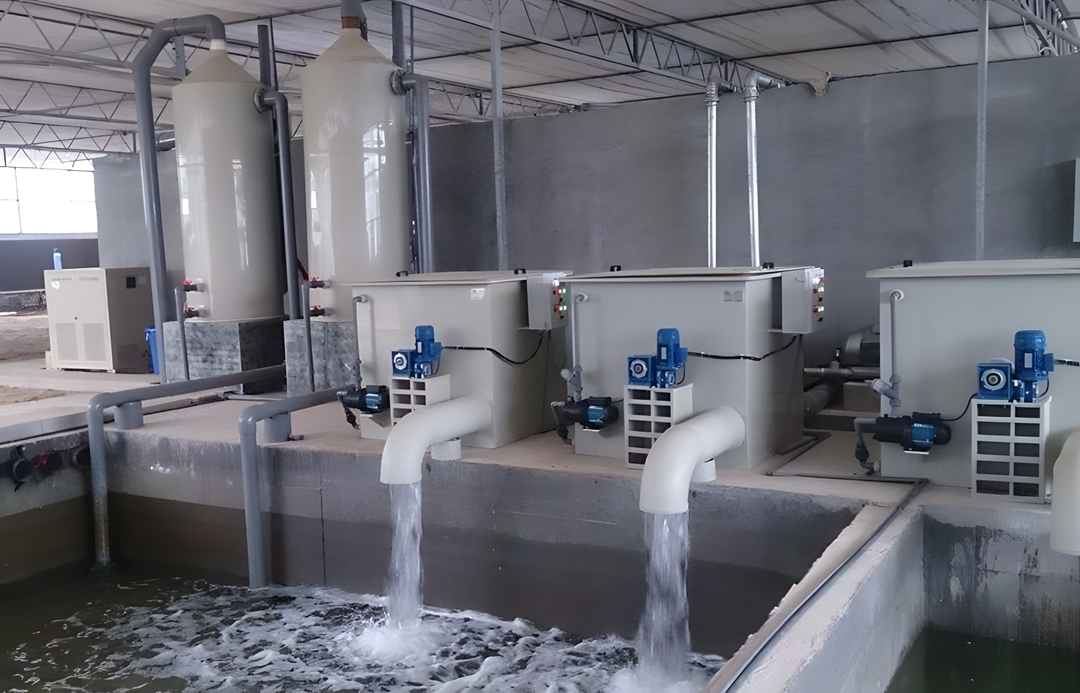

ras in aquaculture
