In the realm of renewable energy, accurate assessment of solar resources is paramount for the design, implementation, and optimization of solar energy systems. Solar radiation data not only informs the potential energy yield but also influences feasibility studies, economic analyses, and the long-term performance monitoring of photovoltaic installations. Central to this data acquisition is the Pyranometer, a sophisticated instrument designed to measure the solar irradiance received on a planar surface. Understanding how a pyranometer functions and its role in energy assessments is crucial for engineers, meteorologists, and energy analysts striving for precision in solar energy projects.
Solar radiation, the electromagnetic energy emitted by the sun, encompasses a spectrum of wavelengths including ultraviolet, visible, and infrared light. Accurate measurement of this radiation is essential for various applications such as climate research, agricultural planning, and particularly in the renewable energy sector for the optimization of solar power systems. The quantification of solar irradiance—the power per unit area received from the sun—is typically expressed in watts per square meter (W/m²). Precise measurement devices like pyranometers are indispensable for capturing this data with high fidelity.
A pyranometer is a radiometric instrument used to measure broadband solar irradiance on a planar surface, which encompasses both direct solar radiation and diffuse sky radiation. It is a critical tool in solar energy assessments, meteorological studies, and climatology. The device functions by converting solar radiation into an electrical signal that can be quantified and recorded. This measurement is vital for determining solar panel efficiency, forecasting energy production, and conducting environmental research.
Pyranometers operate based on the thermoelectric or photoelectric effect. The most common types are thermopile pyranometers, which utilize a series of thermocouples connected in series or parallel to form a thermopile. When exposed to solar radiation, the thermopile generates a voltage proportional to the temperature difference between the hot and cold junctions, reflecting the amount of solar irradiance. Alternatively, silicon photodiode pyranometers use photovoltaic cells that produce current directly from solar radiation, though they are generally less accurate due to spectral sensitivity variations.

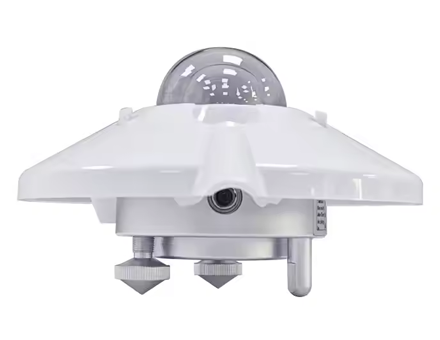

A typical thermopile pyranometer consists of several key components: a blackened thermopile sensor to absorb solar radiation, a glass dome or diffuser to protect the sensor and filter the spectral response, and a body that houses the thermopile and provides thermal insulation. The glass dome is designed to allow a wide range of wavelengths to reach the sensor while preventing convection currents and environmental contaminants from affecting the measurement. High-quality pyranometers feature double-domes to minimize thermal offsets and improve cosine response.
Pyranometers are classified based on performance criteria outlined in international standards such as the ISO 9060 and the World Meteorological Organization (WMO) guidelines. The main categories include Secondary Standard, First Class, and Second Class pyranometers. Secondary Standard pyranometers offer the highest accuracy and stability, suitable for reference measurements. First Class pyranometers provide a balance between performance and cost, making them ideal for routine measurements in solar energy applications. Second Class pyranometers are used for general-purpose measurements where less precision is acceptable.
These instruments meet the highest performance criteria with the lowest measurement uncertainties. They are characterized by superior temperature stability, directional response, and spectral sensitivity. Secondary Standard pyranometers are often employed in meteorological networks and solar radiation monitoring stations where data accuracy is critical.
First Class pyranometers offer a high level of accuracy suitable for most solar energy applications, including performance monitoring of photovoltaic plants. They provide reliable measurements with slightly higher uncertainties compared to Secondary Standard devices but at a lower cost, making them practical for widespread deployment.
Second Class pyranometers are designed for applications where approximate measurements suffice. They have higher uncertainties and are more susceptible to environmental factors. While not suitable for precision energy assessments, they can be used for educational purposes and preliminary site evaluations.
Calibration is essential to ensure the accuracy and reliability of pyranometer measurements. It involves comparing the instrument's output against a reference standard under controlled conditions. The calibration process establishes a calibration factor or sensitivity, which is used to convert the electrical signal into irradiance units. Traceability to international standards, such as the World Radiometric Reference (WRR), is crucial for maintaining consistency across different instruments and measurement campaigns.
Common calibration methods include the indoor laboratory calibration using a stable light source and outdoor calibration methods such as the sun-shade method, which compares the pyranometer's response to that of a reference instrument under natural sunlight. Regular calibration, typically on an annual basis, is recommended to account for sensor aging and environmental impacts.
Pyranometers play a vital role in the renewable energy sector, particularly in the assessment and optimization of solar power systems. By providing accurate solar irradiance data, they enable engineers to predict energy yields, design efficient photovoltaic arrays, and monitor system performance over time. This data is crucial for identifying deviations from expected outputs, diagnosing system issues, and validating energy models used in planning and financing.
During the initial stages of solar project development, pyranometers are used to gather long-term solar radiation data at prospective sites. This information feeds into feasibility studies, influencing decisions on site selection, system sizing, and financial projections. Accurate irradiance measurements help mitigate risks associated with solar resource variability.
Operational solar installations utilize pyranometers to continuously monitor system performance. By comparing actual energy output against expected values derived from real-time irradiance measurements, operators can detect underperformance, schedule maintenance, and optimize system settings. This proactive approach enhances efficiency and extends the lifespan of solar assets.
Several large-scale solar farms have demonstrated the critical role of pyranometers in energy production optimization. For instance, a solar power plant in Nevada incorporated a network of Secondary Standard pyranometers to fine-tune the alignment of its photovoltaic panels, resulting in a 5% increase in energy yield. Similarly, in Spain, pyranometer data facilitated predictive maintenance schedules, reducing downtime by 15% and improving overall plant efficiency.
Technological advancements have led to the development of smart pyranometers with enhanced features such as built-in data logging, digital outputs, and remote monitoring capabilities. Modern pyranometers offer improved spectral response, faster processing times, and better environmental resistance. Integration with IoT platforms allows for real-time data analysis and integration into energy management systems.
Newer models feature sensors with enhanced spectral sensitivity, closely matching the solar spectrum. This improvement reduces measurement errors associated with spectral mismatch, particularly important in systems using bifacial or thin-film photovoltaic technologies that have distinct spectral responses.
Pyranometers are increasingly designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and particulate matter. Robust construction materials and protective features ensure long-term reliability and reduce maintenance requirements, crucial for remote installations.
The integration of pyranometer data into comprehensive energy management systems allows for sophisticated analysis and control mechanisms. Real-time irradiance data can be used to adjust operational parameters dynamically, such as inverter settings or battery storage management, optimizing performance and efficiency.
While pyranometers are essential for accurate solar radiation measurement, several challenges can affect their performance. These include soiling of the sensor domes, temperature-induced measurement drift, and environmental factors such as shading or reflections. Regular maintenance, calibration, and proper installation are necessary to mitigate these issues.
Implementing routine cleaning schedules prevents the accumulation of dust, dirt, or snow on the sensor domes, which can significantly reduce measurement accuracy. Using anti-soiling coatings and heating elements in regions prone to frost or heavy snowfall can also enhance performance.
Proper siting of pyranometers is crucial. They should be installed in locations free from obstructions that could cast shadows or reflect light onto the sensor. The mounting should ensure that the instrument remains level and secure to avoid misalignment over time.
The evolution of pyranometer technology continues to align with the growing demands of the renewable energy sector. Emerging trends include the integration of artificial intelligence for data analysis, wireless communication capabilities, and enhanced compatibility with smart grid technologies. These advancements aim to provide more accurate, real-time data to support increasingly sophisticated energy management and forecasting models.
The application of AI and machine learning algorithms to pyranometer data enables predictive analytics and improved forecasting of solar energy production. These tools can identify patterns and anomalies, assisting in preventive maintenance and operational optimization.
The incorporation of wireless communication protocols facilitates seamless integration into IoT networks. This connectivity allows for remote monitoring, configuration, and data acquisition, reducing the need for on-site interventions and enhancing data accessibility.
Pyranometers are indispensable instruments in the accurate measurement of solar radiation, forming the backbone of effective energy assessments in the solar power industry. Through precise irradiance data, they enable the optimization of photovoltaic systems, contribute to reliable energy forecasting, and support the advancement of renewable energy technologies. As the industry evolves, innovations in pyranometer design and functionality will continue to enhance their utility, ensuring they remain a critical component in the pursuit of sustainable energy solutions.
For professionals seeking to deepen their understanding or integrate advanced solar measurement instruments into their projects, exploring the latest developments in Pyranometer technology offers valuable insights into achieving higher accuracy and efficiency in solar energy assessments.
