Description:

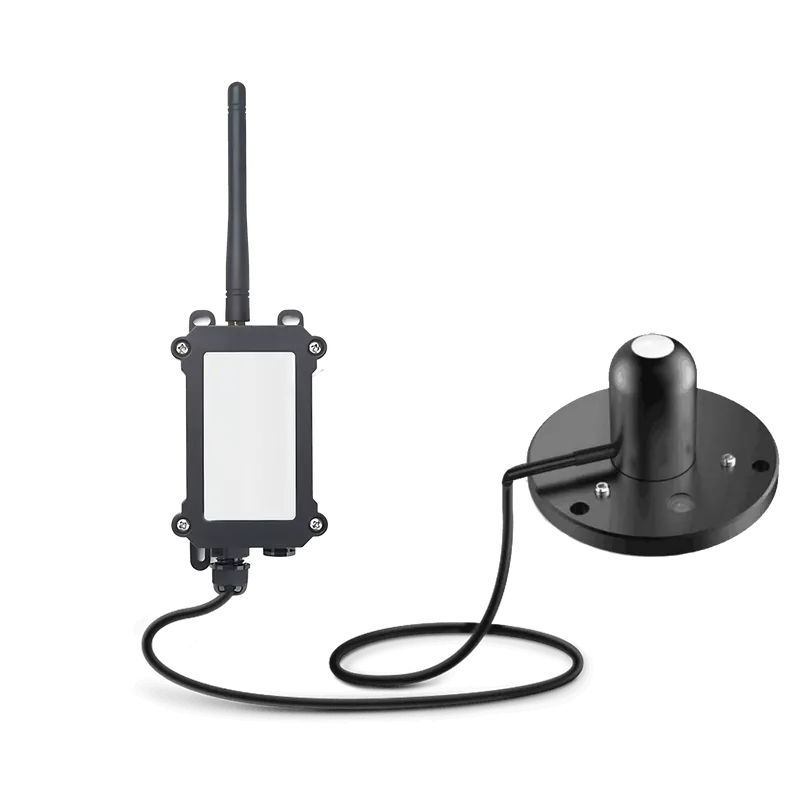

The BGT-PAR1(L) solar radiation sensor can be used to measure the photosynthetic effective radiation of natural light within the wavelength range of 400-700nm and it is simple and cost-effective, can be used all the day, can be reversed or tilted. It is widely used in plant growth, heat conversion box and solar energy monitoring of soil moisture evapotranspiration loss.
Precision PAR Measurement
→ Accurately captures natural light in the critical 400–700nm spectrum for photosynthesis
Lab-Grade Accuracy
→ 1μmol/m²·s resolution with ±1% linearity ensures scientific reliability
Rugged Field Performance
→ Wide voltage input (DC9-30V) supports mobile/remote deployments
Smart Agriculture Ready
→ RS485 Modbus-RTU output for seamless IoT integration
Ultra-Wide Range
→ Measures 0–2500μmol/m²·s (covers all natural light scenarios)
| Sensor Parameter | Specification |
|---|---|
| Spectral Range | 400–700nm |
| Resolution | 1μmol/m²·s |
| Measuring Range | 0–2500μmol/m²·s |
| Linearity | ≤±1% deviation |
| Output | RS485 (Modbus-RTU protocol) |
| Power Supply | DC9–30V |
General Parameter | |
Supply voltage | Built-in Battery, 2.5V~3.6V |
Battery capacity | 8500mAh |
Working temp. | -40~85℃ |
Working humidity | 0 ~100 %RH (non-condensing) |
Communication | LoRaWAN 1.0.3 Class A |
LoRa frequency band | CN470/EU433/KR920/US915/ EU868/AS923/AU915/IN865 |
Frequency range | Band 1 (HF): 862~1020 Mhz |
Lora transmission frequency | Max +22 dBm |
LoRa Receiver Sensitivity | down to -139 dBm |
Sleep mode | 5uA @ 3.3v |
LoRa transmit mode | 125mA @ 20dBm, 82mA @ 14dBm |
✔ Precision Agriculture
→ Greenhouse light optimization
→ Crop yield forecasting models
→ Vertical farm PAR monitoring
✔ Ecological Research
→ Forest canopy photosynthesis studies
→ Ocean phytoplankton productivity
→ Climate change impact analysis
✔ Smart Horticulture
→ Cannabis/C3/C4 plant light management
→ Nursery light stress detection
→ Irrigation-PAR synchronization systems
Application:
Weather Station.
PV Mornitoring Station
Agriculture
Further details , please contact us !
