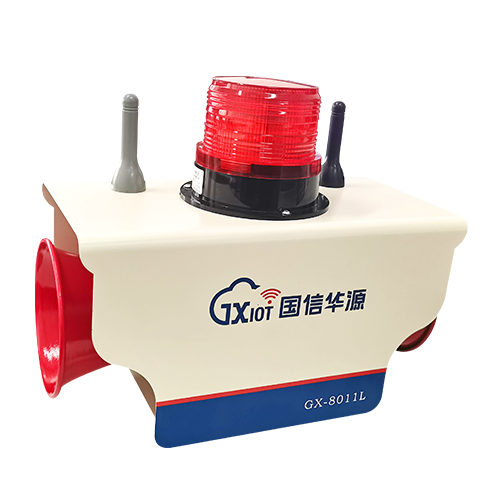

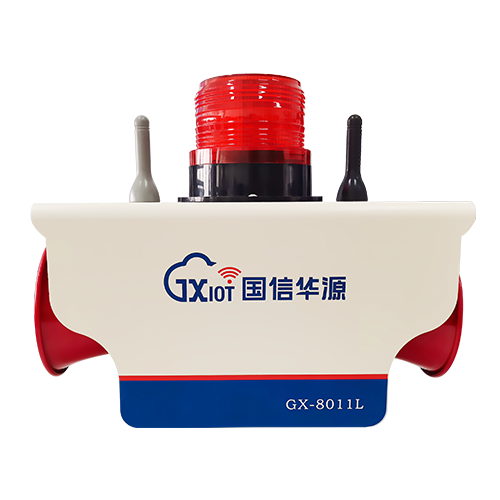

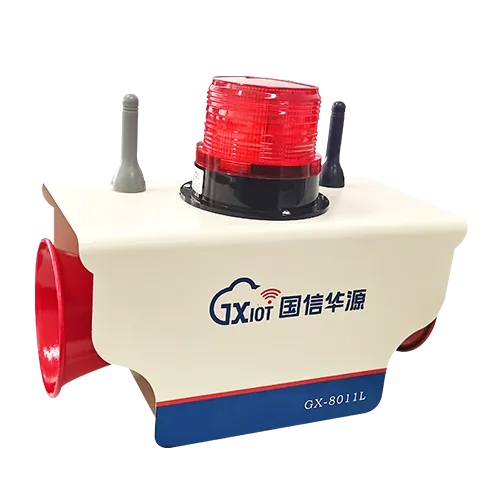

The Audio-Visual Alarm is a medium-power alarm device that integrates communication, power supply, warning lights, and a speaker. Designed with high integration, it offers a seamless "plug-and-play" installation experience, significantly reducing both workload and complexity during deployment.
The device supports 4G public network communication and LoRaMesh self-organizing network capabilities. It can receive early warning signals issued via the platform or from local LoRaMesh devices to trigger audio and visual alerts.
The alarm can be used alongside various LoRaMesh-enabled monitoring devices from our company to form a local warning network, enabling multi-point alerts from a single monitoring source.
◀◀ Key Selling Points ▶▶
High Integration: Combines 4G communication, LoRaMesh communication, alarm light, speaker, battery, and charging management module.
High Integration: Combines 4G communication, LoRaMesh communication, alarm light, speaker, battery, and charging management module.

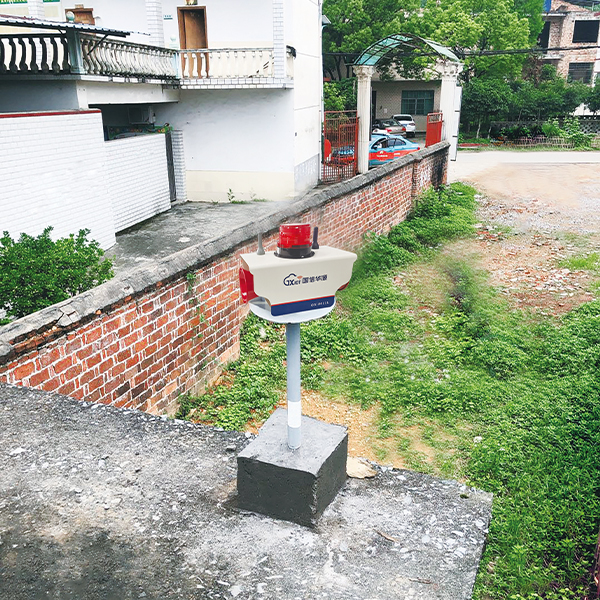

Easy Installation: Supports wall-mounted and pole-mounted installation for flexible and site-specific adaptation.
Dual SIM Switching: Built-in eSIM with support for an external physical SIM card.
Preloaded Alarm Tones: Includes pre-recorded warnings for heavy rainfall, floods, landslides, collapses, and mudslides.
Status Indicators: Features indicators for charging, full charge, and operational status.
Power Supply: Integrated charge controller with support for solar power.
Multi-Hop Transmission: Self-organizing network supports multi-hop relay transmission, suitable for complex environments like mountains and valleys.
Auto Registration: Supports batch automatic registration via the management platform (e.g., Geological Cloud Platform).
◀◀ Product Parameters ▶▶
Model | GX-8011L Type |
---|---|
Alarm Output | 50W, integrated with 2 x 25W speakers |
Built-in Battery | 12V / 11000mAh LiFePO₄ battery |
Standby Current | < 10mA |
Location Reporting | Supports latitude and longitude reporting |
Communication Standard | Complies with "Technical Requirements for Geological Disaster Monitoring Data Communication" |
Protection Level | IP65 |
Communication Methods | Supports both 4G transmission and LoRaMesh |
Operating Temperature | -20°C to 65°C |
Operating Humidity | ≤95% RH |
Storage Temperature | -40°C to 85°C |
◀◀ Application Scenarios ▶▶
Ideal for early warning dissemination and information broadcasting in public communities, villages, and buildings.
