◀◀ Key Selling Points ▶▶
◆◆ Advanced Piezoelectric Technology:
Utilizes piezoelectric sensor modules to detect raindrop impacts, providing highly sensitive and accurate rainfall measurements.
Capable of detecting the start and end times of rainfall more quickly than traditional mechanical methods.
◆◆ Maintenance-Free Operation:
No moving parts inside the sensor, ensuring long-term reliability and reducing the need for maintenance.
Optional heating device available to prevent freezing in cold climates.

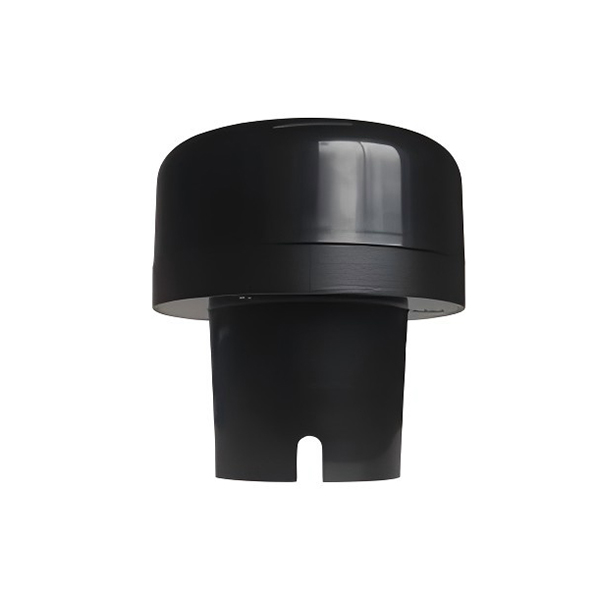

◆◆ Compact and Lightweight Design:
Small dimensions (Ø148 * 105mm) and lightweight (0.26kg) make it easy to install and integrate into various systems.
Constructed with ASA material, ensuring durability and resistance to environmental factors.
◆◆ High Sensitivity and Accuracy:
Offers a rainfall resolution of 0.1mm and an accuracy of <10%, ensuring precise and reliable data.
Detects raindrop sizes in the range of 0.5-5.0mm, providing detailed information on rainfall intensity.
◆◆ Low Power Consumption:
Operates on a low power supply range of 7-30VDC with a power consumption of 0.5W@12V (without heating), making it energy-efficient and cost-effective.
◆◆ Versatile Communication Options:
Supports multiple communication interfaces, including RS485, RS232, and SDI-12, and protocols like ModBus and ASCII, ensuring compatibility with a wide range of systems.
◆◆ Wide Operating Range:
Can operate in extreme temperatures (-30℃ to +60℃) and humidity levels (0-100%), making it suitable for various environmental conditions.
◀◀ Product Parameters ▶▶
Item No. | BGT-RS3 |
Measuring Medium | Rain |
Measuring Range | 0-200mm/h |
Accuracy | ＜10% |
Temperature(Optional) | -40℃-80℃ |
Humidity(Optional) | 0-100% |
Pressure(Optional) | 150-1100Mpa |
Particle size range (raindrop size) | 0.5-5.0mm |
Rainfall Resolution | 0.1mm |
Sampling Frequency | 1s |
Communication Interface | RS485、RS232、SDI-12 |
Protocol | ModBus、ASCII |
Power and power consumption | 7-30VDC; 0.5W @12V (without heating) |
Working temperature and humidity | -30℃ － +60℃ ：0-100% |
Dimensions | Ø148 * 105mm(black/white) |
Material/weight | ASA/0.26kg |
◀◀ Application Scenarios ▶▶
1. Weather Stations:
Ideal for meteorological monitoring, providing accurate and real-time rainfall data for weather forecasting and climate research.
2. Smart City Systems:
Integrate into smart city infrastructure to monitor urban rainfall conditions, enabling better decision-making for traffic management, public safety, and emergency response.
3. River Flood Control and Monitoring:
Essential for flood control systems, providing real-time rainfall data to predict and manage flood risks.
4. Agricultural Monitoring:
Used in precision agriculture to monitor rainfall levels, helping farmers optimize irrigation and crop management.
5. Construction and Infrastructure:
Monitor rainfall at construction sites to ensure safety and manage water drainage effectively.
6. Environmental Monitoring:
Suitable for environmental studies, providing accurate rainfall data for water resource management and ecosystem monitoring.
