BGT-CF2 ultrasonic anemometer has advantage of robust,no moving parts, free of maintenance and calibration on site, simultaneouslyoutput wind speed and direction. BGT-CF2 can be used in conjunction with a PC, data logger or other device, which has compatible communication protocol with it. BGT-CF2 can integrate optional modules to meet customers’ requirement without changing its appearance.
| Power Supply | DC：5-30V | |||
| Material of Body | stainless steel | |||
| Operating Temperature | -40℃ - +70℃ | |||
| Communication Protocol | SDI-12 or RS485 | |||
| Power Consumption | Wind measurement：DC7-30V（20mA@12V） Heater: DC12-30V(<2A@24V) | |||
| Principle | Range | Accuracy | Resolution | |
| Wind Speed | Ultrasonic | 0-70m/s | ±2% | 0.01m/s |
| Wind Direction | Ultrasonic | 0-359° | ±3° | 1° |
| Digital output | Interface | RS232/RS485/SDI-12 | ||
| Baud rate | 9600(default) 1200-19200(configurable) | |||
| Frequency | Standard: 1Hz (1 output per second) Customized:5Hz(5 outputs per second) | |||
| protocol | ModBus-RTU/NMEA 0183/SDI-12 | |||
| Analogue output (current output is optional) | Two ways 4-20mA Max.load 500Ω | |||
| Protection grade | IP66 | |||
| Operating Temperature | -40℃ - +70℃ | |||
| Operating Humidity | 0 - 100% | |||

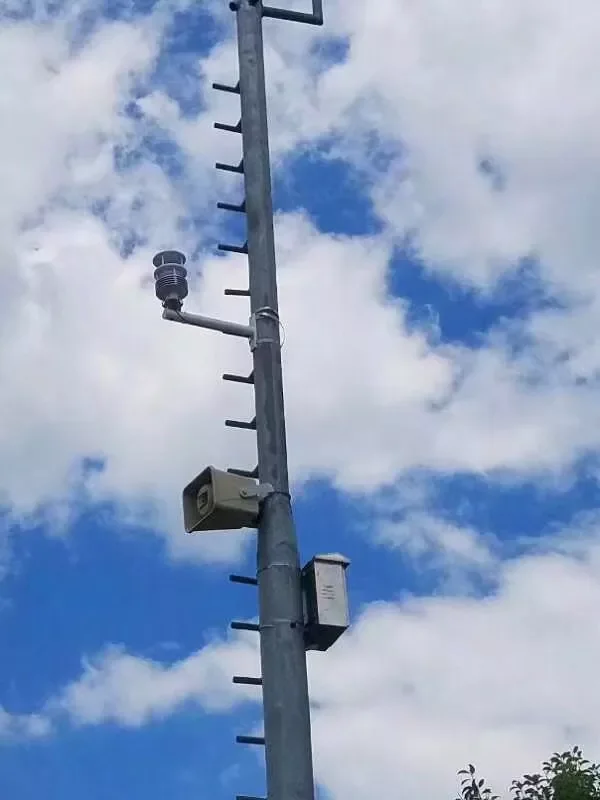

Electric power safety monitoring

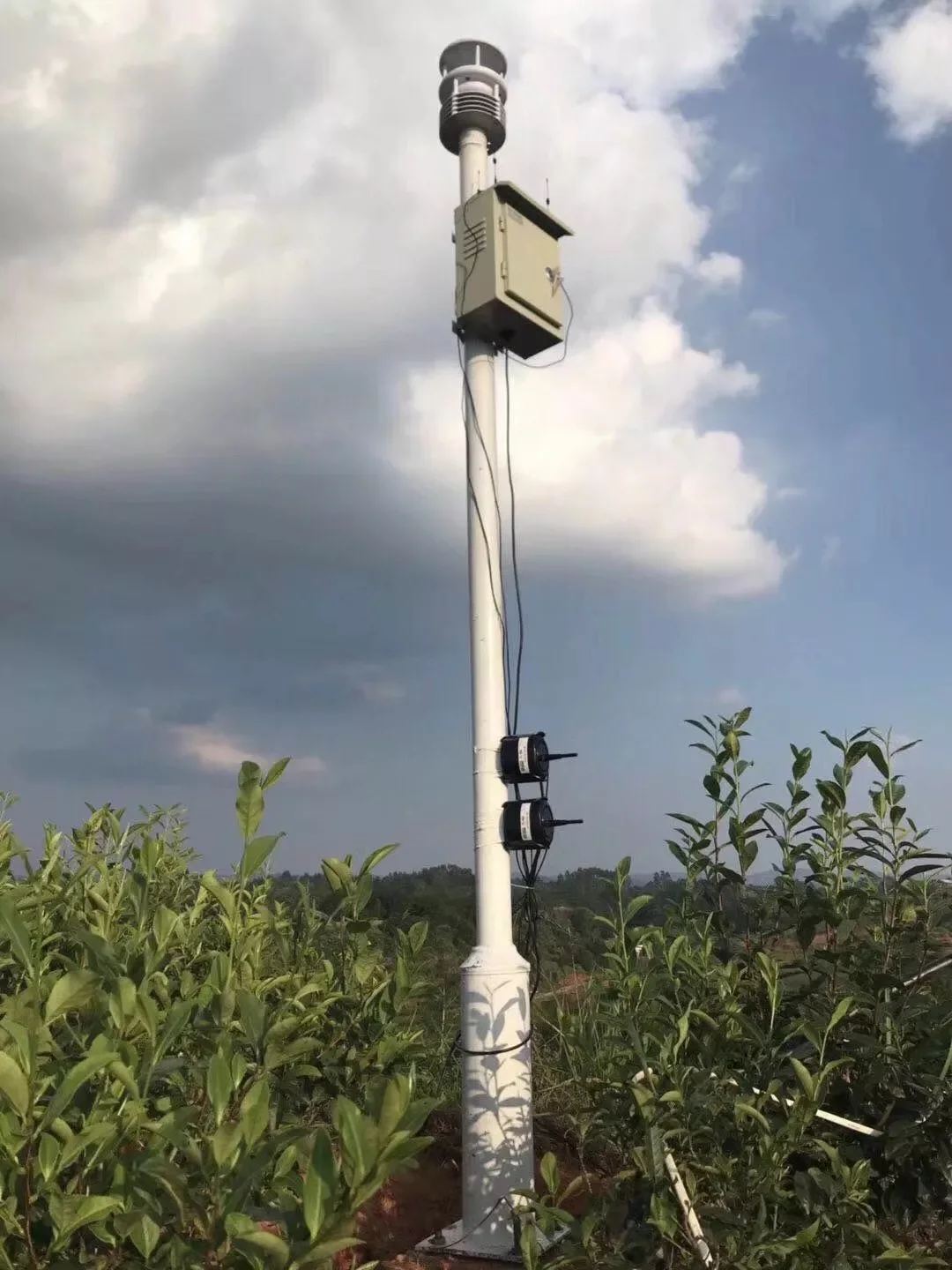

Meteorological monitoring system
