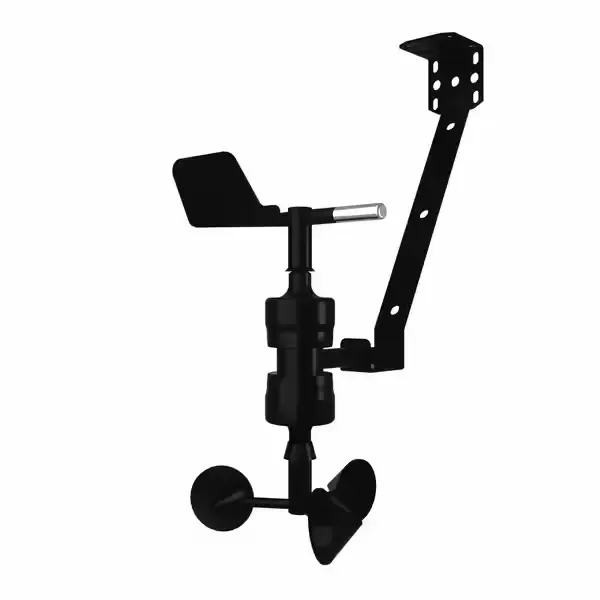

BGT-FSFX-S Integrated Wind Speed & Direction sensor is the highly integrated product of wind speed and direction.Use Aluminum alloy precision mechanical workpiece assembly,high strength,more convenient installation.The wind speed part adopts the traditional three-wind cup structure.The wind cup is made of imported ABS material.High intensity,good start.The precision signal processing unit can output various signals according to the user's demand.With largemeasuring range,good linearity, convenient observation, stability and reliability.The wind direction part is professional meteorological instrument which used to measure horizontal wind direction.Inside useprecision sensors.Adopt low inertia wind vane reponse to the wind direction.When the wind direction changing.The tail fin rotaingshaft rod drive sensor magnet.The Angle sensor sensing changes of magnetic pole position.So produce the varying electrial singal output. The linearity is good,precision is high, does not have the blind Angle, observation is convenient, stable and reliable.
| Test Range | Speed | □ 0～45m/s（current and voltage output） |
| □ 0～70m/s（pulse、485、232 output） | ||
| □ Others | ||
| Direction | 0-359° | |
| Power Supply | □ DC 5V □ DC 9-30V | |
| □Others | ||
| Output signal | Speed Pulse | □ Pulse |
| （Default NPNR □PNP） | ||
| Current | □ 4～20mA □ 0～20mA | |
| Voltage | □ 0～2.5V □ 0～5V □ 1～5V | |
| Series port | □ RS485（□Default Modbus □ASCII） | |
| □ RS232（□Default Modbus □ASCII） | ||
| Others | ||
| Wire length | □ Standard：2.5M □ Others： | |
Further details , please contact us !
