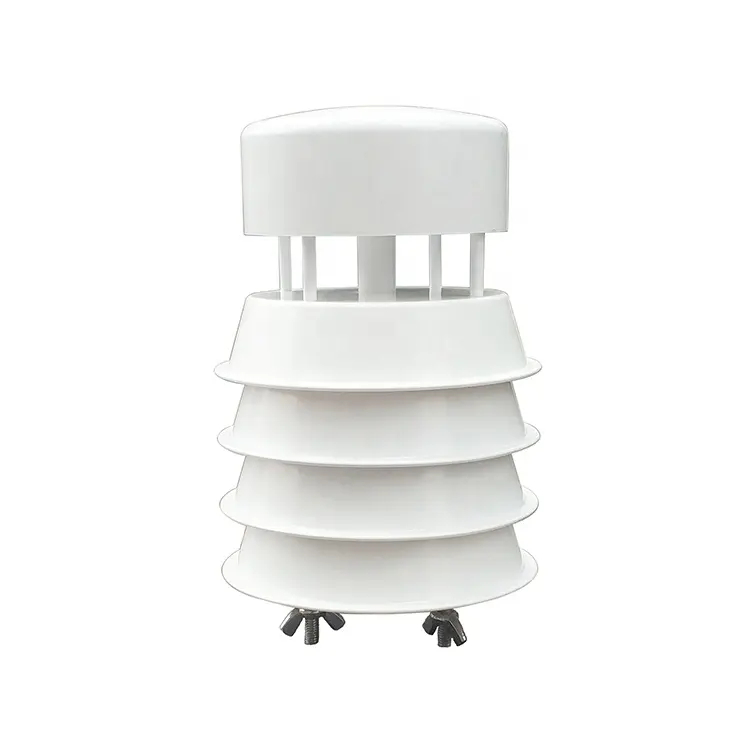

Mini Ultrasonic Wind Speed And Wind Direction Sensor Weather Station

BGT-CF1 The small ultrasonic wind speed and direction sensor is a mini full digital sensor with highly integrated ultrasonic wind speed and direction sensor, small size, high integration, light weight, strong and durable. It support  combined with ultrasonic wind speed and direction sensor, a high precision digital temperature humidity and pressure sensor.
Availability:
Quantity:
Description:
This product does not have any moving parts, does not require on-site maintenance and calibration, and can accurately and quickly detect the wind speed and wind direction of the field environment. The high-strength structure design can be accurately detected in harsh climates, and can be widely used in meteorology, environment and environmental protection, transportation, smart city and industrial inspection, etc.

Model
BGT-CF1
Power supply
DC12-24 v
Signal output
RS485
Protocol
MODBUS
Baud rate
9600
Power consumption
0.3 W.
Working temperature
-40 -- 80 ℃
Working humidity
0-95% RH
Wire Length
2.5M (Standard)
Material
ABS
Ingress Protection
IP65
Wind speed
Measuring range
0 ~40 m/s
Accuracy
±0.5 + 2% FS
Resolution
0.01 m/s
Wind direction
Range
0-359 °
Accuracy
± 3 °
Resolution
1 °

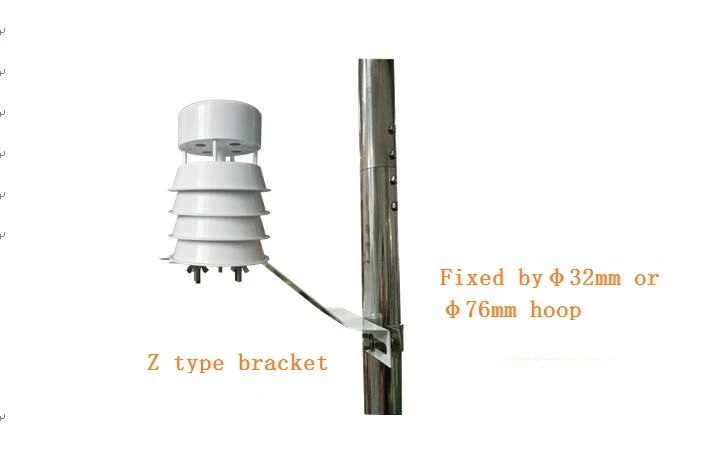

Installation notice:
1.Check frequently to ensure that sensors are not interfered with by other operating equipment that may not fully comply with common standards, such as radio/radar transmitters, ship engines, engines, etc. 2. Do not install in the same plane with any radar scanning device, at least 2M above the distance; 3.It is recommended to keep some distance from the surrounding radio receiving antennas; 4.Use the cable recommended by the company; 5.If there is no correct connection after the cable is cut off, or the cable shielding wire is not properly connected, there is no need to create a ground loop, just wire it according to the installation instructions; 6.Ensure the continuous power supply of the equipment during operation; 7.Avoid the flocculation generated by surrounding buildings such as trees, telegraph poles, tall buildings, etc., which can affect the accuracy of ultrasonic anemometer;

Application:

Electric power safety monitoring
Meteorological monitoring system
Solar and wind generation
Marine vessels & small airports & helipads
 Environment monitoring
Bridge & Tunnel
Agriculture
Further details , please contact us!
