High-precision RS485/4-20mA High-speed Railway Tunnels Monitoring Ultrasonic Wind Speed And Direction Detector

High-precision RS485/4-20mA High-speed Railway Tunnels Monitoring Ultrasonic Wind Speed And Direction Detector

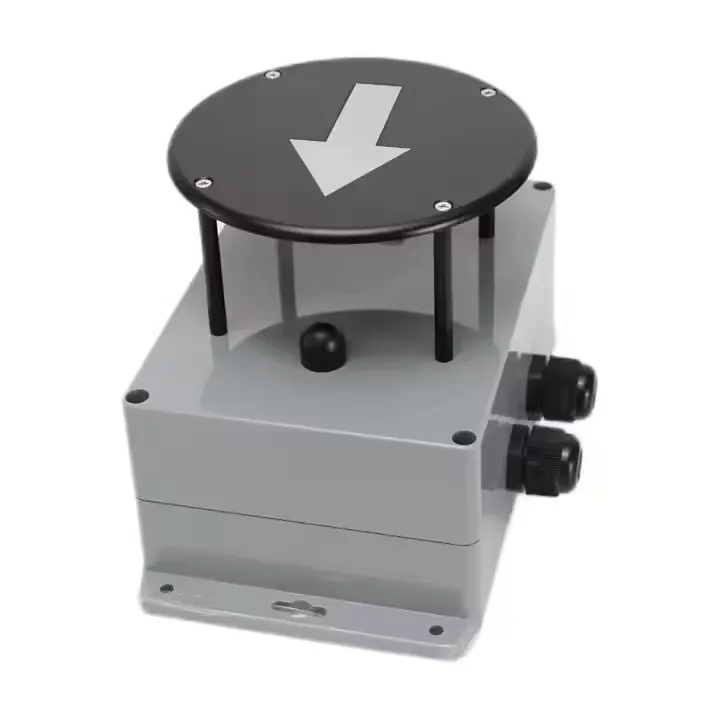

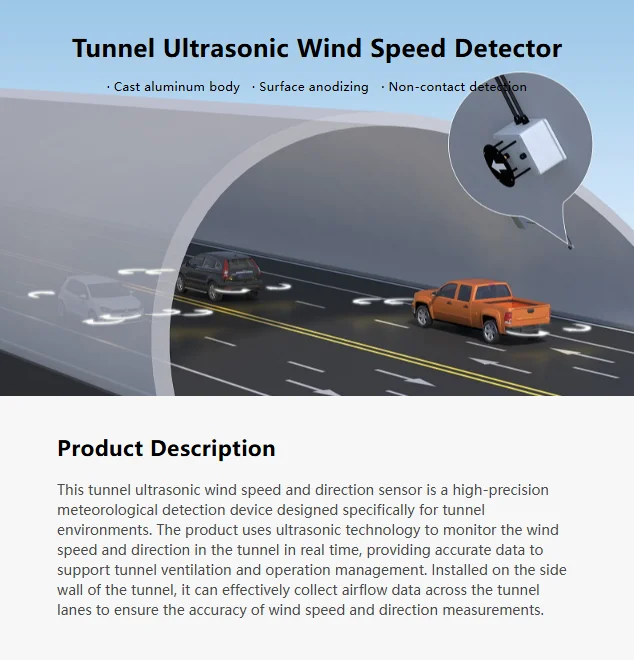

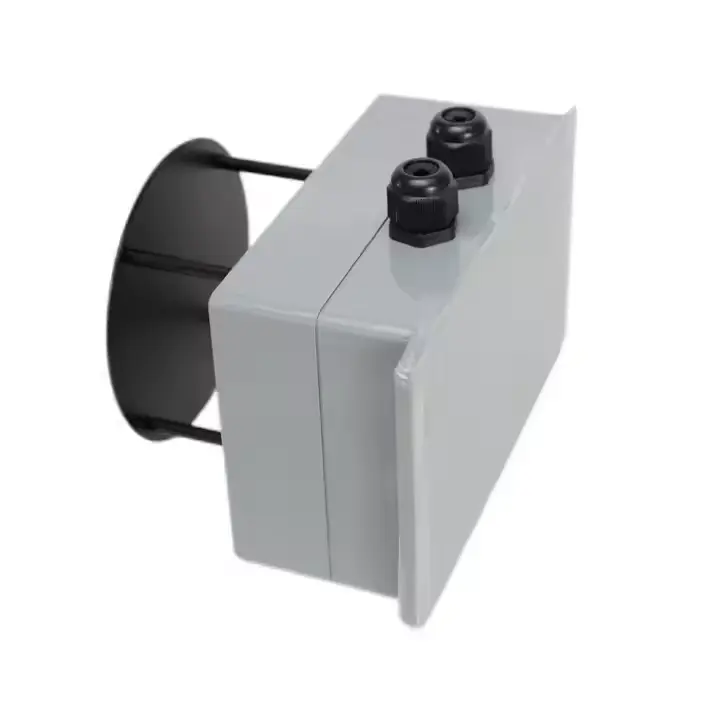

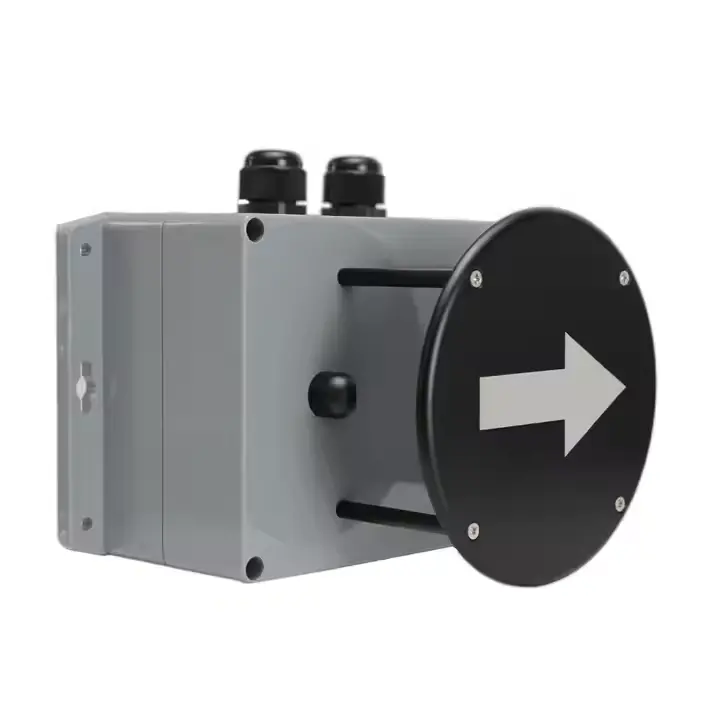

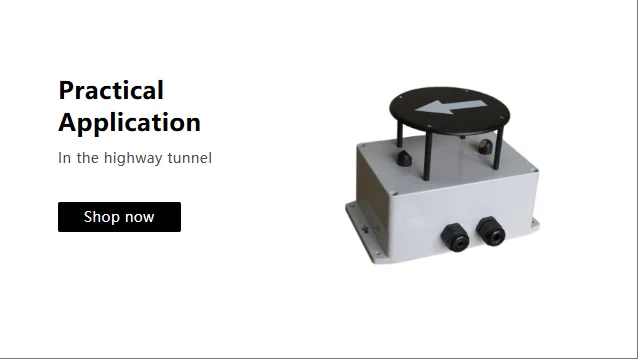

Tunnel Ultrasonic Wind Speed Detector

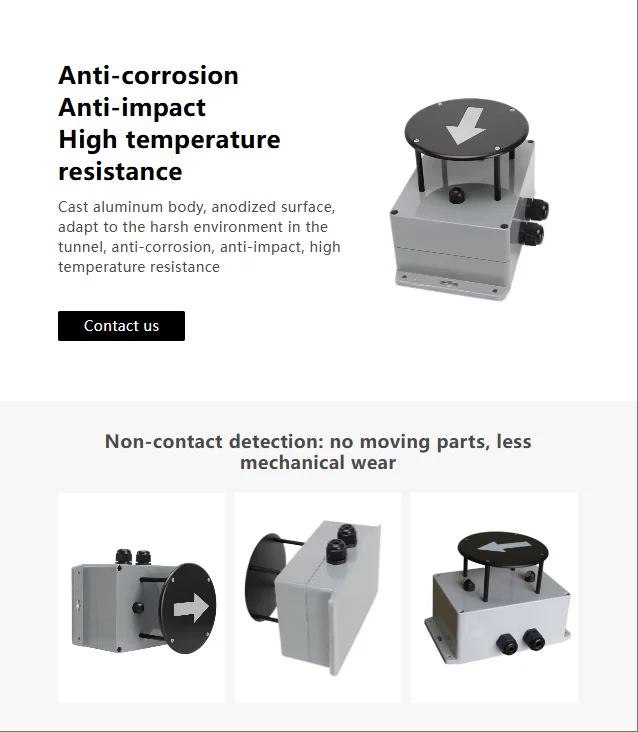

· Cast aluminum body · Surface anodizing · Non-contact dete

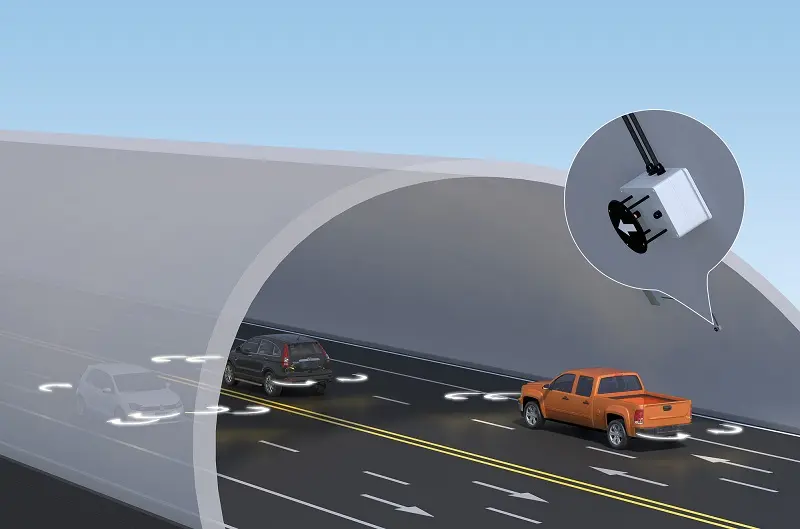

This tunnel ultrasonicwind speed and direction sensoris a high-precision meteorological detection device designed specifically for tunnel
environments. The product uses ultrasonic technology to monitor the wind speed and direction in the tunnel in real time, providing accurate data to

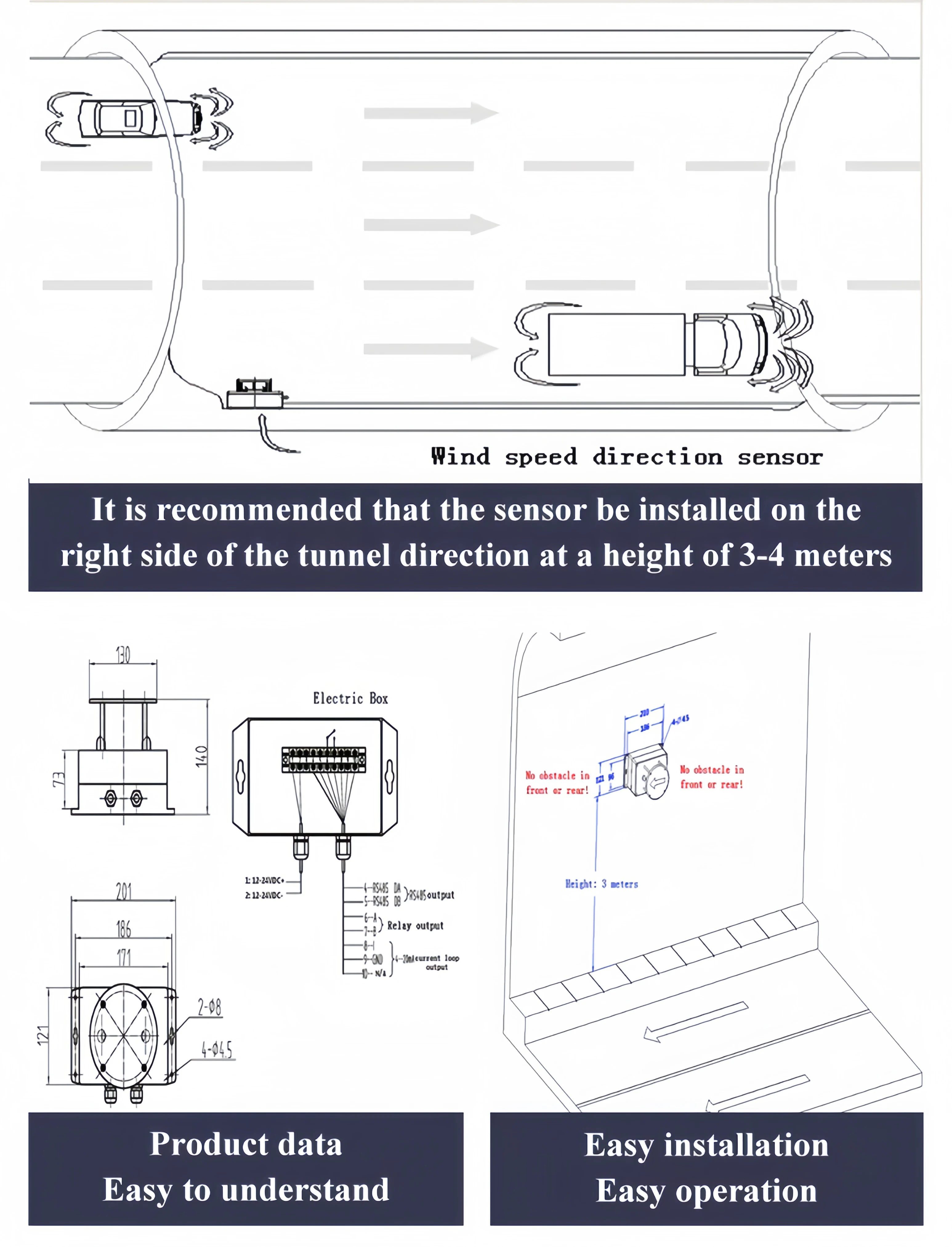

support tunnel ventilation and operation management. Installed on the side wall of the tunnel, it can effectively collect airflow data across the tunnel
lanes to ensure the accuracy of wind speed and direction measurements.

Availability:



Inquire

Wind Speed Direction Sensor Wind Sensors Ultrasonic Anemometer Wind Speed Sensor wind speed indicator anemometer sensor

Product Description

Description：
This ultrasonic anemometer has advantage of light weigh, robust,no moving parts, free of maintenance and calibration on site, simultaneously output wind speed and direction. It can be used in conjunction with a PC, data logger or other device, which has compatible communication protocol with it.

Wind Speed	Range	0- 30m/s
	Accuracy	±2%
	Resolution	0.01m/s
Wind Direction	Angle	Positive and negative
	Resolution	1°
Digital Output		RS485
Analog Output		4-20mA current isolation output, maximum load impedance 500Ω
Protection Level		IP67
Working Temperature		-45℃ - +75℃
Working Humidity		0 - 100%
Power Requirements		220VAC±10%，50Hz/60Hz
Power consumption		1W
