Mini Low Power Consumption Ultrasonic Wind Speed Direction Sensor for Weather Station

Mini Low Power Consumption Ultrasonic Wind Speed Direction Sensor for Weather Station

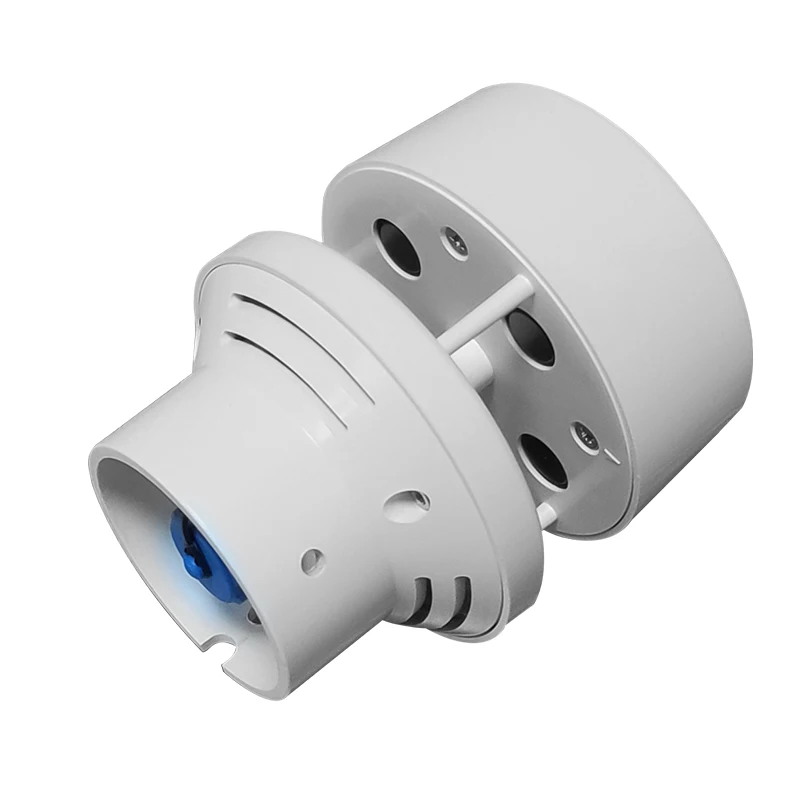

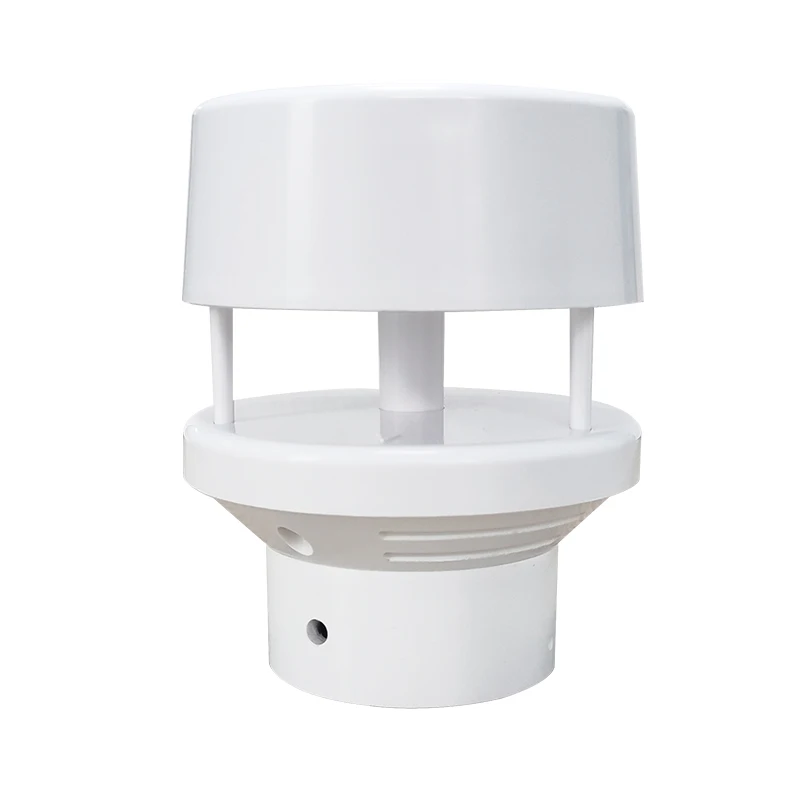

BGT-CF1 ultrasonic anemometer is very robust with no moving parts, maintenance free , simultaneously output wind speed and direction. Each unit is factory calibrated in our wind-tunnel testing lab prior to shipping.

Availability:



Inquire

Product Description

Description：
BGT-CF1 ultrasonic anemometer is very robust with no moving parts, maintenance free , simultaneously output wind speed and direction. Each unit is factory calibrated in our wind-tunnel testing lab prior to shipping.

BGT-CF1 powers up with 3 ... 30 VDC and outputs serial data with a selectable communication protocol: SDI-12, MODBUS-RTU and NMEA 0183. Four alternative serial interfaces are selectable: RS-232, RS-485 and SDI-12. The transmitter is equipped with a 4-pin M12 connector for installation.

Technical specification

configuration	Elements	Measuring range	Accuracy	Resolution	Power consumption
Conventional two elements	Wind speed	0～45m/s	Start wind ≤0.8m/s， ±(0.5+0.02V)m/s；	0.01m/s	0.12W
Conventional two elements	Wind direction	0～360	±3°	1°

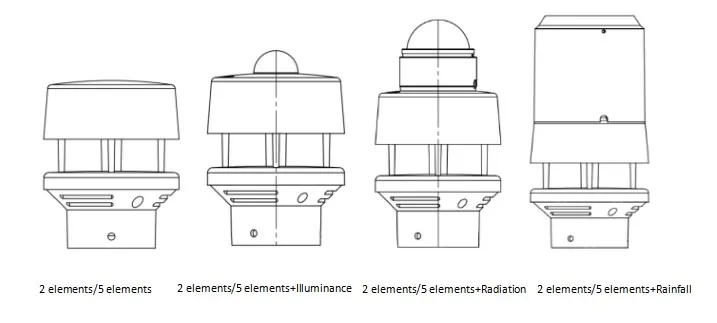

Optional elemetns	□ Air temp	-40～80℃	±0.3℃	0.1℃	1mW
	□ Air humidity	0～100%RH	±5%RH	0.1%RH
	□ Pressure	300～1100hPa	±0.5 hPa（25℃）	0.1 hPa	0.1mW
	□ Compass	0～360	±5°	1°	10mW
Optional elements (You can only choose 1 of 3)	□ Drop sensing rainfall	Measruing range： 0～4.00mm/min	±4%（Indoor static test, rain intensity is2mm/min）	0.03mm	0.24W
	□ illuminance	0～200000Lux	±4%	1 Lux	0.1mW
	□ Radiation	0-1500 W/m2	±3%	1W/m2	400mW
Total power consumption = Optional sensor power consumption + basic mainboard power consumption				Basic power consumption of mainboard	200mW

Application

∎ Agricultural meteorology, ∎ Intelligent street lamp ∎ Scenic area environmental monitoring ∎ Highway meteorological monitoring

Features

∎According to actual need to choose any monitoring elements: wind speed and direction, temperature, humidity, air pressure, rainfall/light/solar radiation; ∎The cost is low, suitable for grid points; ∎The machine power consumption is low, only 0.2 W, especially suitable for occasions of high power consumption requirements; ∎Smal sizel, modular design to facilitate integration and flexible layout

1. Highway

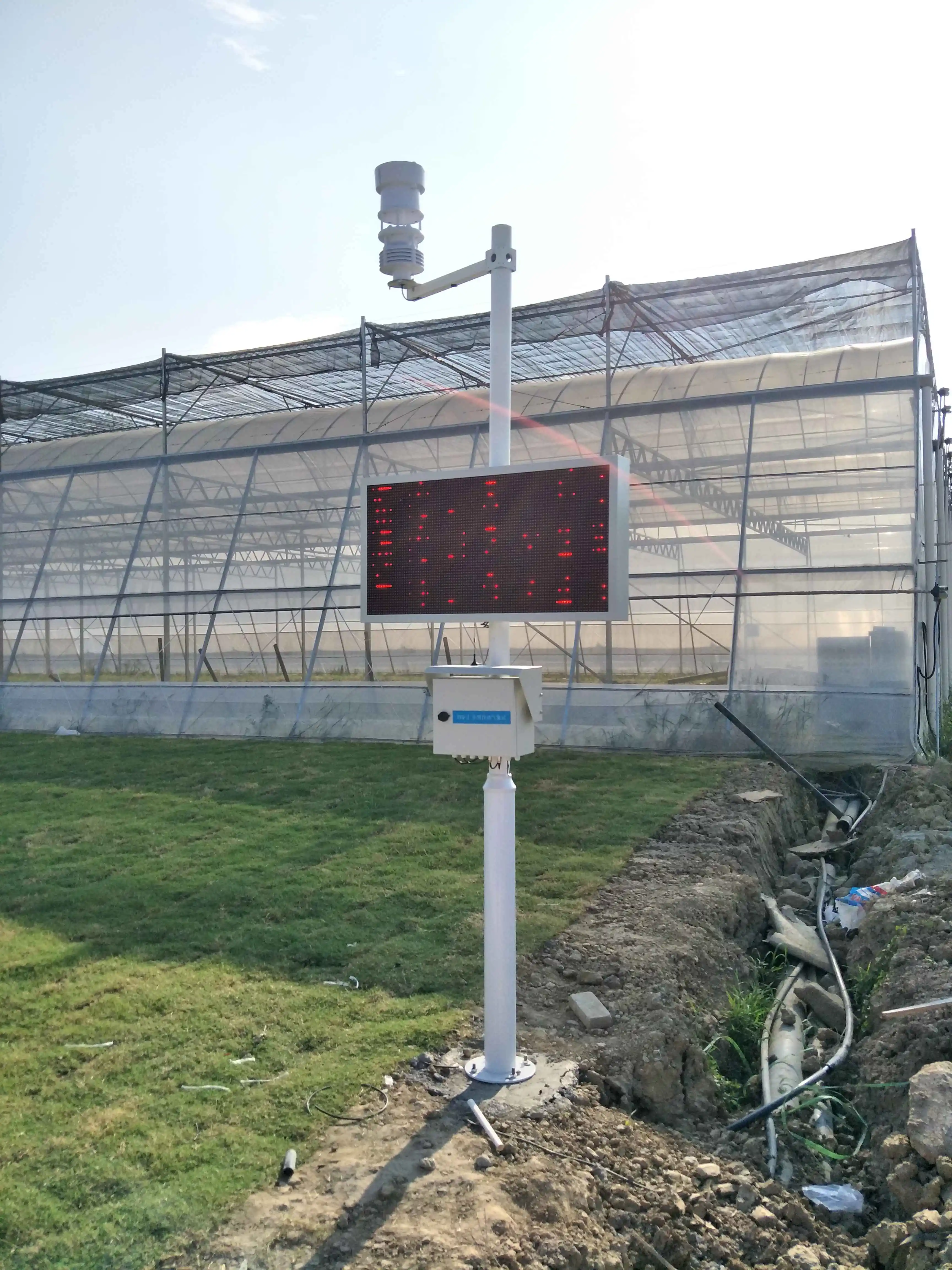

2. Crop weather monitoring
3. Fire weather monitoring
4. Pollution monitoring
5.Bridge monitoring
Further details , please contact us!
