Description: The instrument adopts advanced and reliable integrated circuit which designed to complete the internal signal measurement part.Have the characteristics of simple operation, easy to use. Used to realization of environmental wind speed and direction measurement. This device has two signal output modes (2 choose 1, can not output at the same time). One is RS485 interface output mode based on Modbus protocol; Another is 4-20mA current signal output mode.
When using RS485 output, multiple devices can be connected to a bus to form a measurement network. Each device can set its own address and baud rate (each device must have the same baud rate when networking). Provide test software and detailed instruction manual.

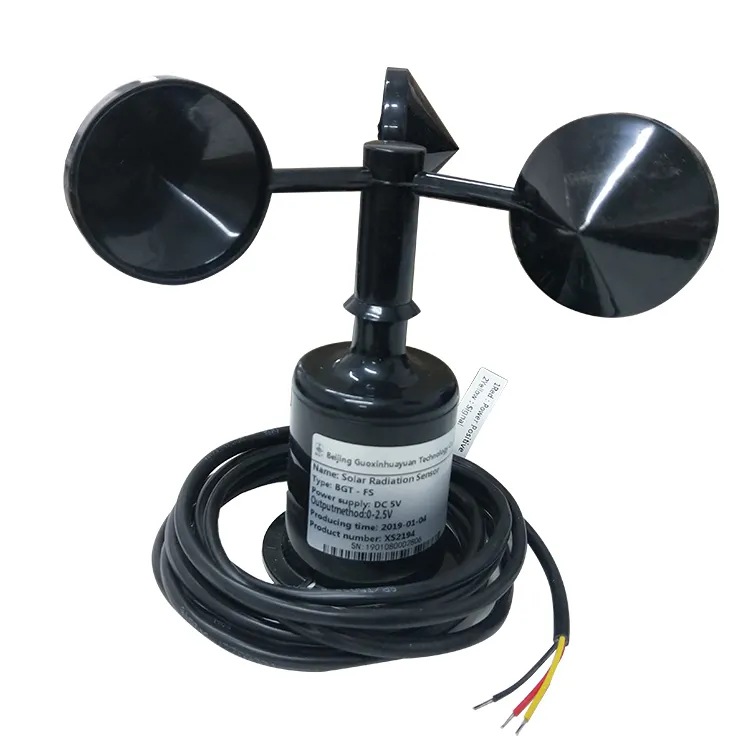

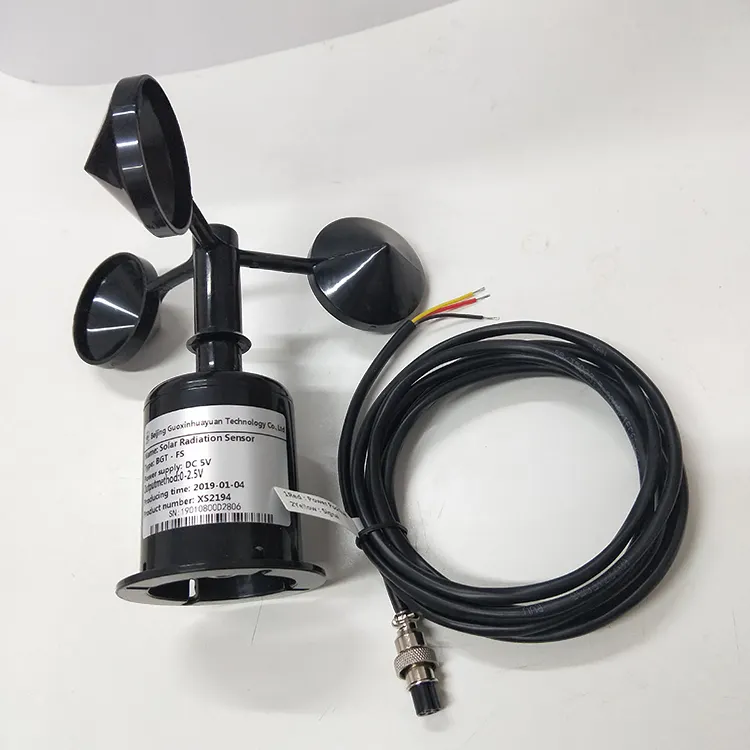

BGT-FS1 Wind Cup Anemometer Wind Speed Meter
Mini type three cup wind speed sensor is used cup wind as sensing components, which is rotated by wind and drives magnetic steel,
the reed switch is working by magnetic steel sensing, output relative electric pulse signals. It's applied in meteorological
stations, environmental protection, traffic areas and so on.

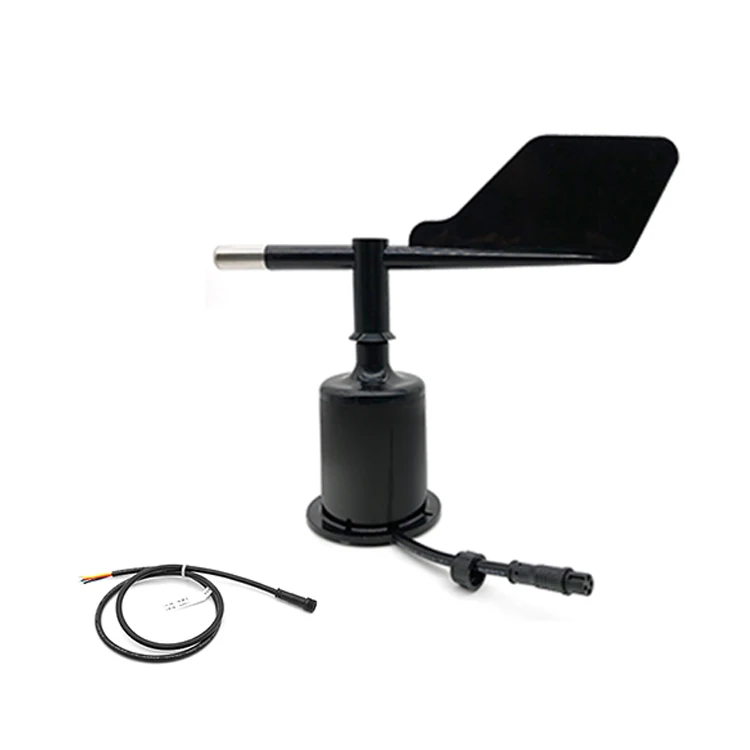

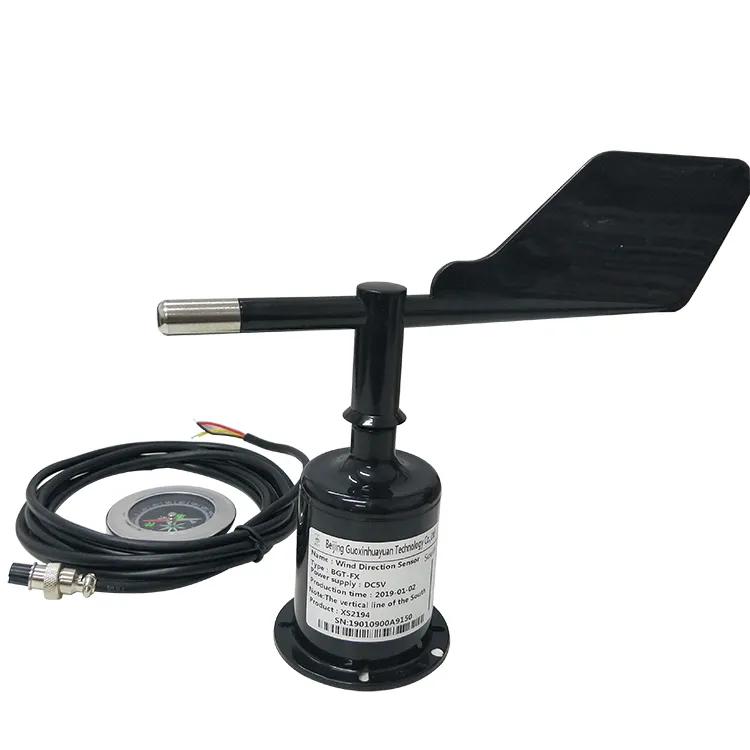

BGT-FX1 Wind Direction Sensor
The interior of the wind direction sensor uses a precision angle sensor, and selects the low inertia ABS wind vane to respond to the wind direction with good dynamic characteristics. The product has the advantages of good linearity, high precision, no dead spots, strong anti-lightning ability, convenient observation, stable and reliable.
It can be widely used in the fields of weather, ocean, environment, airports, ports, laboratories, agriculture, industry and transportation.
When using RS485 output, multiple devices can be connected to a bus to form a measurement network. Each device can set its own address and baud rate (each device must have the same baud rate when networking). Provide test software and detailed instruction manual.
Application:
Weather Station
PV Mornitoring Station
Agriculture
