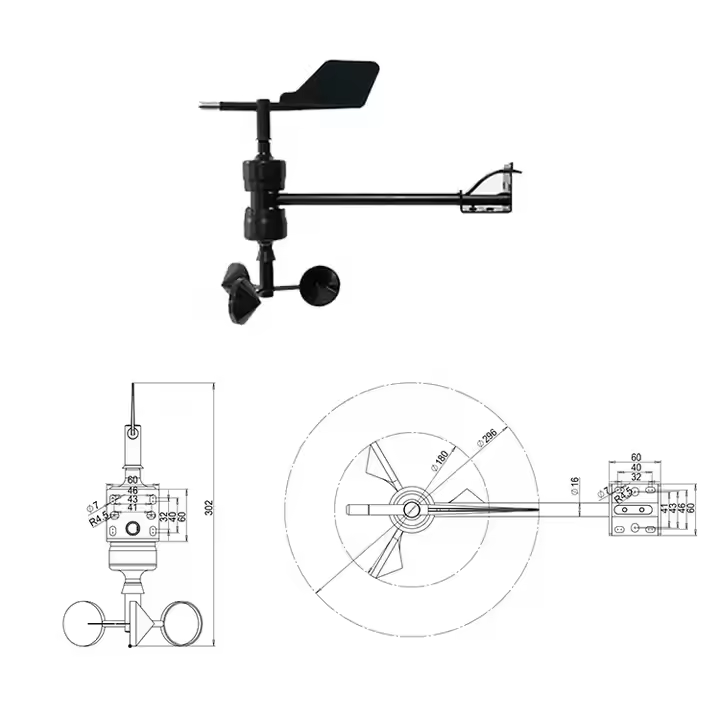

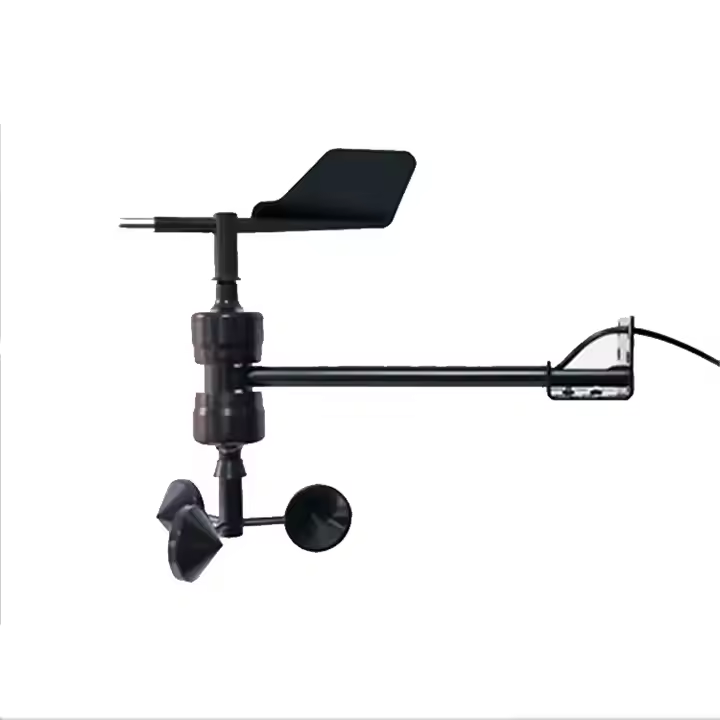

Accurate Wind Monitoring Made Simple with the BGT-FSX1-T Wind Speed and Direction Sensor

BGT-FSX1-T Wind Speed and Direction Sensor is the highly integrated product of wind speed and direction.Use Aluminum alloy precision mechanical workpiece assembly,high strength,more convenient installation.
The wind speed part adopts the traditional three-wind cup structure.The wind cup is made of imported ABS material.High intensity,good start.The precision signal processing unit can output various signals according to the user's demand.With large measuring range,good linearity, convenient observation, stability and reliability.
The wind direction part is professional meteorological instrument which used to measure horizontal wind direction. Inside use precision sensors. Adopt low inertia wind vane response to the wind direction. When the wind direction changing.The tail fin rotating shaft rod drive sensor magnet.The Angle sensor sensing changes of magnetic pole position.So produce the varying electrical signal output. The linearity is good,precision is high, does not have the blind Angle, observation is convenient, stable and reliable.
Availability:
Quantity:
Inquire


◀◀  Key Selling Points  ▶▶


1. High Accuracy & Precision: Offers precise wind speed (±0.3 + 0.03V m/s) and wind direction (±3°) measurements, ensuring reliable data for critical applications.

2. Durable & Robust Construction: Made of high-strength aluminum alloy, ensuring long-term durability and resistance to harsh environmental conditions.

3. Wide Measurement Range: Measures wind speeds from 0 to 70 m/s (pulse/RS485/RS232 output) and wind direction from 0 to 359°, suitable for a variety of applications.

4. Multiple Output Options: Supports analog signals (voltage, current), digital signals (RS485/RS232 with Modbus/ASCII protocols), and pulse signals, providing flexibility for integration into different systems.

5. Low Power Consumption: Operates on a wide voltage range (DC 9-30V / DC 5V), making it energy-efficient and suitable for various power sources.

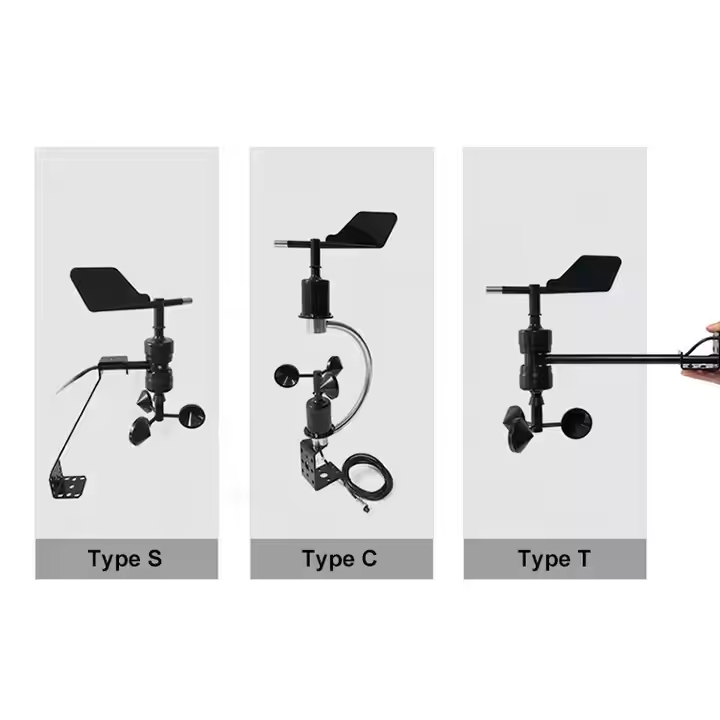

6. Easy Installation: Compact and lightweight design (680g) with multiple installation options (horizontal, vertical, bar-type), ensuring easy setup and deployment.

7. Weatherproof & Reliable: IP64 ingress protection rating ensures reliable performance in harsh weather conditions, including rain, dust, and high humidity.

8. Fast Response Time: Quick response to wind speed and direction changes, with a stable time of <1 second, ensuring real-time data accuracy.

9. Customizable Communication Protocols: Supports both Modbus-RTU and ASCII protocols, allowing seamless integration with PLCs, data loggers, and other industrial systems.

10. Cost-Effective: High performance at a competitive price, making it an economical choice for various industries.


◆◆ Why Choose BGT-FSX1-T?

  • Cost-Effective: High performance at a competitive price, making it an economical choice for various industries.

  • Reliable Performance: Military-grade PCB materials and industrial-grade chips ensure stable performance in challenging environments.

  • Wide Operating Temperature Range: Reliable performance in temperatures from -35°C to 60°C and humidity up to 100% RH.




◀◀  Product Parameters  ▶▶

Wind Speed

Wind Direction

Measuring Range

0～45m/s (Current,voltage output)

0～70m/s (Pulse, RS485/RS232 output)

0-359°

Resolution

0.1m/s

1°

Accuracy

wind speed:±(0.3+0.03V)m/s (V means the real-time wind speed value)

±3°

Starting Wind Speed

≤0.5m/s

Load Capacity

Current output impedance≤350Ω (DC12V power supply)

Current output impedance≤900Ω (DC24V power supply)

Voltage output impedance≥1KΩ.

Operating Environment

Temperature -35°C～60°C; Humidity≤100%RH, No condensation.

Ingress Protection

IP64

Product Weight

680g

Cable Grade

Rated voltage: 300V, 80°C

Maximum Power Consumption

0.48W

Power Supply

DC9~30V / DC5V, or others

Output

Speed Pulse(NPNR/PNP)

Current(4~20mA/0~20mA); Voltage (0~2.5V/1~5V/0~5V);

RS485(Modbus/ASCII); RS232 (Modbus/ASCII); Other




◀◀  Application Scenarios  ▶▶


  • Meteorological Monitoring: Ideal for weather stations and meteorological research, providing accurate wind speed and direction data.

  • Renewable Energy: Suitable for wind farms and solar power plants to optimize energy production based on wind conditions.

  • Construction & Engineering: Used in construction sites, cranes, and high-rise structures to monitor wind conditions for safety.

  • Marine & Ports: Monitors wind conditions in ports, docks, and offshore platforms to ensure safe operations.

  • Agriculture & Greenhouses: Helps in monitoring wind conditions in agricultural fields and greenhouses to protect crops and optimize ventilation.

  • Environmental Monitoring: Used in environmental research to study wind patterns and their impact on ecosystems.

  • Industrial Applications: Monitors wind conditions in factories and industrial facilities for safety and operational efficiency.

  • Aviation & Airports: Ensures safe takeoff and landing by monitoring wind conditions at airports.
