Pool PH Sensors: What They Are, How They Work & Essential Maintenance

pH sensors are vital tools for measuring the acidity or alkalinity of liquids, with pool pH sensors being specialized for maintaining swimming pool water quality. They provide fast, accurate readings to keep pool water in the ideal pH range, ensuring swimmer comfort and sanitizer effectiveness. This guide integrates key knowledge about pool pH sensors, from their fundamentals to practical maintenance.

1. What is a Pool pH Sensor & Understanding pH Scale

A pool pH sensor is a specialized device designed to continuously monitor the acidity or alkalinity of swimming pool water. It detects hydrogen ion (H⁺) concentration in the water and converts it into a readable pH value, supporting real-time water balance adjustments—often pairing with automated dosing systems for convenience.

The pH scale, ranging from 0 to 14, is a logarithmic measure of H⁺ and OH⁻ ion equilibrium in a solution:

• pH 7: Neutral (e.g., pure water);

• Below 7: Acidic (e.g., lemon juice ~pH 2, coffee ~pH 5);

• Above 7: Alkaline (e.g., baking soda water ~pH 9, soap ~pH 10).

For swimming pools, the ideal pH range is 7.2–7.6. This range maximizes disinfectant (e.g., chlorine) effectiveness, prevents skin/eye irritation, and protects pool equipment from scaling or corrosion.

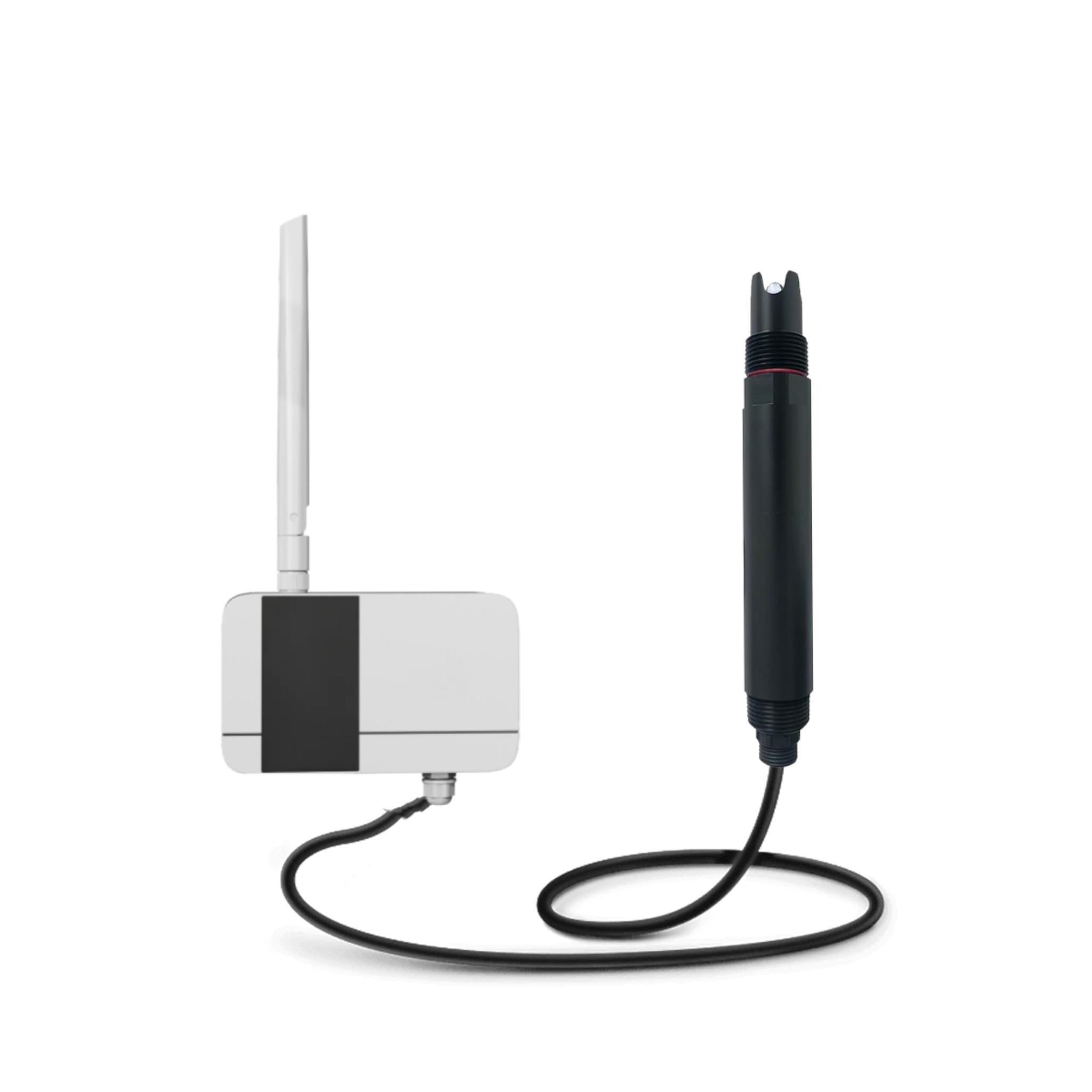

pool ph sensor

2. How Do Pool pH Sensors Work?

Pool pH sensors operate based on electrochemical reactions, with modern designs optimizing for stability and ease of use in pool environments. The working process involves four core steps:

• Electrode System: Most use a combination of a measuring electrode (with an ion-selective glass membrane sensitive only to H⁺ ions) and a reference electrode. Modern types include liquid KCl leakage electrodes (needing regular refilling) and gel electrodes (no refilling, ideal for continuous pool use).

• Potential Difference Generation: When the sensor’s glass tip is submerged in pool water, H⁺ ions react with the membrane’s internal chemicals, creating a small electrical potential difference proportional to the water’s pH.

• Signal Conversion: Advanced electronics detect the millivolt-level signal and convert it into a digital pH reading. Digital sensors (e.g., Memosens) use stable digital signals, enabling lab calibration and quick on-site sensor swaps.

• Connectivity & Output: Sensors can connect wirelessly (Bluetooth) or via wires to pool control systems, enabling automated chemical dosing. Readings are displayed digitally, with response times as fast as 8–10 seconds for real-time monitoring.

3. Types of Pool pH Sensors

Pool pH sensors are categorized by design and use case to suit different pool sizes and management needs:

• Replaceable Electrode Sensors: Ideal for long-term, continuous pool monitoring. Electrodes can be replaced (typically every 1–2 years) without replacing the entire sensor, offering cost-effectiveness.

• Non-Replaceable Sensors: More affordable, suited for short-term use or small pools where frequent monitoring is not required.

• Portable Meters: Handheld digital testers for manual spot checks. Perfect for temporary pools, small residential pools, or supplementary testing alongside permanent systems.

• Permanent/Inline Systems: Installed directly in pool circulation lines for 24/7 continuous monitoring, ideal for large public pools or automated pool management setups.

4. Key Advantages of Pool pH Sensors

Compared to traditional pool pH testing methods (e.g., test strips, chemical kits), pool pH sensors offer significant benefits:

• Accuracy & Speed: Provide precise digital readings in seconds, avoiding the guesswork of test strips and ensuring consistent water balance.

• Swimmer Safety & Comfort: Maintains pH in the 7.2–7.6 range, preventing itchy skin, irritated eyes, and respiratory discomfort from imbalanced water.

• Equipment Protection: Prevents scaling (from high alkalinity) and corrosion (from high acidity) on pool pipes, filters, and heaters, extending equipment lifespan.

• Automation & Convenience: Integrates with automated dosing systems to adjust chemicals in real time, reducing manual labor for pool maintenance.

• Cost-Effectiveness: While upfront costs are higher, they eliminate repeated purchases of test strips/chemicals and reduce repair costs from equipment damage.

• Versatile Monitoring: Advanced models may include temperature compensation to ensure accurate readings in varying pool water temperatures.

5. How to Use a Pool pH Sensor Correctly

Proper usage ensures accurate readings and reliable performance. Follow these simple steps for both permanent and portable sensors:

1. Pre-Use Cleaning: Rinse the sensor tip with clean water to remove any pool debris or chemical residues that could skew readings.

2. Calibration (if needed): Calibrate the sensor before initial use, seasonal restarts, or if readings drift. Use standard buffer solutions (e.g., pH 4, 7) following the manufacturer’s instructions.

3. Deployment: For portable sensors, submerge the glass tip completely in pool water (avoiding air bubbles). For inline systems, ensure proper installation in the circulation line.

4. Wait for Stabilization: Allow 8–10 seconds for the reading to stabilize before recording or acting on the result.

5. Post-Use Care: Rinse the sensor again with clean water. For portable sensors, store it in the recommended storage solution (not distilled water) when not in use.

6. Essential Maintenance for Pool pH Sensors

Regular maintenance extends sensor lifespan and ensures accuracy. Key maintenance tasks include:

Cleaning

• Clean the sensor tip regularly with a soft cloth or specific cleaning solution to remove deposits (e.g., calcium scaling).

• Never rub the glass bulb—use a gentle soak or rinse to avoid damaging the sensitive membrane.

• Tap water is often sufficient for routine cleaning; use manufacturer-recommended solutions for tough contaminants.

Calibration

• Calibrate regularly: monthly for frequent use, quarterly for occasional use, or immediately if readings are inconsistent.

• Use fresh, uncontaminated buffer solutions. Rinse the sensor between calibrations to avoid cross-contamination.

• Check linearity after calibration by testing an intermediate buffer solution (e.g., pH 7) to ensure accuracy.

Storage

• Never store the sensor dry. Use a manufacturer-recommended storage solution (e.g., KCl solution) to keep the electrode hydrated.

• Avoid storing in distilled water or tap water long-term, as this can damage the electrode.

• For winter storage (off-season), follow “winterizing” guidelines to protect the sensor from cold damage.

Handling Precautions

• Avoid dropping or shocking the sensor—its glass bulb is fragile.

• Keep the sensor away from extreme temperatures, highly corrosive chemicals, or very dirty environments, which can cause inaccurate readings.

• Rehydrate dried-out sensors by soaking in KCl solution for 24 hours before use (if possible).

7. Frequently Asked Questions (FAQs)

• How often should I calibrate my pool pH sensor? Calibrate monthly for regular use, quarterly for occasional use, and always after seasonal restarts or if readings drift. Follow manufacturer guidelines for specific models.

• What is the lifespan of a pool pH sensor? With proper maintenance, most sensors last 1–2 years. Replace electrodes (or the entire sensor) if response time slows, readings are inconsistent, or calibration fails.

• Can I use a pool pH sensor in hot tubs or spas? Yes—most pool pH sensors work for hot tubs/spas, but ensure the sensor’s temperature range is compatible (typical limit: 80 °C / 175 °F).

• How to dispose of an old pH sensor? Recycle it through electronic waste (e-waste) collection programs. Separate from regular waste, as sensors contain electronic components that can be recycled.

Conclusion

Pool pH sensors are indispensable for maintaining safe, comfortable, and well-balanced swimming pool water. By understanding their definition, working principle, and proper use/maintenance, pool owners and managers can ensure consistent water quality, protect swimmers and equipment, and reduce manual maintenance efforts. With the right sensor type and regular care, these devices provide reliable performance for years, making them a valuable investment for any pool setup.
