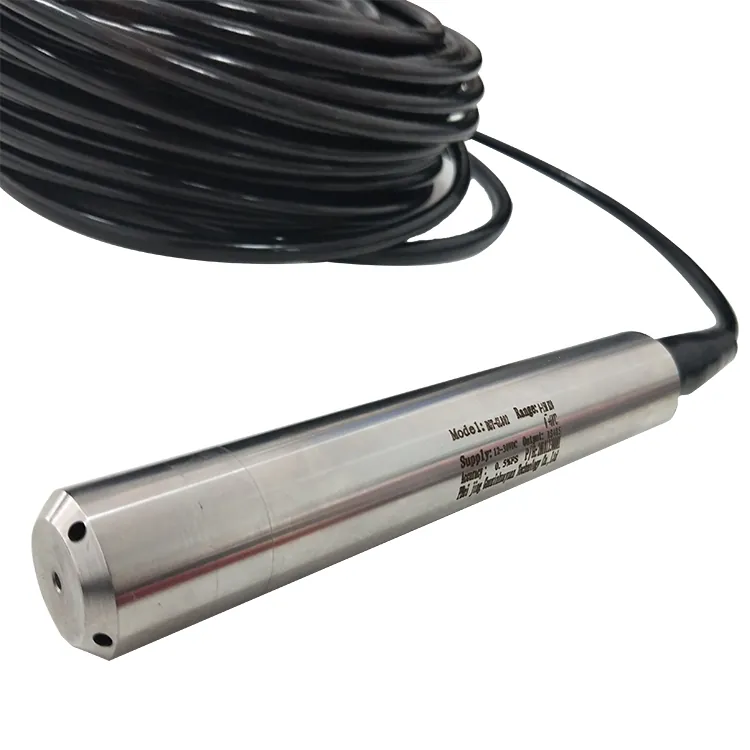

Piezoresistive Water Level Sensor

BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal.

Availability:



Inquire

Water Level Sensor Industrial water level sensor High-precision water level sensor water level meter

Product Description

Product Parameters

Application Scenarios

Description:
BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.
The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.

Key Selling Points

Dual Cutting-Edge Tech
→ Silicon Precision Etching + Wafer Stacking
→ Ensures ultra-stable, drift-free performance
Military-Grade Resilience
→ IP68 Submersible | 316L Stainless Steel Diaphragm & Body
→ Thrives in -20℃~70℃ harsh environments
Lab-Grade Accuracy
→ 0.5% FS standard (Optional 0.2% FS upgrade)
Plug & Play Versatility
→ 5+ signal outputs (4-20mA/RS485/0-5V etc.)
→ Wide voltage support (DC5-24V)
Mega-Range Scalability
→ Measures from 1m to 500m depths

Parameter	Specification
Measuring Range	0~1m / 0~5m / 0~50m / 0~500m (Selectable)
Accuracy	0.5% FS (0.2% FS Customizable)
Protection	IP68 (Fully Submersible)
Temp Range	-20℃ ~ +70℃
Cable Length	5m Standard (Custom Lengths Available)
Material	316L Stainless Steel (Diaphragm & Body)
Power Supply	DC24V / DC12V / DC5V
Output Signals	4-20mA / 0-20mA / RS485 / 1-5V / 0-5V
