What Is A PH Sensor, How It Works & How To Choose PH Sensors/Electrodes

Have you ever wondered how to determine if drinking water is safe, soil is suitable for planting, or industrial process liquids are balanced? The answer lies in a compact yet powerful tool: the pH sensor. This device reveals the invisible chemical property of liquids—their acidity or alkalinity—providing fast, accurate data to support safe and intelligent decisions. Used globally in labs, farms, factories, and environmental monitoring stations, pH sensors are essential for maintaining a clean, healthy, and balanced environment. But what exactly is a pH sensor, how does it work, and how to choose the right one?

1. What is a pH Sensor?

A pH sensor is an electrochemical device that measures the acidity or alkalinity of a liquid. Think of it as a "microscopic chemical detective" that identifies the "chemical personality" of liquids like water, industrial solutions, or soil extracts. The term "pH" stands for "potential of Hydrogen," referring to the concentration of hydrogen ions (H⁺) in the liquid—no scientific background is needed to understand its core function!

Physically, pH sensors resemble small sticks with sensitive glass tips. When dipped into a liquid, they transmit data to a display, showing a numerical value between 0 and 14—the standard pH scale.

2. Understanding the pH Scale

The pH scale (0–14) is a straightforward measure of acidity and alkalinity:

• 7 = Neutral: Pure water falls into this category, neither acidic nor alkaline.

• Below 7 = Acidic: The lower the number, the stronger the acid. Examples include lemon juice (around pH 2) and coffee (around pH 5).

• Above 7 = Alkaline (Basic): The higher the number, the stronger the alkalinity. Examples include baking soda water (around pH 9) and soap (around pH 10).

Extreme values (e.g., battery acid at pH 1, household bleach at pH 12) are highly potent and rarely encountered in routine applications. For most practical uses: drinking water (pH 6.5–8.5), swimming pools (pH 7.2–7.6), plant soil (pH 6.0–7.0), and fish tanks (pH 6.8–7.6) are the optimal ranges.

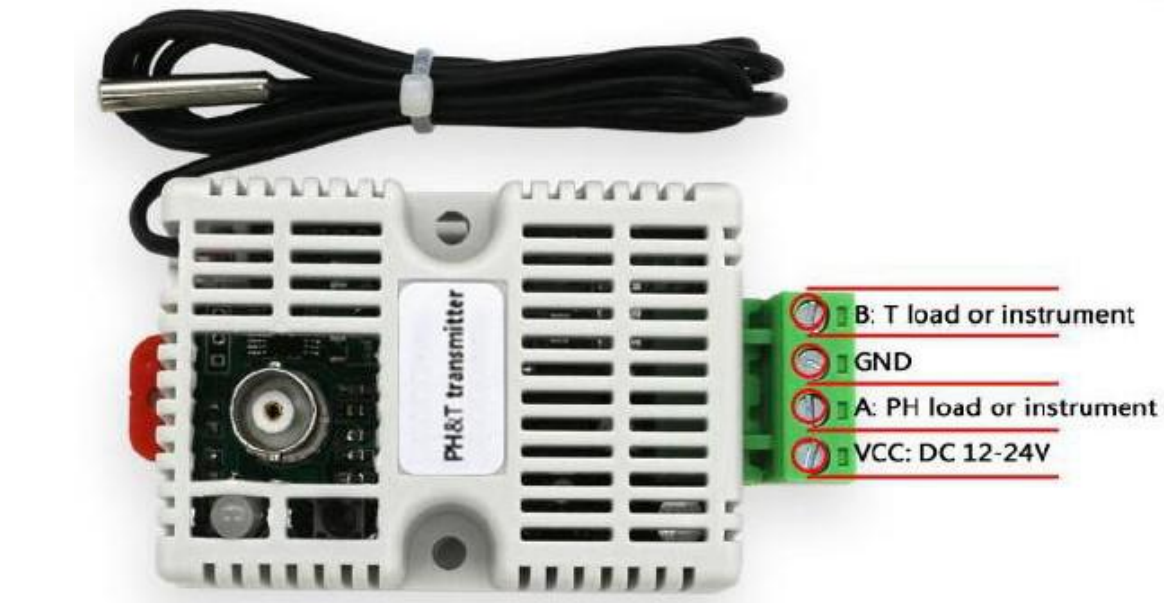

water ph sensor

3. How Does a pH Sensor Work?

The working principle of a pH sensor relies on simple electrochemical reactions, which can be broken down into 4 key steps:

3.1 Glass Tip Chemistry

The sensor’s glass tip contains an ion-selective glass membrane—special materials that only react to hydrogen ions. When the tip touches the liquid, hydrogen ions interact with the membrane, triggering a measurable chemical change.

3.2 Generating Electrical Signals

This chemical reaction produces a tiny electrical voltage (measurable in millivolts). While imperceptible to humans, the sensor’s advanced electronics can detect this signal with high precision.

3.3 Converting Signals to Numbers

Internal circuits translate the electrical voltage into a pH value using the Nernst Equation. This value is then displayed digitally on the device, ranging from 0 to 14.

3.4 Rapid Response

The entire process is lightning-fast—most high-quality pH sensors deliver accurate readings in just 8–10 seconds, making them ideal for real-time and continuous monitoring.

A simple analogy: Just as your tongue tastes sweet, sour, or bitter, a pH sensor "chemically tastes" the liquid and translates that "taste" into a precise numerical value.

4. Main Types of pH Sensors

Like tools designed for specific tasks, pH sensors come in various types to adapt to different environments and applications. The main categories are:

4.1 Basic pH Sensors

User-friendly and cost-effective, suitable for daily tasks such as garden soil testing, swimming pool maintenance, or home aquariums.

4.2 Industrial pH Sensors

Built tough to withstand harsh conditions (chemical exposure, high pressure, complex wastewater). Widely used in factories, power plants, and water treatment facilities.

4.3 Submersible pH Sensors

Fully waterproof, designed to stay submerged for long periods. Ideal for lakes, rivers, aquaculture tanks, and environmental monitoring stations.

4.4 High-Temperature pH Sensors

Made with heat-resistant materials, suitable for processes involving hot liquids (e.g., food processing, fermentation, industrial high-temperature operations).

4.5 Multi-Parameter pH Sensors

Advanced sensors that measure not only pH but also temperature, dissolved oxygen, conductivity, or turbidity. Perfect for detailed water quality analysis in labs, aquaculture, or environmental monitoring.

4.6 Specialized pH Sensors

Including combination sensors (integrating measuring and reference electrodes), differential sensors (with three electrodes to prevent contamination), and laboratory-grade sensors (lightweight for low-demand tasks like environmental sampling).

5. Guide to Choosing pH Electrodes

Selecting the right pH electrode is critical for measurement accuracy and efficiency. Using incompatible electrodes can lead to inaccurate results and increased costs. Common electrode types and their applications are as follows:

5.1 Glass Electrodes

Composed of a special glass membrane, reference electrode, and buffer solution. Offers high accuracy and fast response, less affected by water color, turbidity, or salinity. Suitable for bioengineering, pharmaceuticals, chemical processing, and electronics industries.

5.2 Combination Electrodes

Integrates a glass measuring electrode and a reference electrode into one unit, often with a built-in temperature sensor. Compact and easy to use, ideal for routine laboratory testing and industrial online monitoring.

5.3 Desulfurization Electrodes

Features a maintenance-free gel design, suitable for high-temperature or high-pH environments. The flat surface is easy to clean, widely used in mineral slurries and flue gas desulfurization processes.

5.4 PTFE Electrodes

Made of polytetrafluoroethylene, with excellent resistance to strong acids and alkalis. Equipped with a circular protective ring to safeguard the glass bulb, suitable for industrial wastewater, highly corrosive environments, and heavily contaminated water.

5.5 Antimony Electrodes

Uses metallic antimony (Sb) as the sensing material, with an oxide film (Sb₂O₃) on the surface that reacts with hydrogen ions. Highly corrosion-resistant, ideal for measuring highly corrosive solutions (e.g., those containing hydrofluoric acid).

5.6 Electroplating Electrodes

Adopts a dual-junction design to reduce reference electrolyte contamination. The extended reference diffusion path extends service life in harsh environments, suitable for electroplating wastewater, fermentation processes, and high-organic-content environments.

6. Key Applications of pH Sensors

pH sensors have a wide range of applications, covering multiple fields that are closely related to life and industry:

• Water Quality Monitoring: Testing drinking water, pool water, lake water, and wastewater to ensure safety and compliance.

• Soil Health Testing: Determining soil pH to ensure optimal conditions for crop growth.

• Food Safety: Used by food companies to test products for safety and shelf life before sale.

• Industrial Processes: Monitoring chemical reactions in factories to ensure process stability and product quality.

• Environmental Monitoring: Helping scientists detect pollution in rivers, lakes, and oceans through pH changes.

• Medical Applications: Used in hospitals to test body fluids and ensure the normal operation of medical devices.

7. Advantages of Using pH Sensors

Compared to traditional testing methods (e.g., test strips), pH sensors offer obvious advantages:

• Speed & Accuracy: Provides exact numerical results in seconds, while test strips are slower and less precise.

• Ease of Use: Simple to operate after basic learning, no need for complex chemical mixing.

• Cost-Effective: Although the initial investment is higher, it has a long service life and avoids repeated purchases of test strips or chemicals.

• Adaptability to Harsh Conditions: Can work in hot, cold, or dirty liquids where traditional tests fail.

• Continuous Monitoring: Can be left in liquids for long-term real-time monitoring (impossible with test strips).

• Digital Recording: Modern sensors can connect to computers or mobile phones to automatically save test results.

8. How to Use a pH Sensor Correctly

Using a pH sensor is simple, but following the correct steps ensures accurate results:

8.1  Clean the sensor: Rinse with clean water before testing to remove residual contaminants.

8.2  Calibrate if necessary: Adjust the sensor using standard buffer solutions (pH 4, 7, 10) to ensure accuracy.

8.3  Dip the sensor: Fully submerge the glass tip in the liquid to be tested.

8.4  Wait for the reading: Allow 8–10 seconds for the result to stabilize.

8.5  Record the result: Write down or save the pH value digitally.

8.6  Clean again: Rinse the sensor after testing to extend its service life.

9. Advanced Features of Modern pH Sensors

Modern pH sensors are equipped with advanced features that enhance usability and performance:

• Temperature Compensation: Automatically adjusts readings for temperature changes, ensuring accuracy in hot or cold liquids.

• Waterproof Design: Fully waterproof for submersible use, ideal for outdoor applications.

• Wireless Connectivity: Some models can transmit data to mobile phones or computers wirelessly.

• Long Battery Life: Newer sensors can operate for months on a single charge.

• Multi-Parameter Measurement: Simultaneously monitors pH, temperature, and other water quality indicators.

10. FAQs About pH Sensors

Q1: How often should I calibrate a pH sensor?

Calibrate regularly to maintain accuracy: Daily use → once a month; weekly use → once a week; occasional home use → every 2–3 months. If the sensor responds slowly or shows abnormal readings, calibrate immediately.

Q2: What is the ideal measurement range of a pH sensor?

Most pH sensors cover 0–14 pH, but perform best between 2–12 pH. Specific applications have optimal ranges: drinking water (6.5–8.5), pools (7.2–7.6), plants (6.0–7.0), fish tanks (6.8–7.6).

Q3: What is the service life of a pH sensor?

A well-maintained, regularly calibrated pH sensor typically lasts 1–2 years. Factors affecting lifespan include usage frequency, storage/cleaning practices, and exposure to strong acids or extreme temperatures.

Q4: Can pH sensors be used in hot water?

Most pH sensors have a maximum temperature limit of 80°C (175°F), but specialized high-temperature models can measure hotter liquids. Always check the sensor’s temperature range to avoid damage and ensure accuracy.

11. Conclusion

pH sensors are invaluable tools that reveal the invisible chemical properties of liquids. Whether for a homeowner testing pool water, a farmer checking soil health, or a scientist monitoring water quality, they deliver accurate, reliable, and fast results. Understanding what pH sensors are, how they work, and how to choose the right type/electrode is key to maximizing their value. By using and maintaining them correctly, you can ensure the safety of water and products, optimize industrial processes, and protect the environment.
