What Is A PH Sensor, Its Types, And How To Choose PH Electrodes for Water Quality Monitoring

pH sensors are indispensable tools for measuring the acidity or alkalinity of liquids, playing a crucial role in water quality monitoring. From ensuring drinking water safety to optimizing industrial processes and protecting aquatic ecosystems, these devices provide fast and accurate data to support informed decisions. This article integrates key knowledge about pH sensors, covering their fundamentals, types, applications, and electrode selection guidelines.

1. What is a pH Sensor & Understanding the pH Scale

A pH sensor is a specialized device designed to detect the concentration of hydrogen ions (H⁺) in a liquid and convert it into a measurable pH value, indicating the solution's acidity or alkalinity. The term "pH" refers to the "potential of Hydrogen," reflecting the number of hydrogen ions present in the liquid.

The pH scale ranges from 0 to 14, with clear divisions:

• pH 7: Neutral, typical of pure water;

• Below pH 7: Acidic, e.g., lemon juice (around 2) and coffee (around 5); the lower the value, the stronger the acidity;

• Above pH 7: Alkaline (basic), e.g., baking soda water (around 9) and soap (around 10); the higher the value, the stronger the alkalinity.

For water quality monitoring, the ideal pH range for drinking water is 6.5-8.5, which is critical for human health and aquatic organism survival. Practical applications rarely see solutions with an exact pH of 0 or 14.

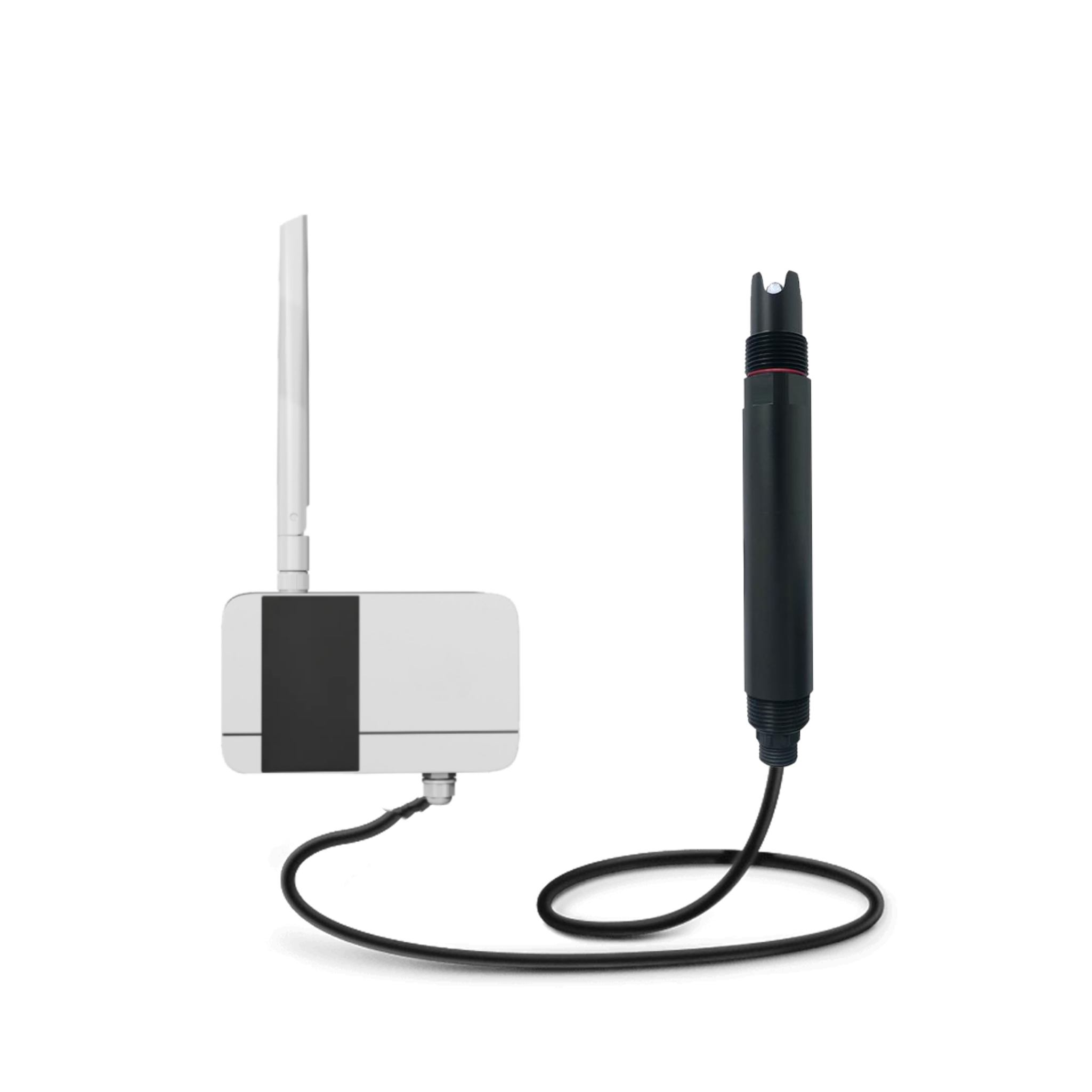

water ph level sensor

2. How Does a pH Sensor Work?

The working principle of a pH sensor is based on electrochemical reactions, with the process simplified into three core steps:

• Electrode Composition: A typical pH sensor consists of a measuring electrode (with an ion-selective glass membrane sensitive only to hydrogen ions) and a reference electrode that maintains a stable baseline voltage. Some advanced models integrate these two into a single combination electrode, often with a built-in temperature sensor.

• Voltage Generation: When the sensor's glass tip is submerged in the liquid, hydrogen ions in the solution react with the special chemicals inside the glass membrane, creating a small voltage difference across the membrane. This voltage is directly proportional to the liquid's pH level.

• Signal Conversion & Display: The sensor's internal electronics detect the millivolt-level voltage signal, convert it into a digital pH value through circuits, and display the result (ranging from 0-14) on a screen. Most modern pH sensors provide readings in 8-10 seconds, enabling real-time monitoring.

3. Main Types of pH Sensors

pH sensors are categorized by application scenarios and structural designs to adapt to different environmental requirements. The main types include:

• Basic pH Sensors: User-friendly and cost-effective, suitable for daily tasks such as garden soil testing, swimming pool water monitoring, and educational experiments.

• Industrial pH Sensors: Ruggedly built to withstand harsh conditions like chemical exposure, high pressure, and complex wastewater environments. Widely used in factories, power plants, and water treatment facilities.

• Submersible pH Sensors: Fully waterproof with an IP68 protection rating, designed for long-term underwater deployment. Ideal for lakes, rivers, aquaculture tanks, and environmental monitoring stations.

• High-Temperature pH Sensors: Made of heat-resistant materials, suitable for processes involving hot liquids such as food processing, fermentation, and high-temperature industrial operations.

• Multi-Parameter pH Sensors: Advanced devices that measure not only pH but also other water quality indicators (e.g., temperature, dissolved oxygen, turbidity), enabling comprehensive water quality analysis.

• Differential pH Sensors: Equipped with three electrodes (including a metal ground electrode), minimizing contamination of the reference system for high durability and reliability in complex environments.

4. pH Sensor Applications in Water Quality Monitoring

pH sensors play a vital role in various water quality monitoring scenarios, supporting safety control and process optimization:

• Drinking Water Monitoring: Ensuring the pH value stays within 6.5-8.5 to guarantee water safety and taste, preventing the leaching of harmful metals from pipes.

• Wastewater Treatment: Monitoring and controlling pH levels during treatment processes to ensure compliance with environmental discharge standards.

• Aquatic Ecosystem Protection: Tracking pH changes in lakes, rivers, and oceans to safeguard aquatic organisms, as most are highly sensitive to pH fluctuations.

• Agricultural Irrigation: Optimizing the pH of irrigation water to improve crop growth conditions.

• Industrial Water Management: Maintaining appropriate pH levels in chemical production, power generation, and other industrial processes to ensure product quality and operational safety.

5. Advantages of pH Sensors for Water Quality Testing

Compared to traditional testing methods (e.g., test strips), pH sensors offer distinct advantages for water quality monitoring:

• Speed & Accuracy: Providing precise digital readings in seconds, outperforming test strips in both speed and accuracy.

• Easy Operation: No specialized technical expertise required, with simple steps for use and calibration.

• Cost-Effective Long-Term: Though with a higher upfront cost, they have a long service life and eliminate the need for repeated purchases of test strips or chemicals.

• Adaptability to Harsh Conditions: Suitable for use in hot, cold, or dirty water environments where traditional tests may fail.

• Continuous Monitoring & Digital Recording: Supporting 24/7 continuous monitoring and automatic data storage via computer or mobile device connectivity.

• Flexible Installation: Optional customized cable lengths and mounting brackets, compatible with various monitoring system integrations (with dual output signals like 4-20mA and RS485 available).

6. How to Use a pH Sensor Correctly

Proper usage ensures accurate and reliable measurements. Follow these simple steps:

1. Clean the sensor with pure water before testing to avoid contamination.

2. Calibrate if necessary using standard buffer solutions (calibration frequency depends on usage: monthly for daily use, weekly for weekly use, and every 2-3 months for occasional home use).

3. Submerge the glass tip completely in the water sample.

4. Wait 8-10 seconds for a stable reading.

5. Record the result digitally or manually.

6. Rinse the sensor again with pure water after testing and store it properly.

7. Guide to Choosing the Right pH Electrode

Selecting the appropriate pH electrode is critical for measurement accuracy and efficiency. Below are common electrode types and selection guidelines:

Common pH Electrode Types

• Glass Electrode: High accuracy and fast response, less affected by water color, turbidity, or salinity. Suitable for corrosive environments like bioengineering, pharmaceuticals, and chemical processing.

• Combination Electrode: Integrates measuring and reference electrodes into one unit with a built-in temperature sensor. Compact and easy to use, ideal for routine laboratory testing and industrial online monitoring.

• Desulfurization Electrode: Maintenance-free gel design, accurate in high-temperature or high-pH environments. Easy to clean, suitable for mineral slurries and flue gas desulfurization processes.

• PTFE Electrode: Excellent resistance to strong acids and alkalis, with a protective ring for the glass bulb. Suitable for industrial wastewater and heavily contaminated water bodies.

• Antimony Electrode: High corrosion resistance, ideal for measuring highly corrosive solutions (e.g., those containing hydrofluoric acid).

• Electroplating Electrode: Dual-junction design reduces reference electrolyte contamination, with a long service life in harsh environments like electroplating wastewater and fermentation processes.

Key Selection Factors

• Application Environment: Choose electrodes based on temperature, pressure, and solution corrosiveness (e.g., high-temperature electrodes for hot liquids, PTFE electrodes for strong acids/alkalis).

• Measurement Accuracy Requirements: Select high-precision electrodes (e.g., glass electrodes) for scenarios needing detailed data analysis.

• Solution Characteristics: Consider solution turbidity, viscosity, and organic content (e.g., differential electrodes for unstable media).

• Installation & Integration Needs: Ensure compatibility with existing monitoring systems, considering output signals and protection ratings.

8. Frequently Asked Questions (FAQs)

• How often should a pH sensor be calibrated? Calibrate regularly to maintain accuracy: monthly for daily use, weekly for weekly use, and every 2-3 months for occasional home use. Calibrate immediately if the sensor responds slowly or shows unusual readings.

• What is the typical pH measurement range of a pH sensor? Most sensors cover 0-14 pH, with the most useful range being 2-12 pH. Specific ideal ranges: drinking water (6.5-8.5), swimming pools (7.2-7.6), plants (6.0-7.0), and fish tanks (6.8-7.6).

• What is the service life of a pH sensor? A well-maintained and regularly calibrated quality pH sensor has a service life of 1-2 years. Factors affecting lifespan include usage frequency, storage practices, cleaning methods, and exposure to strong acids or extreme temperatures.

• Can pH sensors be used in hot water? The general temperature limit is 80 °C (175°F), but high-temperature-specific sensors are available for hotter liquids. Always check the sensor's temperature range to avoid damage.

Conclusion

pH sensors are foundational tools for water quality monitoring, providing critical data to ensure water safety, protect ecosystems, and optimize industrial processes. Understanding their definition, working principle, types, and correct usage is essential for selecting the right device. By choosing appropriate pH electrodes based on application needs and following proper maintenance practices, users can maximize measurement accuracy and operational efficiency, making pH sensors a valuable investment for any water quality management task.
