What Is a Water Level Sensor & How Does It Work?

Water sensors and water level sensors are pivotal components in liquid monitoring systems, serving critical roles across residential, commercial, and industrial sectors. While water sensors focus on detecting the presence of liquid water or moisture to alert against leaks and dampness, water level sensors specialize in measuring liquid height for precise control and monitoring. Both devices operate by converting physical changes into electrical signals, forming the backbone of smart water management and risk prevention solutions.

1. Core Definitions: Water Sensor vs. Water Level Sensor

• Water Sensor: A versatile device designed to detect the presence of liquid water or airborne moisture. It leverages principles like electrical conductivity, capacitance, or optical reflection to identify water contact or dampness, triggering timely alerts for leak prevention.

• Water Level Sensor: A specialized subset of water sensors focused on quantifying the height of liquids (primarily water) in tanks, reservoirs, rivers, or industrial containers. Classified into contact and non-contact types, it converts liquid level data into standardized electrical signals (e.g., 4-20mA/1-5VDC) for real-time monitoring and automated control. The input-type water level transmitter, a common contact-type variant, is widely used for its reliability in liquid level-to-electrical signal conversion.

2. Working Principles: From Sensing to Signal Output

2.1 General Working Process of All Water Sensors

Regardless of type, water sensors and water level sensors follow a four-stage operational cycle to ensure accurate detection and response:

1. Sensing: Water or moisture interacts with the sensor’s core element (e.g., metal probes, infrared LEDs, pressure diaphragms, or ultrasonic transducers).

2. Physical Change: This interaction alters a key physical property of the sensor system, such as electrical resistance, capacitance, light reflection, or hydrostatic pressure.

3. Signal Conversion: The sensor translates the physical change into a measurable electrical signal, which is processed and standardized for compatibility with monitoring or control systems.

4. Alert/Control Execution: The processed signal is transmitted to a smart hub, digital display meter, or automation controller, triggering actions like audible alarms, pump activation/deactivation, or real-time data recording.

2.2 Key Working Principle of Water Level Sensors: Hydrostatic Pressure

Most water level sensors operate based on the fundamental principle that hydrostatic pressure is directly proportional to the height of the liquid column. The liquid level is calculated using the formula:

Plain Text P = ρ × g × H + Po

Where:

• P = Pressure exerted on the sensor’s surface

• ρ = Density of the measured liquid

• g = Local gravitational acceleration

• H = Depth of the sensor below the liquid surface (i.e., the liquid level height to be measured)

• Po = Atmospheric pressure above the liquid surface

By converting this pressure into an electrical signal, the sensor accurately infers the liquid level, enabling reliable monitoring of static or flowing liquids.

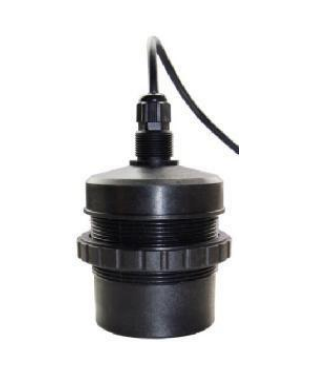

Water Level Sensors

3. Common Types of Water Sensors & Water Level Sensors

Water sensors and water level sensors come in diverse types, each tailored to specific application scenarios, measurement methods, and environmental conditions. Below are the most widely used variants, along with their working mechanisms, advantages, and limitations:

3.1 Conductivity Sensors

• Working Principle: Equipped with two or more metal probes. When water bridges the gap between the probes, it completes an electrical circuit, reducing electrical resistance and triggering a detection signal.

• Typical Applications: Simple leak detection on floors, basement drain monitoring, and basic water presence checks in residential or light commercial settings.

• Advantages: Low cost, simple structure, easy to use; Disadvantages: Limited to conductive liquids, prone to probe corrosion in harsh environments.

3.2 Capacitive Sensors

• Working Principle: Utilizes two conductive metal electrodes (a sensing electrode and a reference electrode) to form a measurement zone. When the sensor probe is immersed in liquid, the liquid’s dielectric properties alter the capacitance between the electrodes, with capacitance increasing as the submerged area of the probe expands.

• Typical Applications: Non-invasive level detection in pipes, sealed containers, and tanks holding corrosive liquids (thanks to non-contact operation).

• Advantages: High measurement precision, no wear and tear from liquid contact, suitable for non-conductive liquids; Disadvantages: Electrode corrosion can distort capacitance values, requiring periodic cleaning or recalibration.

3.3 Optical Sensors

• Working Principle: Features solid-state components (infrared LEDs and phototransistors). In air, infrared light is optically coupled between the LED and phototransistor; when the sensor head is immersed in liquid, the light escapes into the liquid, disrupting the optical path and changing the sensor’s output signal.

• Typical Applications: Leak detection, small container level sensing, and water level control in household appliances (e.g., washing machines, dishwashers).

• Advantages: Fast response time, unaffected by small bubbles in liquids, low maintenance; Disadvantages: Direct sunlight and water vapor can degrade measurement accuracy, not suitable for outdoor open-air applications without protection.

3.4 Hydrostatic Pressure Sensors

• Working Principle: Employs high-performance isolated diffused silicon sensitive elements or pressure sensors to convert hydrostatic pressure into electrical signals. After temperature compensation and linear correction, the signal is converted into a standard output (4-20mA/1-5VDC) for level calculation.

• Typical Applications: Water level measurement in tanks and reservoirs, river depth monitoring, and industrial liquid level control.

• Advantages: High measurement accuracy, simple structure, easy installation and operation; Disadvantages: Performance is affected by changes in liquid temperature and density, not ideal for viscous or highly corrosive liquids without protective modifications.

3.5 Diaphragm Liquid Level Sensors

• Working Principle: Relies on air pressure to actuate a diaphragm, which engages with a microswitch inside the device. As liquid level rises, the internal pressure in the detection tube increases, activating the microswitch; as level drops, pressure decreases, and the switch resets.

• Typical Applications: Level control in tanks holding various liquid types, especially in scenarios where electrical power inside the tank is prohibited.

• Advantages: No power required inside the tank, compatible with multiple liquid types, no direct liquid contact with the switch; Disadvantages: Mechanical components require periodic maintenance due to wear over time.

3.6 Float Water Level Sensors

• Working Principle: A hollow float connected to an arm rises and falls with the liquid level, pushing the arm up or down. The arm is linked to a magnetic or mechanical switch (for on/off control) or a level gauge (for continuous level indication).

• Typical Applications: Basement sump pump control, toilet water level regulation, fuel level measurement in vehicles, and economical water level monitoring in small tanks.

• Advantages: Low cost, compatible with almost all liquid types, can be designed for passive operation (no power required); Disadvantages: Larger size than other sensor types, mechanical wear requires frequent inspection and maintenance.

3.7 Ultrasonic Liquid Level Sensors

• Working Principle: Controlled by a microprocessor, the sensor (transducer) emits high-frequency ultrasonic pulses. The pulses reflect off the liquid surface and are received by the same transducer, which converts the acoustic signal into an electrical signal via a piezoelectric crystal. The liquid level is calculated using the time difference between pulse transmission and reception, based on the formula: S = C×T/2 (S = distance to the liquid surface; C = speed of sound; T = pulse travel time).

• Typical Applications: Level measurement of various liquids and solid materials in large tanks, open reservoirs, and industrial sites.

• Advantages: Non-contact measurement, wide compatibility with measured media, no wear; Disadvantages: Measurement accuracy is significantly affected by ambient temperature and dust.

3.8 Radar Liquid Level Sensors

• Working Principle: A non-contact device based on electromagnetic wave reflection. It emits high-frequency electromagnetic waves toward the liquid surface, receives the echo signal, and calculates the liquid level height using time difference or frequency difference. Its core microwave signal propagation technology enables adaptation to harsh conditions such as high temperature, high pressure, corrosion, and steam.

• Typical Applications: Petrochemical, energy storage and transportation, food, and pharmaceutical industries, where precise level measurement under complex conditions is required.

• Advantages: Wide application range, unaffected by temperature, dust, or steam; Disadvantages: Prone to interference echoes (e.g., from tank internal structures), which can reduce measurement accuracy.

3.9 Humidity & Flow Sensors (Specialized Water Sensors)

• Humidity Sensors: Detect moisture in the air (not just liquid water) by sensing changes in relative humidity, suitable for detecting dampness in walls, ceilings, or enclosed spaces.

• Flow Sensors: Use turbines or ultrasonic waves to monitor water flow in pipes, detecting abnormal flow patterns that may indicate burst pipes or leaks. Ideal for whole-home leak protection and main line monitoring.

4. Core Advantages of Water Level Sensors

Water level sensors offer a range of benefits that make them indispensable for modern liquid management, combining reliability, versatility, and cost-effectiveness:

• Simple Structure & High Reliability: No movable or elastic elements, minimizing mechanical failure risks and eliminating the need for regular maintenance during operation.

• Convenient Installation: Simple wiring—just connect one end of the wire correctly and submerge the probe into the measured liquid.

• Flexible Measurement Ranges: Standard ranges cover 1-200 meters, with custom ranges available to meet specific application needs.

• Wide Application Scope: Suitable for liquid level measurement of high-temperature, high-pressure, highly corrosive, and highly polluted media. For example, installing an electronic water level gauge on riverbanks enables tide monitoring.

• Versatile Medium Compatibility: Enables high-precision measurement of water, oil, and high-viscosity pastes. Wide-range temperature compensation ensures performance is not affected by foaming, deposition, or electrical properties of the measured medium.

• Long Service Life: Typically 4-5 years in normal environments and 2-3 years in harsh conditions, reducing replacement costs.

• Powerful Functions: Can be directly connected to digital display meters for real-time value visualization, or integrated with various controllers to set upper and lower level limits for automated container water volume control.

• High Measurement Accuracy: Built-in high-quality sensors with high sensitivity and fast response, accurately reflecting subtle changes in flowing or static liquid levels.

• Diverse Structural Designs: Available in input-type, straight rod-type, flange-type, thread-type, inductive-type, screw-in-type, and float-type designs, meeting measurement needs in all types of locations.

• Cost-Effective Operation: Automatic control prevents tank overflows and dry pump operation, reducing water and electricity waste. By avoiding overflow-induced wall/roof seepage, it also eliminates costly repair expenses.

• Low Power Consumption: Ideal for 24/7 continuous operation, suitable for remote monitoring scenarios powered by batteries or solar energy.

5. Wide-Ranging Applications of Water Level Sensors

Water level sensors play a critical role in numerous sectors, from residential households to heavy industry, and environmental monitoring:

5.1 Residential Applications

• Water level monitoring and control in home water tanks

• Appliance water level control (washing machines, dishwashers, refrigerators with ice makers/water dispensers, hot-water heaters)

• Toilet, sink, and fish tank level regulation

• Basement sump pump control to prevent flooding

• Wall and ceiling dampness detection (via humidity sensors)

5.2 Commercial Applications

• Water level management in hotels, commercial complexes, and shopping malls

• Swimming pool water level control (residential and commercial)

• Cooling tower water level regulation in office buildings and hotels

5.3 Industrial Applications

• Factory boiler and furnace water level control

• Sewage pump level control and wastewater treatment monitoring

• Level measurement of acid-base liquids and chemical tanks

• Oil level measurement in oil trucks and fuel tanks

• Pump start/stop control (single-phase motors, three-phase motors, single-phase submersibles, bore well pumps)

5.4 Environmental & Special Applications

• Water level measurement in rivers, lakes, and reservoirs

• Marine level measurement and tsunami warning systems

• Tide monitoring via riverbank-installed water level gauges

• Remote liquid level monitoring in open wells and remote industrial sites

• Vehicle fuel level indication

6. Key Considerations for Selecting Water Level Sensors

In liquid level measurement, accuracy and reliability are paramount, especially in industries requiring real-time monitoring under complex conditions. With advancing sensing technology, modern water level sensors offer enhanced stability and precision. When selecting a sensor, key factors to consider include:

• Characteristics of the measured medium (e.g., corrosiveness, viscosity, temperature, density)

• Installation conditions (e.g., indoor/outdoor, tank type, space constraints)

• Measurement requirements (e.g., accuracy, range, contact/non-contact operation)

• Environmental conditions (e.g., temperature, humidity, dust, steam)

Among the widely used technologies, radar, ultrasonic, and hydrostatic pressure sensors stand out for their adaptability to diverse environments. Manufacturers like Renke, a professional environmental monitoring equipment provider, offer a comprehensive range of water level sensors tailored to industrial and environmental monitoring needs. Choosing the right sensor based on the above factors ensures efficient and long-term stable liquid level monitoring.
