Integrating and analyzing data from a photovoltaic power plant's dust monitoring system with power generation efficiency models is a key process for improving plant operations and maintenance, as well as generating efficiency. Let me explain how these two elements come together.
How Dust Affects Power Generation Efficiency
To understand how data is integrated, we first need to understand the specific ways dust disrupts photovoltaic cells:
Obsorptive Effect (Main Factor): Dust particles block, absorb, and reflect sunlight, directly reducing the amount of light energy received by photovoltaic cells and lowering their output power. Studies have shown that the output power difference between clean and dusty modules can be at least 5%, and the more severe the dust accumulation, the more pronounced the output drop.
Hot Spot Effect (Potential Harm): Solar cells heavily covered with dust will heat up, forming "hot spots." This not only reduces the output power of that portion of the cell, but long-term damage can permanently damage the module and even pose a fire hazard.
Corrosion Effect (Long-Term Damage): Moist acidic or alkaline dust can corrode the glass cover, roughening its surface and causing diffuse reflections, further reducing light transmittance. Furthermore, the rough surface makes dust more susceptible to accumulation, creating a vicious cycle.
| Data Category | Specific Parameters | Collection Method | Why It Matters |
|---|---|---|---|
| Dust Data | Pollution Ratio (SR), Cleanliness Ratio, Dust Thickness | Dust monitoring sensors (e.g., adopting OMBP technology) | Directly quantifies the degree of dust obstruction |
| Meteorological & Environmental Data | Solar Irradiance (W/m²), Ambient Temperature, Humidity, Wind Speed | Weather stations, irradiometers, temperature and humidity sensors | Provides baseline conditions for calculating power generation efficiency |
| System Operation Data | Module Backsheet Temperature, Actual Power Generation (AC/DC), Module Current/Voltage | Inverters, data loggers, temperature sensors | Reflects the actual operating status of the system |
In addition to traditional fixed sensors, unmanned aerial vehicles (UAVs) have also become a powerful data collection tool. Equipped with visible light and infrared thermal imaging cameras, UAVs enable large-scale inspections. Through image analysis, they can identify contaminated areas and their severity, and even detect hot spots.
Is your solar asset performing at its peak? While you meticulously track weather and inverter data, a silent threat might be lurking on the surface of your PV modules: dust. This seemingly minor issue can silently erode your energy yield and profitability.
Are you experiencing:
Unexplained dips in energy output?
The high cost of scheduled cleaning, whether it's needed or not?
The logistical nightmare of manually inspecting vast, remote sites?
The root cause is a lack of real-time, actionable data. At BGT Hydromet, we believe in moving from guesswork to precision. This article explores how our PV soiling monitoring device is the key to unlocking superior performance and optimized operational expenditures.

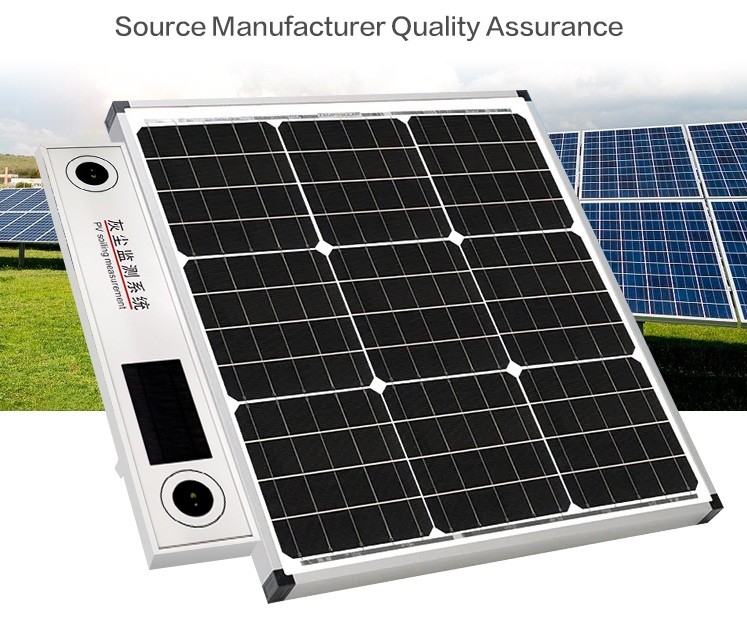

Traditional methods are blind to gradual power loss from soiling. Our solution brings clarity. The BGT Hydromet dust sensor for solar energy employs advanced optical measurement techniques, such as Closed-Loop Optical Measurement, to provide continuous, all-weather assessment of panel cleanliness.
It acts as your site's "smart vision," delivering precise, real-time data on key parameters like Soiling Ratio (SR) and Transmission Loss with industry-leading accuracy. This reliable data forms the foundational layer of intelligent decision-making.
You can't manage what you can't measure. Our PV soiling monitoring system quantifies the invisible. It precisely calculates the exact percentage and kilowatt-hours of energy lost due to dust accumulation, making the financial impact crystal clear.
Beyond mere output loss, unchecked soiling can lead to hotspots. These localized overheating events permanently damage expensive solar cells, leading to accelerated degradation and potential safety risks. Our device provides early warnings, allowing you to intervene before minor soiling becomes a major capital expense, thereby protecting your asset's long-term value and ROI.

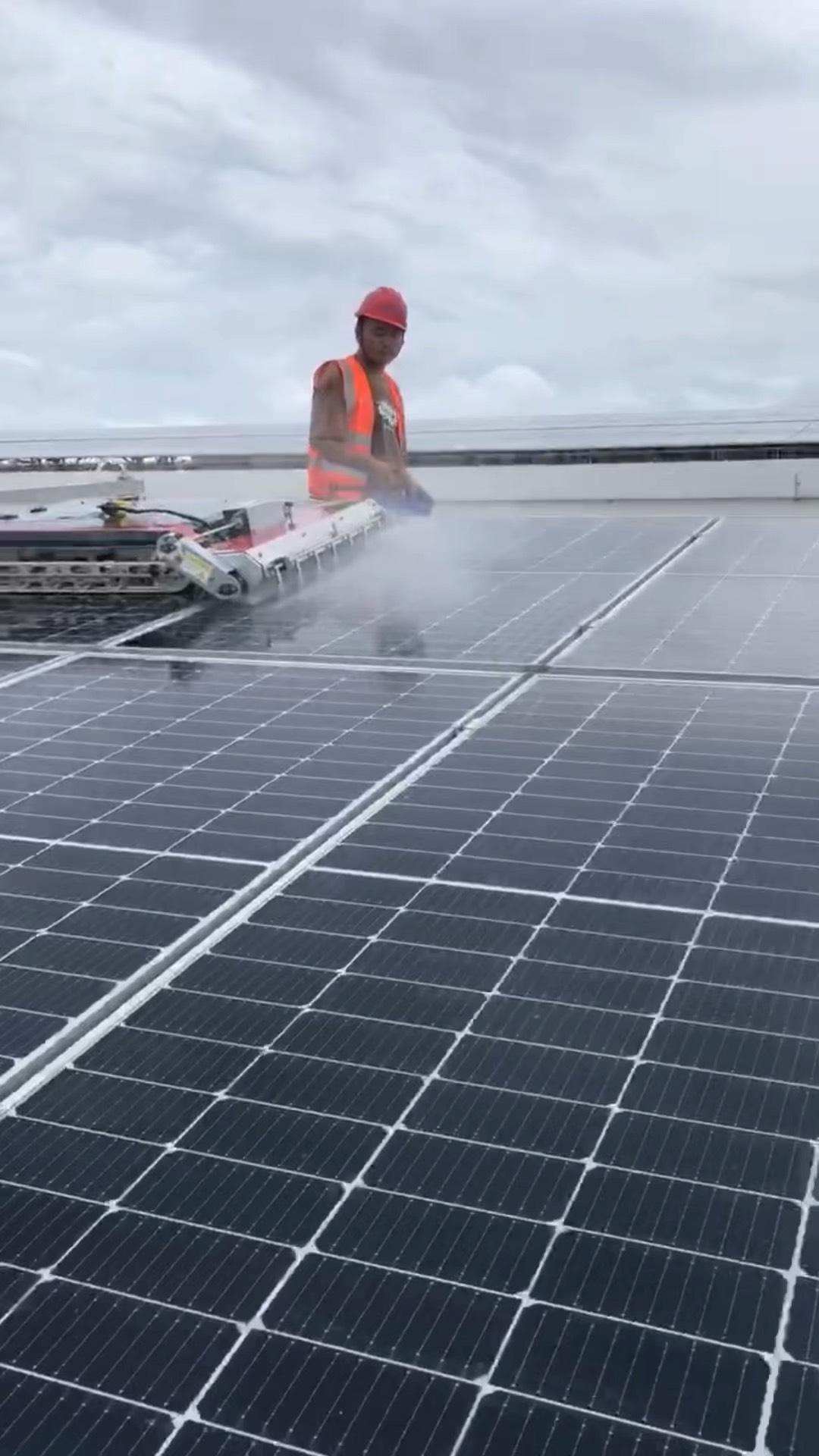

This is where the ROI becomes undeniable. The biggest saving comes from shifting from inefficient calendar-based cleaning to efficient on-demand cleaning.
The Old Way: Clean every X weeks, regardless of actual soiling levels. You waste water, labor, and equipment life on unnecessary cleaning or lose money by not cleaning soon enough.
The Smart Way: The BGT Hydromet monitor triggers cleaning only when a predefined soiling threshold (e.g., SR < 85%) is crossed. This eliminates wasteful cleaning cycles, dramatically reducing water, energy, and labor costs.
For large-scale plants, our system can generate soiling heatmaps, guiding cleaning crews or robots to the most affected areas first, maximizing the efficiency of every cleaning operation.
A monitor is only as good as its reliability. BGT Hydromet engineers its dust sensor for solar energy to thrive in the harshest conditions, a must for utility-scale solar farms.
Arid & Desert Environments: Our devices are built to withstand extreme temperatures, UV radiation, and are equipped with features to resist abrasion from sand and maintain performance during intense dust storms.
Coastal Sites: We use specially selected materials and coatings to provide superior resistance to salt mist corrosion and high humidity, ensuring long-term durability.
This ruggedness ensures that the data you rely on is consistent and accurate, year after year.
Data alone isn't enough; action is. The true power of the BGT Hydromet monitoring system is its ability to integrate seamlessly into your existing SCADA or Asset Management platform.
It forms the intelligent core of an automated O&M strategy, capable of:
Sending automatic alerts to your maintenance teams.
Integrating with cleaning robots and drone inspection systems to initiate a clean-by-wire process.
Providing predictive insights by combining soiling data with weather forecasts to recommend the most economically optimal time to clean.
This creates a closed-loop, smart maintenance ecosystem that drives down labor costs and boosts operational efficiency.

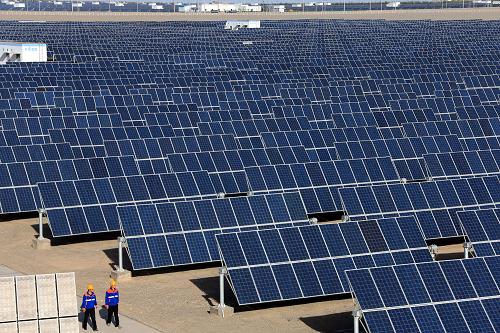

Client: A 100 MW PV Plant in a semi-arid region.
Challenge: Significant and unpredictable soiling losses, high and inefficient water-based cleaning costs.
BGT Hydromet Solution: Deployment of a network of our advanced PV soiling monitoring devices.
Result: Transitioned to data-driven cleaning schedules, resulting in a 7% increase in annual energy yield and a 40% reduction in cleaning-related O&M costs. The investment paid for itself in under 8 months.
Soiling isn't just a nuisance; it's a direct threat to your project's financial viability. BGT Hydromet provides the mission-critical data you need to fight back effectively.
Our dust sensor for solar energy is more than a product—it's a comprehensive solution for enhancing energy production, slashing operational costs, and safeguarding your valuable asset.
Ready to unlock the full potential of your solar farm?
