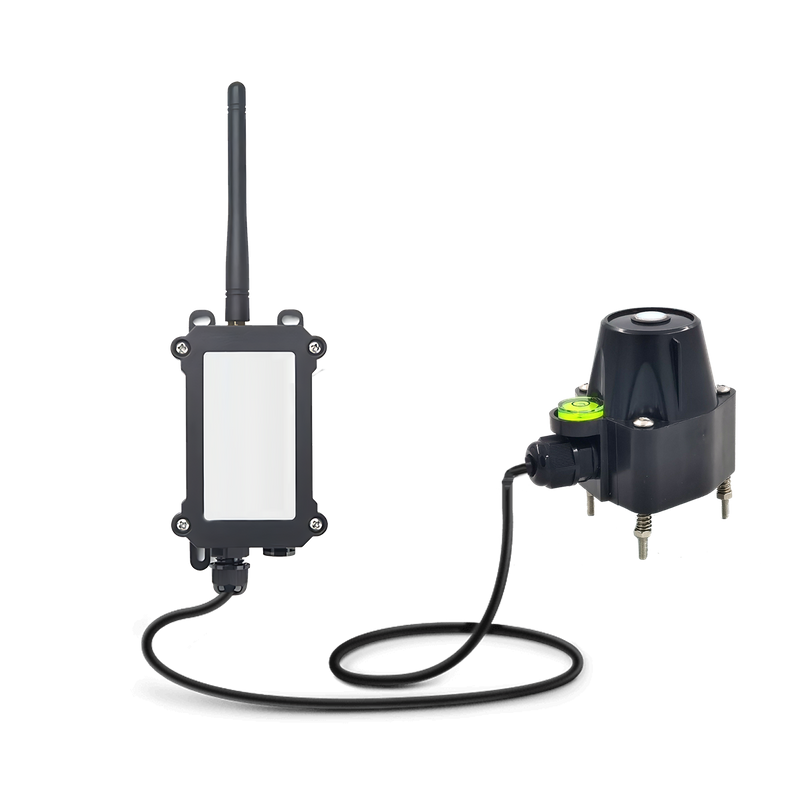

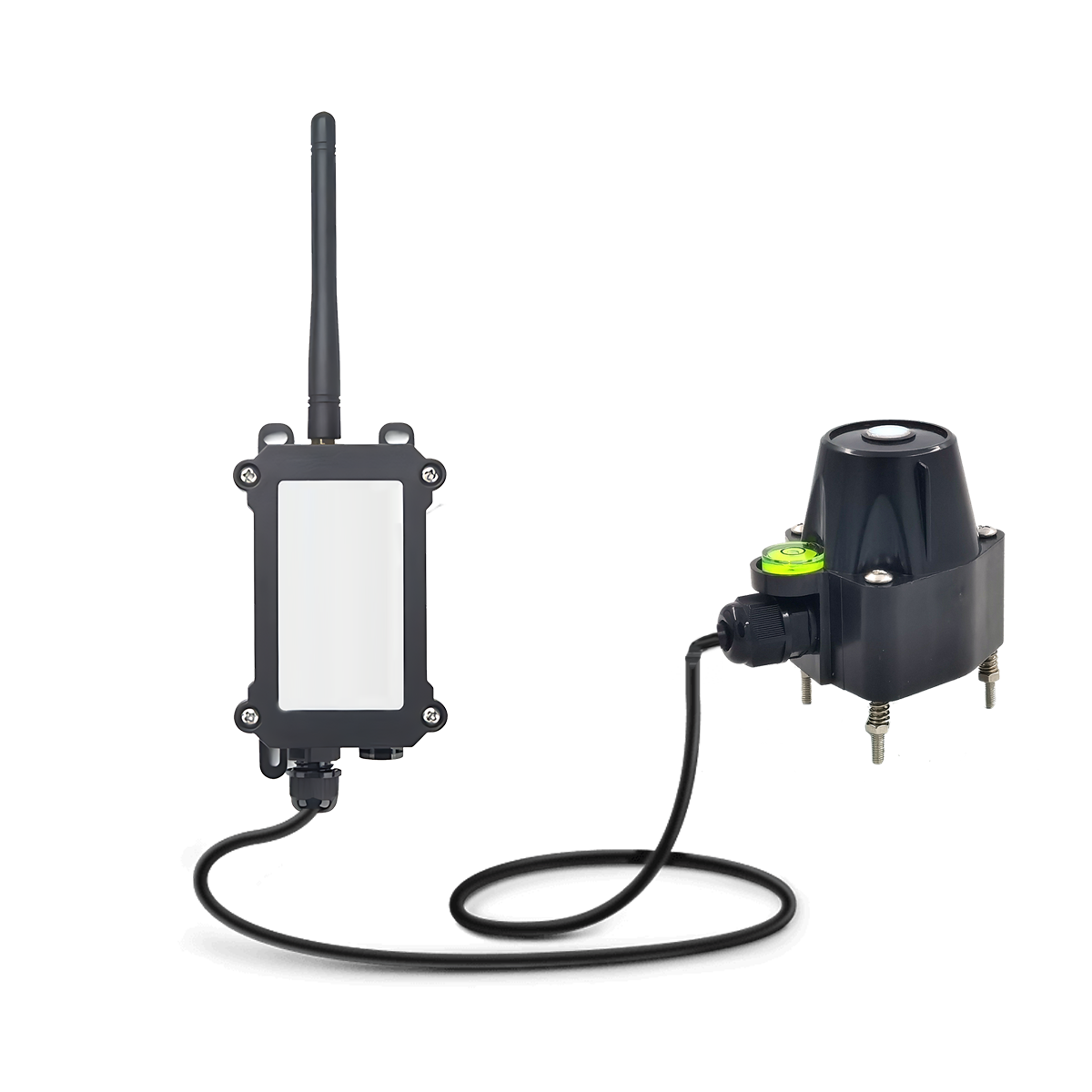

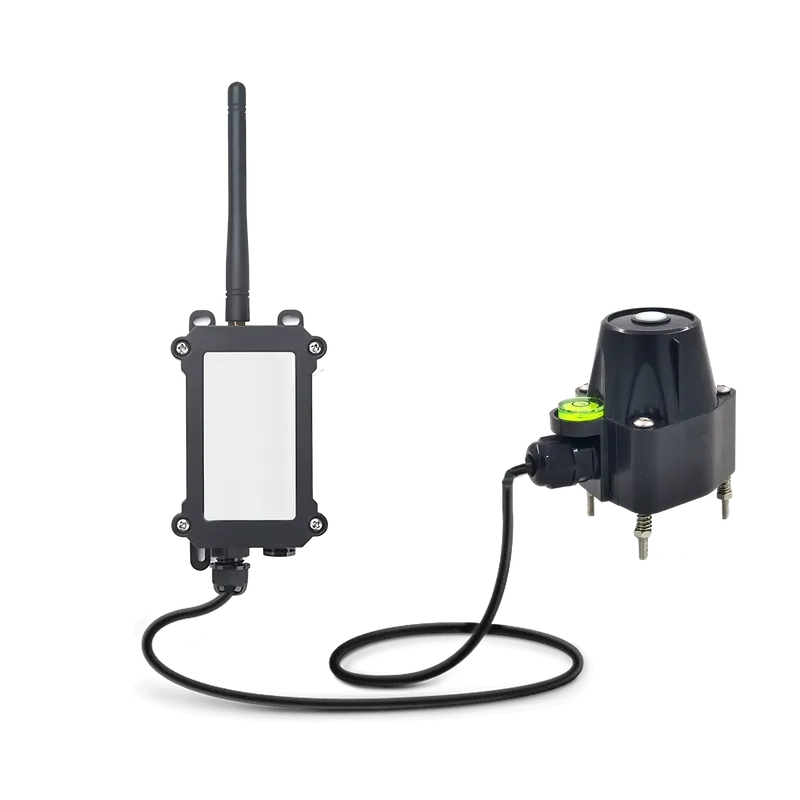

IoT Industrial Automation Solar Radiation Sensor

BGT-TBQ pyrgeometer sensor is based on optical filter and precise detection circuit, which can continuously measure solar radiation. It is widely used in agriculture, flower gardening, grassland and pasture, plant culture, scientific experiment and other fields, such as solar energy resource assessment, photovoltaic power generation, solar energy system monitoring, solar energy balance research, heat exchange research, climate change research, etc.

Availability:
Quantity:
Description:

Wireless Solar radiation sensor is based on optical filter and precise detection circuit, which can continuously measure solar radiation. It is widely used in agriculture, flower gardening, grassland and pasture, plant culture, scientific experiment and other fields, such as solar energy resource assessment, photovoltaic power generation, solar energy system monitoring, solar energy balance research, heat exchange research, climate change research, etc.

Key Features

■ Supports LoRaWAN® Class A protocol

■ High reliability and long-term stability

■ Ultra-long-distance transmission

■ Battery life ≥ 3 years

■ Quick installation and deployment

■IP66 protection level, supports outdoor


Solar Radiation Sensor

Measuring range

0~2000W/m²

Spectral range

400~1100nm

Resolution

1W/m²

Accuracy

±5%



General Parameter

Supply voltage

Built-in Battery, 2.5V~3.6V

Battery capacity

8500mAh

Working temp.

-40~85℃

Working humidity

0 ~100 %RH (non-condensing)


Communication

LoRaWAN 1.0.3 Class A

LoRa frequency band

CN470/EU433/KR920/US915/

EU868/AS923/AU915/IN865

Frequency range

Band 1 (HF): 862~1020 Mhz

Lora transmission frequency

Max +22 dBm

LoRa Receiver Sensitivity

down to -139 dBm

Sleep mode

5uA @ 3.3v

LoRa transmit mode

125mA @ 20dBm, 82mA @ 14dBm



■Smart agriculture and meteorology

■Smart buildings and industrial control

■Environmental monitoring

Further details , please contact us !
