Economical Weather Station Irrigation RS485 Output Optical Rain Gauge Sensor

Optical Rain Gauge Sensor

Optical rain sensors use infrared rays to sense the impact of water on their outer surfaces. It uses the same sensing principle as millions of car rain-sensing windshield wiper controls.
The sensor is optical - not mechanical, chemical or conductive. Therefore, it is more robust, sensitive and reliable than any other technology. The sensor is very sensitive and is almost not affected by incorrect tripping. Furthermore, it is completely unaffected by pushing and moving. There is no exposed conductor corrosion and no opening for insects to crawl in. Moreover, there is no place to collect leaves or other sundries.

Availability:



Inquire

Optical Rain Gauge rain gauges best rain gauge glass rain gauge most accurate rain gauge

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

The Optical Rain Sensor is far more rugged, sensitive and reliable than any other rain gauges. It is completely unaffected by jostling and motion. There are no exposed conductors to corrode, and no openings for bugs to crawl into. And there is no place for leaves or other debris to collect.

0.1mm resolution
High precision and stability
Maintenance-free
Long service life

◀◀ Product Parameters ▶▶

Parameter	Specification
Product Name	Optical Rainfall Sensor
Input Voltage	12V/24VDC
Operating Current	14mA @ 12VDC
Sleep Current	3mA @ 12VDC
Output	RS485 Modbus
Operating Temperature	-40℃ ~ 60℃
Accuracy	±15%
Resolution	0.1mm
Max Instantaneous Rainfall	0.4mm/s
UART Parameters	115200 8N1

◀◀ Application Scenarios ▶▶

1. Weather Stations:

Ideal for meteorological monitoring, providing accurate and real-time rainfall data for weather forecasting and climate research.

2. Smart City Systems:

Integrate into smart city infrastructure to monitor urban rainfall conditions, enabling better decision-making for traffic management, public safety, and emergency response.

3. River Flood Control and Monitoring:

Essential for flood control systems, providing real-time rainfall data to predict and manage flood risks.

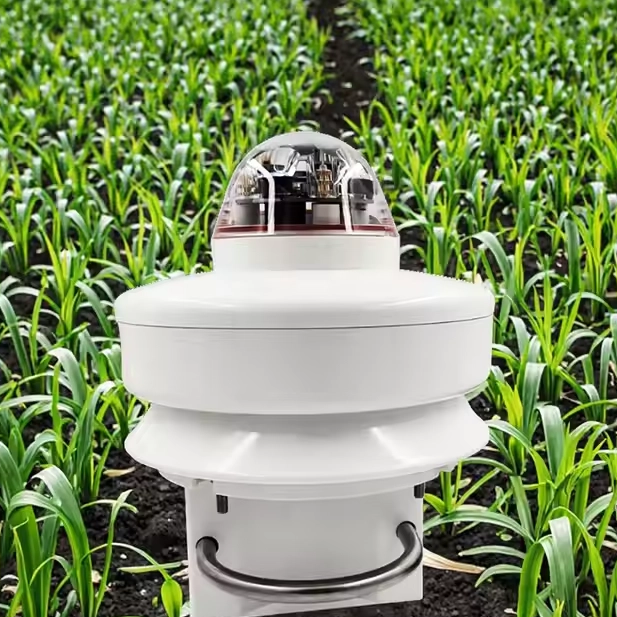

4. Agricultural Monitoring:

Used in precision agriculture to monitor rainfall levels, helping farmers optimize irrigation and crop management.

5. Construction and Infrastructure:

Monitor rainfall at construction sites to ensure safety and manage water drainage effectively.

6. Environmental Monitoring:

Suitable for environmental studies, providing accurate rainfall data for water resource management and ecosystem monitoring.
