◀◀ Key Selling Points ▶▶

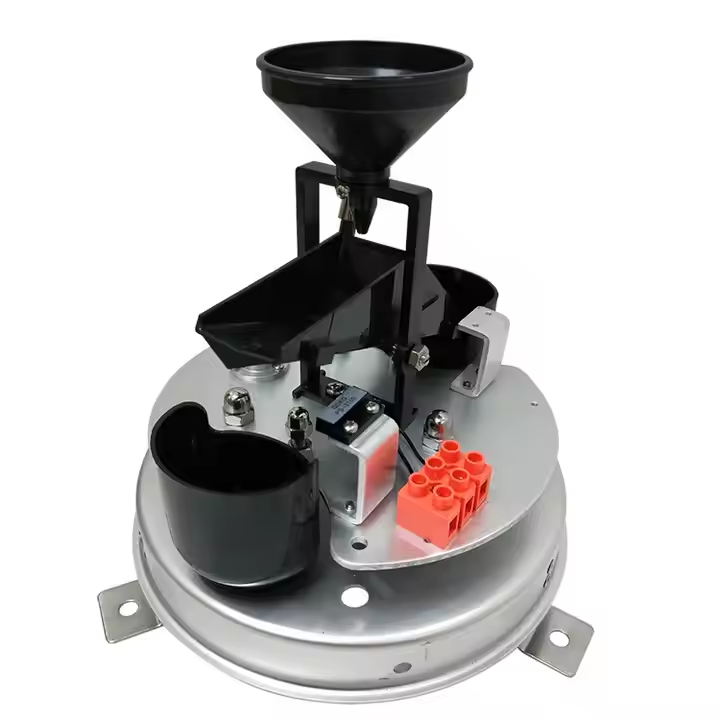

1. High Accuracy and Reliability: Offers a resolution of 0.2mm with an accuracy of ±2% (for rainfall rates ≤1mm/min) and ±4% (for rates ≤4mm/min), ensuring precise rainfall measurements.

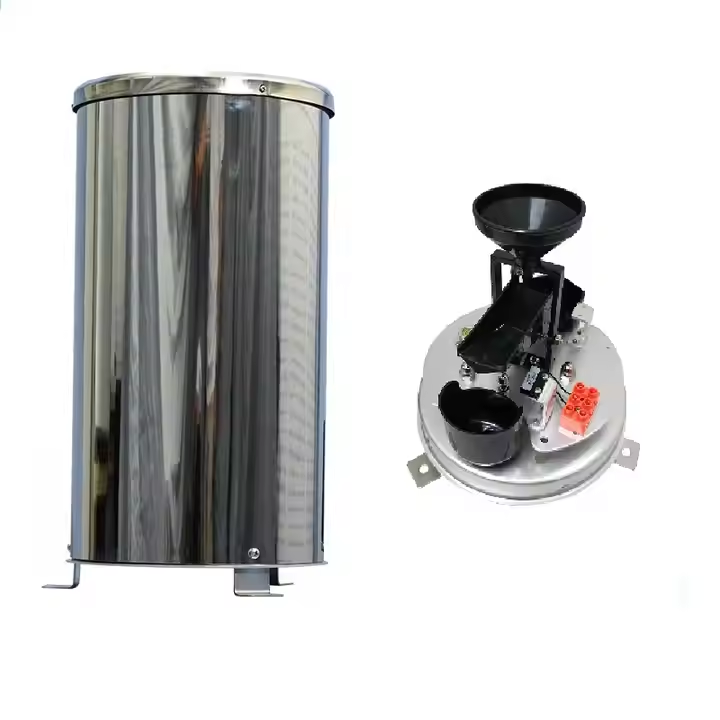

2. Durable Construction: Made with stainless steel and UV-stabilized ABS plastic, the rain gauge is resistant to corrosion and UV degradation, making it suitable for long-term outdoor use.
3. WMO Standard Design: Complies with World Meteorological Organization (WMO) standards, ensuring compatibility and reliability for meteorological applications.

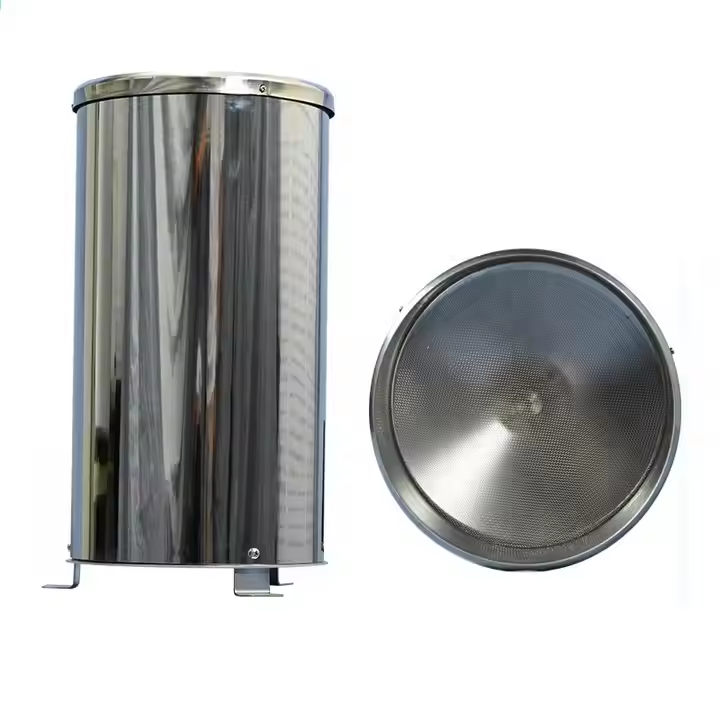

4. Low Maintenance: Features a stainless steel mesh filter to prevent debris from entering the gauge, reducing the need for frequent cleaning and maintenance.

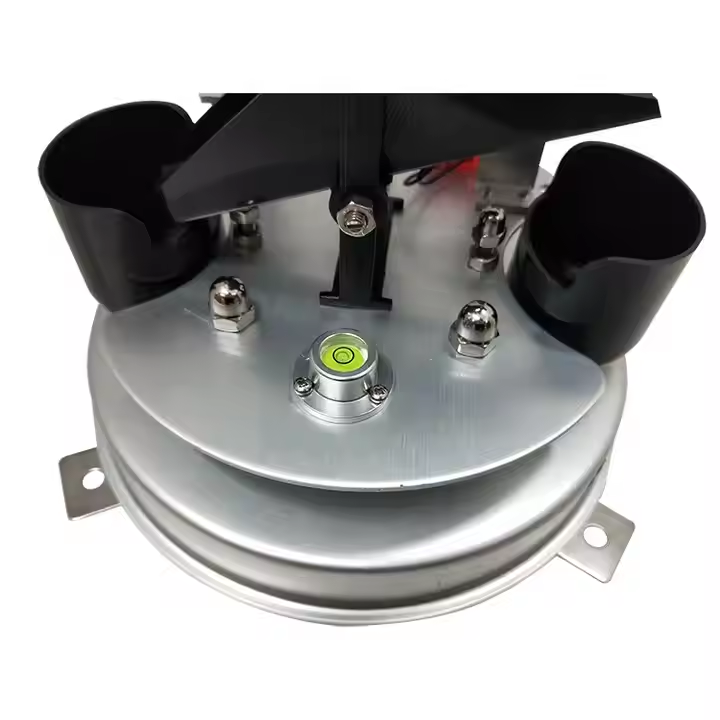

5. Easy Installation and Leveling: Equipped with a bull-eye level and leveling screws, ensuring accurate installation and consistent measurements.
6. Versatile Output Options: Supports both pulse output (reed switch) and RS485 communication, allowing integration with various data logging and monitoring systems.
7. Wide Operating Range: Operates in temperatures from -20℃ to 80℃ and humidity levels from 0% to 95% RH, making it suitable for diverse climatic conditions.
8. Debris Protection: Includes a stainless steel mesh filter to prevent leaves and other debris from affecting measurement accuracy.
9. Compact and Lightweight Design: Easy to transport and install, with a height of 402.2mm and a collector diameter of 200mm.
◀◀ Product Parameters ▶▶
Item | WS-601SS2 |
Material | Stainless Steel ( Body, Base) |
Tips | ABS UV Stabilished plastic bucket |
Rainfall capacity | ≤ 4mm/min |
Accuracy | ±≤ 2%(≤1mm/min); ±≤ 4% (≤ 4mm/min); |
Resolution | 0.2mm |
Collector diameter | 200mm ±0.3% |
Collector area | 314cm² |
Height | 402.2mm |
Acute angle of cutting edge | 40~45° |
Output | Standard Pulse(Reed switch, 5 pulse/mm); RS485 optional |
Power supply | Pulse: MaxDC24V,100mA; RS485: DC5V or DC 7~24V |
Switch | Rugged Magnetic Proximity |
Leveling | Bulls eye level adhered, leveling screw adjust |
Debris protection filter | Steel stainless Mesh is provided inside the collector |
Mounting holes | Three mountings |
Discharge control | Straight through flow mechanism |
Working temperature | -20~80℃ |
Working humidity | 0%~95%RH |
◀◀ Application Scenarios ▶▶

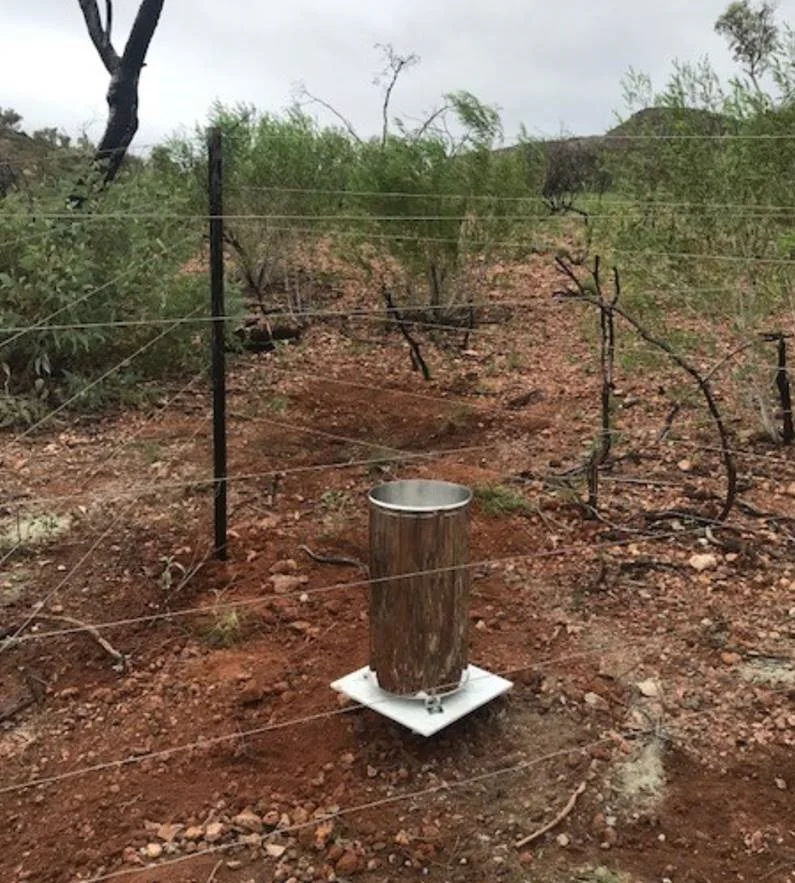

1. Environmental Monitoring: Used in ecological and environmental studies to monitor rainfall and its impact on ecosystems.
2. Water Supply Systems: Helps manage water resources by providing accurate rainfall data for reservoirs and water distribution systems.

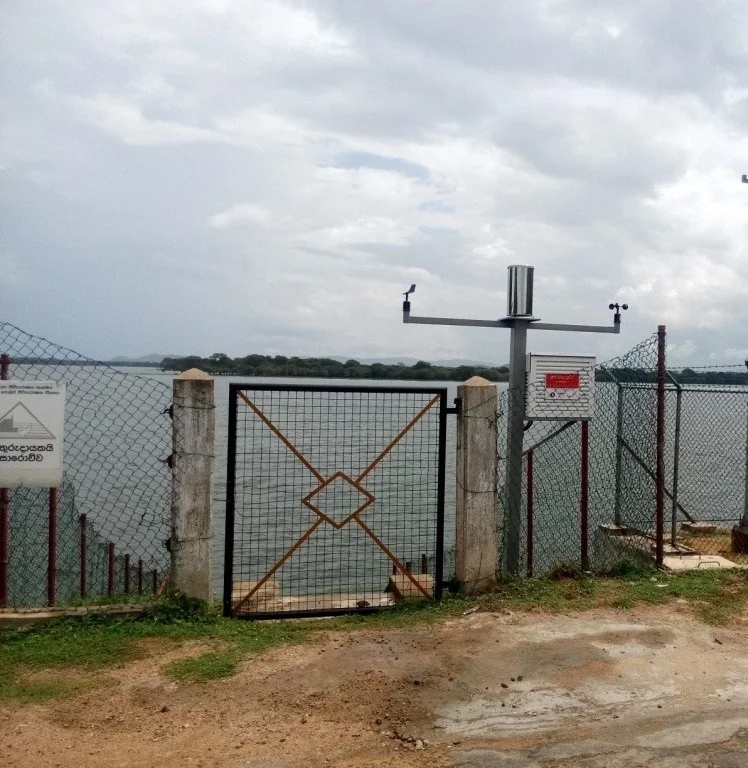

3. Hydrological Monitoring: Essential for flood forecasting and water resource management in river basins and watersheds.
4. Natural Disaster Monitoring: Provides critical data for early warning systems in flood-prone areas.
5. Climate Research: Used in meteorological research to study precipitation patterns and climate change.

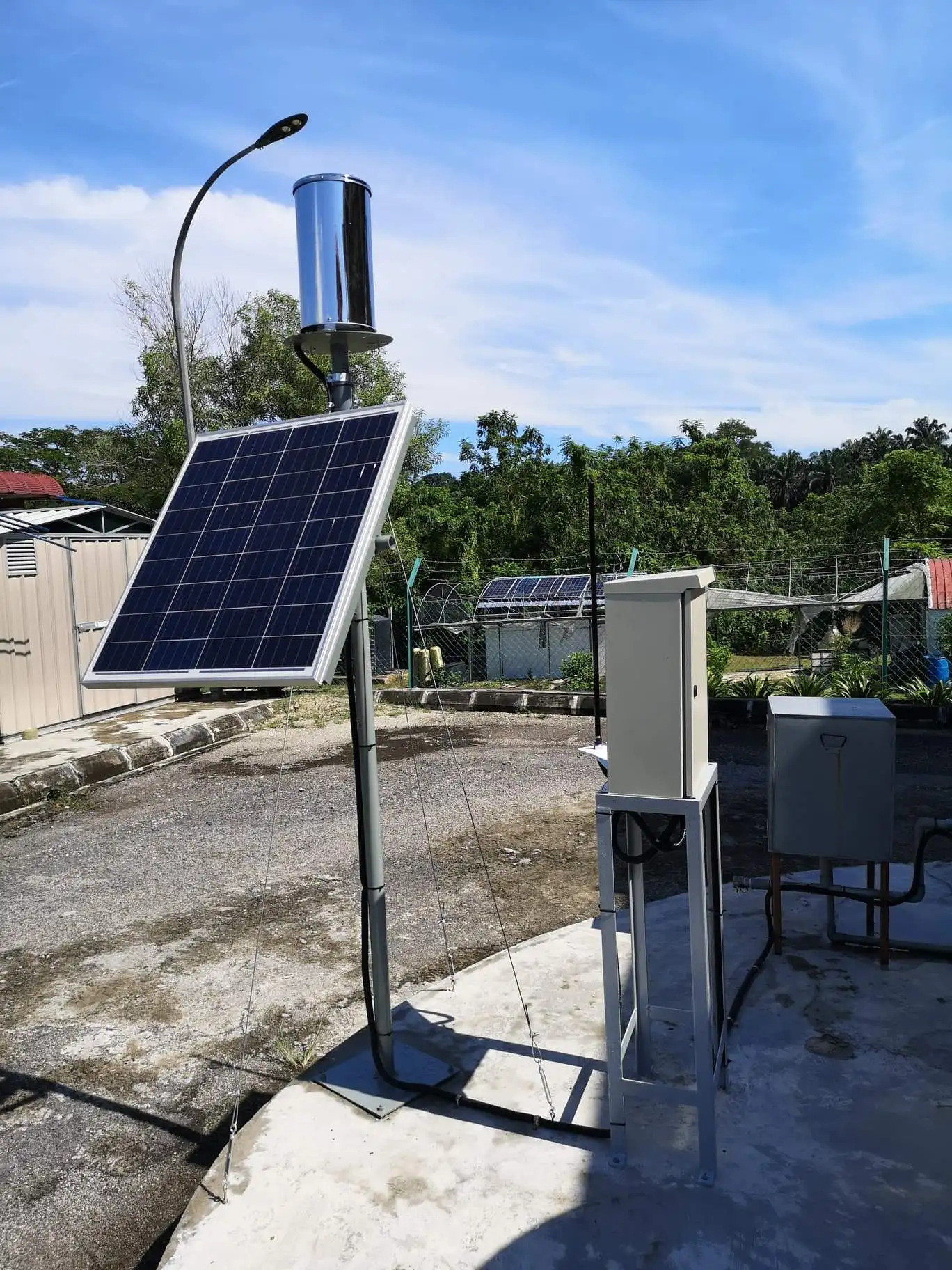

6. Weather Monitoring Stations: Ideal for meteorological stations requiring reliable and accurate rainfall data.
7. Smart Agriculture: Helps farmers monitor rainfall for irrigation planning and crop management.
