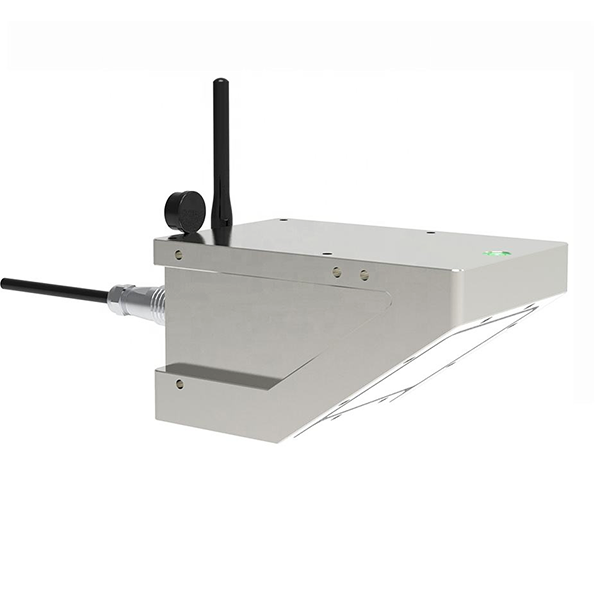

Radar Flow Meter Water level water velocity and flow 3 in 1 meter

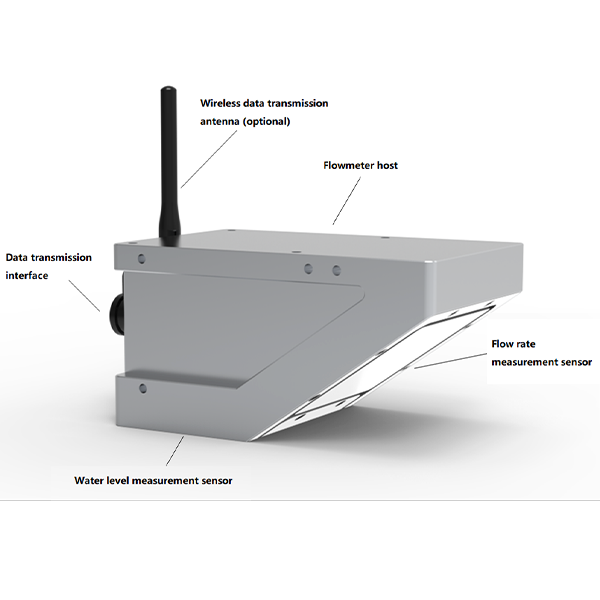

BGT-RD103 radar flowmeter is a non-contact integrated flow monitoring equipment which can realize non-contact real-time measurement of water level, velocity and flow in rivers, open channels, reservoirs, sewage pipe network, flood prevention and early warning, etc. According to the built-in
software algorithm, calculate and output the instantaneous cross-section flow and cumulative flow, output the flow rate and water level, easily connect with the database platform, and view the measurement information on the cloud platform. BGT-RD103 radar flowmeter has the characteristics of low power consumption, small size, high reliability, simple operation and convenient maintenance; the measurement process is not affected by environmental factors such as temperature, air pressure, sediment, dust, river pollutants, floating objects on the water surface and air.

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

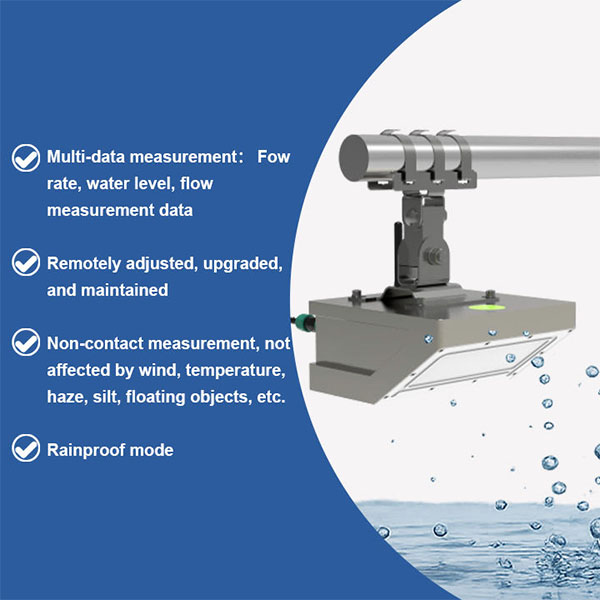

Rainproof mode

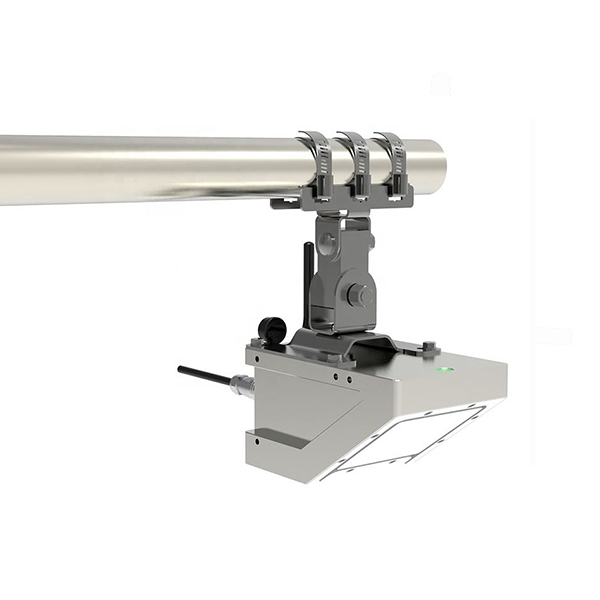

Installation Instructions

◀◀ Product Parameters ▶▶

Category	Specification
Measurement Principle	Planar Microstrip Array Antenna (CW + FMCW)
Operating Mode	Automatic, Telemetry
Applicable Environment	24 hours operation, Rainy conditions
Operating Temperature	-30°C ~ 80°C
Operating Voltage	7~30VDC
Working Current	≤28mA (12VDC input, working mode); <1mA (standby mode)
Protection Class	IP68
Lightning Protection	6KV
Radar Water Velocity Sensor
Frequency	24GHz
Maximum Range	40m
Velocity Range	0.03~20m/s
Accuracy	±0.01m/s or ±1% FS
Antenna Angle	12°
Measurement Direction	Automatic flow direction identification, built-in vertical angle correction
Radar Water Level Sensor
Frequency	80GHz
Measuring Range	0.2~7m / 0.2~10m / 0.4~40m (configurable)
Accuracy	±2mm / ±3mm (depending on range)
Antenna Angle	8°
Data Transmission	RS485 / RS232 / 4~20mA / 4G/LoRa (wireless option)

This water flow velocity meter is the most popular type in our projects. It has excellent data stability and a high repurchase rate among domestic and foreign customers.

For more case details or quotations, please contact us.

◀◀ Application Scenarios ▶▶

Application

1. Flow velocity, water level and flow measurement of open channels, irrigation canals, underground pipe networks, etc.; 2. Auxiliary water treatment operations, such as urban water supply and sewage outfall monitoring; 3. Flow calculation, water inlet and drainage flow monitoring, etc.
