PH Sensor Types, Electrode Selection & Price Guide for Water Quality Monitoring

1. What is a Water Quality pH Sensor?

A water pH sensor is a core device for measuring the acidity or alkalinity of water, with a pH scale ranging from 0 to 14. A pH value of 7 is neutral; values below 7 indicate acidity (lower values = stronger acidity), and values above 7 indicate alkalinity (higher values = stronger alkalinity). Practically, solutions with an exact pH of 0 or 14 rarely exist.

This measurement is crucial for multiple scenarios: it affects the survival of aquatic organisms in ecosystems, ensures the effectiveness of industrial processes, and guarantees the safety of drinking water (ideal pH range: 6.5-8.5). For water treatment facilities and industrial production, maintaining appropriate pH levels is a key part of operational efficiency and compliance.

2. Main Types of pH Sensors for Water Quality

Different applications require specific pH sensor types, and the main categories are as follows:

• Combination pH Sensors: Integrate a measuring electrode and a reference electrode into one unit. The reference electrode provides a stable baseline signal, while the measuring electrode detects pH changes. Many come with built-in temperature sensors, featuring a compact structure and easy operation.

• Differential pH Sensors: Equipped with three electrodes (including a metal ground electrode). This design minimizes contamination of the reference system, ensuring high durability and reliability, suitable for harsh environments.

• Laboratory-Grade pH Sensors: Adopt plastic housing and 12mm glass shafts. Ideal for low-demand tasks such as environmental monitoring and swimming pool water testing.

• Industrial Process pH Sensors: Use combination sensor technology with a rugged housing and built-in process connectors. Designed for continuous operation in industrial environments like chemical plants and wastewater treatment facilities.

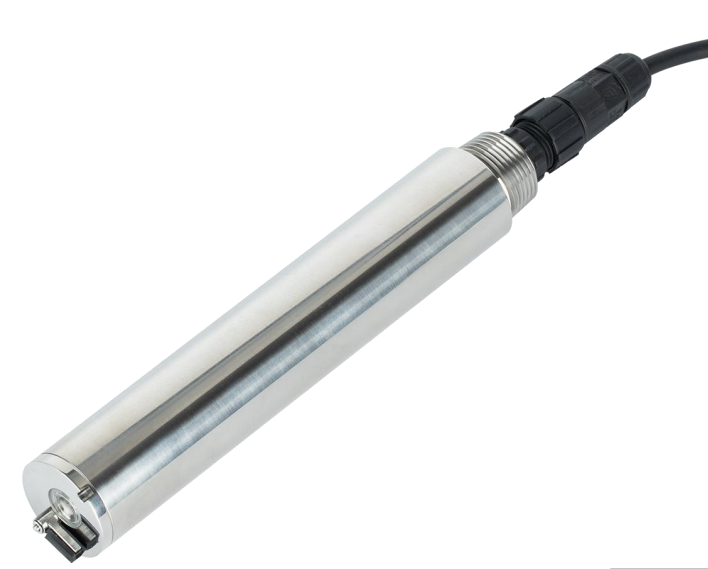

ph sensor for water

3. pH Electrode Selection Guidelines

Selecting the right pH electrode directly impacts measurement accuracy and project costs. Incompatible electrodes lead to inaccurate results and potential damage. Common electrode types and their applications are as follows:

• Glass Electrode: Composed of a special glass membrane, reference electrode, and buffer solution. Offers high accuracy, fast response, and is less affected by water color, turbidity, or salinity. Suitable for corrosive environments like bioengineering and pharmaceuticals.

• Combination Electrode: Integrates measuring and reference electrodes, with a built-in temperature sensor. Compact and easy to use, ideal for routine laboratory testing and industrial online monitoring.

• Desulfurization Electrode: Features a maintenance-free gel design, accurate in high-temperature/high-pH environments. Flat surface for easy cleaning, suitable for mineral slurries and flue gas desulfurization processes.

• PTFE Electrode: Made of polytetrafluoroethylene, resistant to strong acids and alkalis. Equipped with a protective ring for the glass bulb, ensuring high precision. Suitable for industrial wastewater and heavily contaminated water.

• Antimony Electrode: Uses metallic antimony as the sensing material; a surface oxide film reacts with hydrogen ions to measure pH. Highly corrosion-resistant, suitable for hydrofluoric acid and other strong corrosive solutions.

• Electroplating Electrode: Dual-junction design reduces reference electrolyte contamination, with a long service life in harsh environments. Ideal for electroplating wastewater and fermentation processes.

4. Price Ranges of Water pH Sensors

Water pH sensor prices vary widely based on application, accuracy, and features, mainly divided into three grades:

• Budget/Hobbyist Options (DIY/Amateur Use): Basic analog pH sensor modules (e.g., for Arduino projects) cost $10-$50, requiring a microcontroller to read data.

• Mid-Range Options (Daily Testing): Handheld digital pH pens/testers cost $50-$250, offering reliable accuracy for everyday use. Basic portable meters with data logging functions start at $100 and go over $400.

• Professional & Industrial Options (Precision/Continuous Monitoring): Benchtop meters for research with high precision cost $400-$1,000+. Industrial-grade online sensors for continuous monitoring (e.g., water treatment plants) exceed $1,000, depending on robustness and advanced features.

Key price-influencing factors: Accuracy and resolution (higher precision = higher cost), additional features (data logging, automatic temperature compensation, digital outputs), application scenarios (industrial use costs more than hobbyist use).

5. Core Characteristics of BGT Water pH Sensors

BGT's water pH sensor (e.g., BGT500-12 model) adopts electrochemical measurement principles, covering a pH range of 0-14, with a supply voltage of 7-30VDC and power consumption below 0.2W. It has the following core advantages:

• High Precision & Sensitivity: Accuracy of ±0.05pH and resolution of 0.01pH, enabling detection of small pH changes and providing detailed analysis data.

• Fast Response: Responds in less than 8s in flowing liquid and less than 14s in stationary liquid, supporting timely monitoring and prompt action.

• Excellent Stability: Stability of ≤0.01pH/24h, ensuring consistent performance and reducing recalibration frequency.

• Easy Operation: No specialized calibration instruments required, accessible to users with different technical levels.

• Flexible Installation: Offers dual output signals (4-20mA and RS485) for easy integration with various monitoring systems. IP68 protection rating for water resistance, default 5m cable (customizable) and optional mounting brackets, adapting to different setups.

6. Applications & Importance of Water pH Sensors

6.1 Main Applications

• Agriculture: Monitoring irrigation water pH to optimize crop growth conditions.

• Wastewater Treatment: Monitoring and controlling pH during treatment to meet environmental standards.

• Chemical Industry: Quality control for water-involved chemical processes.

• Environmental Protection: Monitoring water quality in rivers, reservoirs, and wells to protect aquatic ecosystems.

• Daily & Public Facilities: Drinking water safety testing and swimming pool water balance monitoring.

6.2 Core Importance

• Ensuring Public Health: Avoiding health risks from unbalanced pH water (e.g., dry skin, dull hair).

• Improving Industrial Efficiency: Optimizing production processes, reducing energy consumption, and minimizing unexpected downtime.

• Cost Control: Preventing extra costs for pH correction chemicals and reducing water waste, aligning with sustainability goals.

• Environmental Compliance: Meeting water quality regulations and protecting aquatic life by maintaining optimal pH levels.
