The drinking water quality monitoring station is a high-precision online monitoring device tailored for domestic drinking water, water supply systems and water source scenarios. It enables 24/7 real-time water quality monitoring, automatic data analysis, anomaly early warning and remote data upload. Optimized for high accuracy, safety and compliance requirements of drinking water supervision, the equipment features high precision, outstanding stability, zero secondary pollution and low maintenance.
Application Scenarios
Water Source Areas
Real-time water quality monitoring for rivers, reservoirs and groundwater intakes, providing early warnings of algae outbreaks, pollutants and water quality anomalies.
Water Treatment Plants
Continuous monitoring of filtered water, clear water tanks and finished water quality to ensure stable and compliant tap water output.
Rural Centralized Water Supply Projects
Regular water quality monitoring for rural water supply stations and small-scale water facilities, supporting rural and urban drinking water safety programs.
Terminal Water Supply for Public Facilities
End-point water quality monitoring for schools, hospitals and industrial parks to guarantee safe drinking water in densely populated areas.
Product Selection & Classification

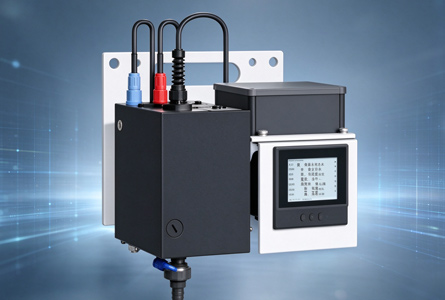

GHFA-220 Integrated Drinking Water Monitor
Lightweight and low-power all-in-one unit with control output functions, designed for decentralized monitoring points. Compact and easy to deploy for distributed water supply scenarios.

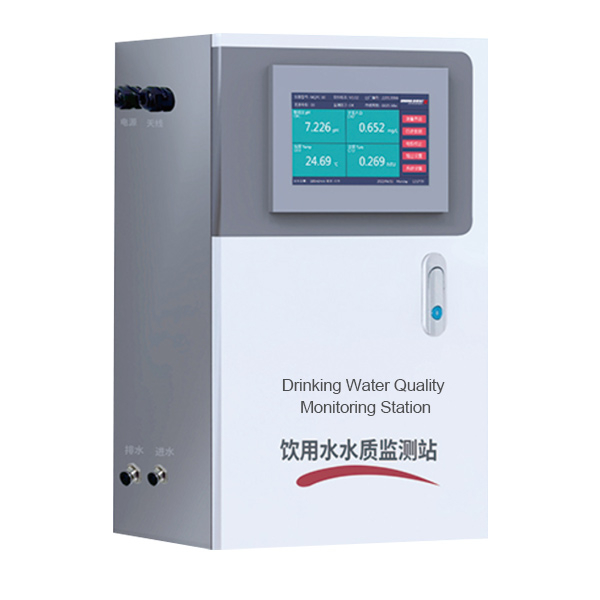

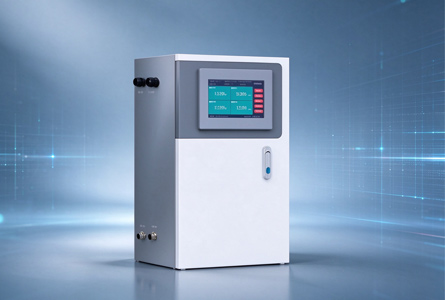

GHFA-200 Drinking Water Monitoring Station
Station-grade monitoring system equipped with a large display screen and standard supervisory communication protocols. It supports HJ212 national environmental and water conservancy protocol for government platform access, specially built for networked governmental monitoring projects with on-site operation and visual data display demands.
Comparison Item | GHFA-220 Drinking Water All-in-One Monitor | GHFA-200 Drinking Water Quality Monitoring Station |
Product Form | All-in-one unit, highly integrated; main unit 300×250×206 mm | Monitoring station, enclosure 500×300×220 mm |
Display & Interaction | 3.2" TFT screen (240×320), Chinese interface | 7" touchscreen (800×480), significantly better on-site operation experience |
Communication Protocol | Modbus-RTU + 1× RS485 | Modbus-RTU + HJ212-2017 (environmental protection standard protocol) + customizable |
Power Supply | 100–240 VAC; 12–24 VDC optional; low power consumption (20 W max) | 100–240 VAC, standard 3-pin plug (no DC option) |
Control Output | 1× relay (1 A) + 1× 4–20 mA output | Not listed on datasheet |
Data Storage | Onboard Flash, 10.8 million historical data records, battery-backed clock, serial port data export | Not listed on datasheet |
Water Flow | Inlet 150–400 mL/min (higher upper limit), drain Ø20×14 mm | Inlet 150–250 mL/min, drain Ø10 mm |
Environmental Tolerance | 10–90% RH, higher humidity tolerance | 10–80% RH |
Core Advantages
24/7 Continuous Monitoring & Proactive Early Warning
Deployed along water supply pipe networks and decentralized water supply points, the system delivers round-the-clock continuous monitoring and instant abnormal alerts, enabling early risk identification rather than passive post-event data review.
Multi-Technology Integrated Design
Integrated optical, electrochemical and physical sensors support synchronous multi-parameter detection of residual chlorine, turbidity, pH and more. It avoids data desynchronization caused by assembling multiple single-parameter meters.
Automatic Cleaning & Defoaming for Maintenance-Free Operation
Equipped with electrode reverse polarization cleaning, wiper-based turbidity cleaning, flow flushing and automatic defoaming functions. Effectively prevents data drift and measurement deviation, ensuring long-term stable operation without frequent manual maintenance.
Powerful Network Compatibility for Government Platform Access
Supports Modbus-RTU and RS485 for SCADA and PLC system docking. The GHFA-200 model adopts the standard HJ212-2017 protocol with customizable interfaces, enabling direct data upload to official environmental and water resource supervision platforms, fully meeting governmental project compliance requirements.
Flexible Deployment for All Scenarios
Dual deployment solutions cover diverse site conditions. The compact GHFA-220 all-in-one unit features low power consumption (20W) and 12–24VDC power supply, compatible with solar power for off-grid decentralized sites. The GHFA-200 station supports mains power and large-screen touch display for standardized station-level projects. Relay and 4-20mA output linkage support local alarm and automatic dosing control.
Project Cases
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.

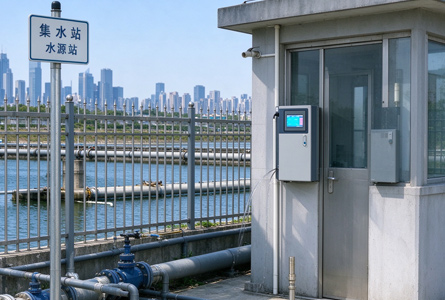

Urban Centralized Water Source Monitoring
Real-time water quality supervision for urban raw water sources to prevent sudden water pollution risks.

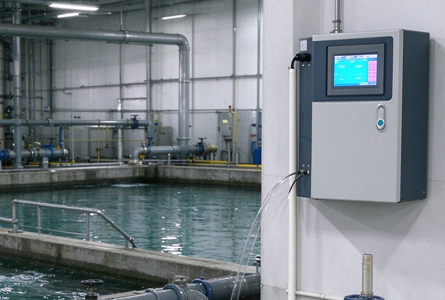

Water Plant Finished Water Quality Control
Stable monitoring of plant outlet water to ensure long-term compliant water supply.

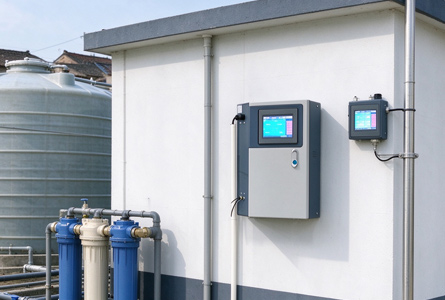

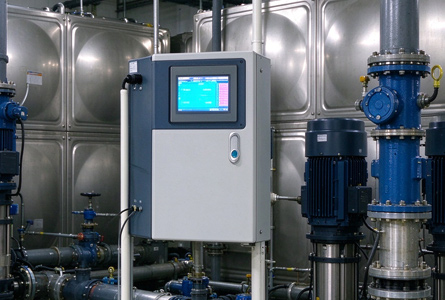

Community Secondary Water Supply Monitoring
End-point water quality safety management for residential secondary water supply facilities.
Urban & Rural Water Supply Renovation Projects
Applied widely in rural water supply upgrading and decentralized drinking water safety improvement
