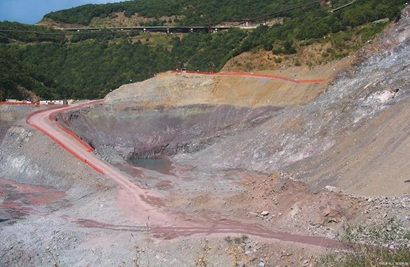

The stability of open-pit mine slopes is critical to operational safety and economic efficiency. Slope failures can lead to landslides, collapses, and other catastrophic incidents, posing the following risks:
Personnel hazards: Landslides may bury equipment and endanger workers.
Production disruptions: Accidents force mining operations to halt, causing delays and reduced output.
Equipment damage: Heavy machinery (e.g., excavators, haul trucks) can be destroyed, leading to costly repairs or replacements.
Regulatory and environmental liabilities: Slope failures may trigger environmental damage, regulatory fines, and reputational harm.
A real-time online monitoring system provides early warnings of slope deformation, enabling preventive measures (e.g., reinforcement or evacuation) to mitigate risks.
Current Challenges
Most open-pit mines rely on traditional monitoring methods (e.g., GNSS, total stations, sensors), which face three major limitations:
Restricted coverage and safety risks: Contact-based measurement limits deployment density and poses safety hazards.
Weather and time constraints: Rain, fog, and nighttime conditions hinder 24/7 continuous monitoring.
Insufficient precision: Millimeter-level accuracy struggles to detect early-stage submillimeter creep deformations. These issues lead to incomplete data, delayed warnings for deep structural instability, and blind spots in complex geological environments.

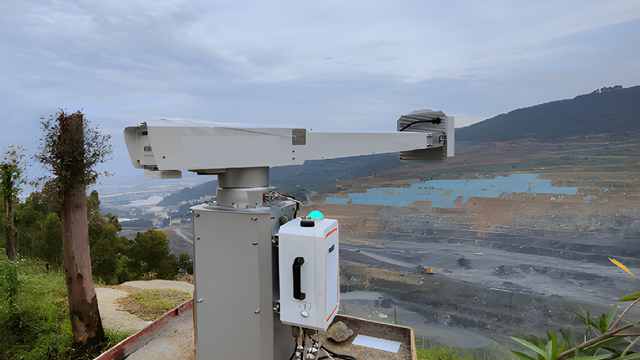

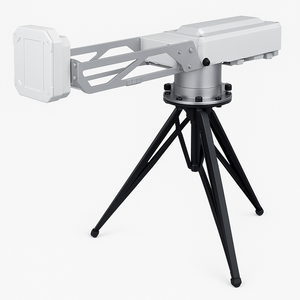

Innovative SAR-Based Solution
Our advanced monitoring system uses Synthetic Aperture Radar (SAR) technology to overcome traditional limitations. It combines:
Non-contact remote sensing: GHz microwaves penetrate rain/fog and cover distances up to kilometers.
Phase interferometry: Submillimeter displacement resolution for precise deformation tracking.
This creates a 360°Comprehensive real-time monitoring network, enabling real-time millimeter-level monitoring of surface and deep slope movements, ensuring safer and smarter mining operations.
Key Features

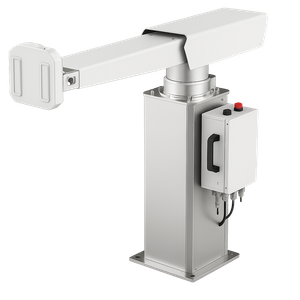

All-in-one design: Integrated data processing and communication for unmanned operation.
Full coverage: 360° monitoring with no blind spots, using arc-scan imaging and continuous-wave radar.
High precision & speed: Early detection of slope instability with rapid data updates.
Adaptive algorithms: Compensates for atmospheric interference without requiring reference points.
3D terrain integration: Combines deformation data with slope angles for accurate risk prediction.
Customizable & open-source: Flexible communication/power protocols and support for customized.

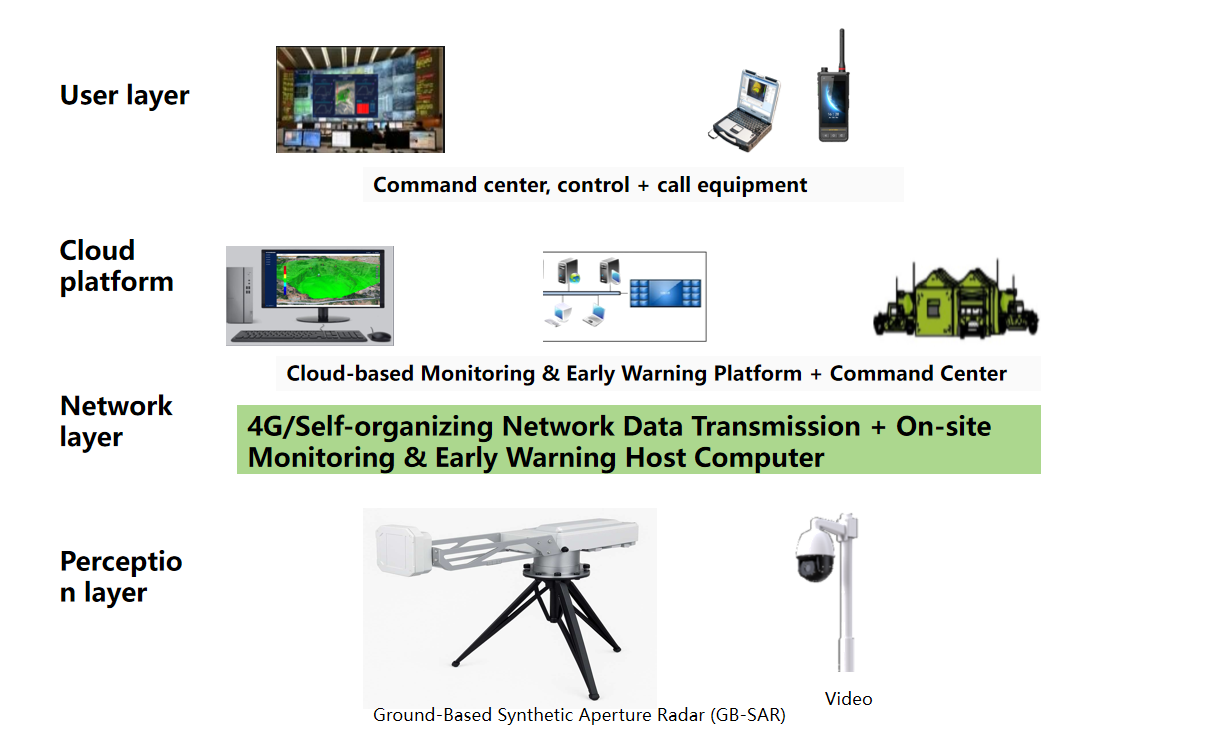

Monitoring Platform
Browser/Server (B/S) architecture: Cross-platform compatibility and easy operation.

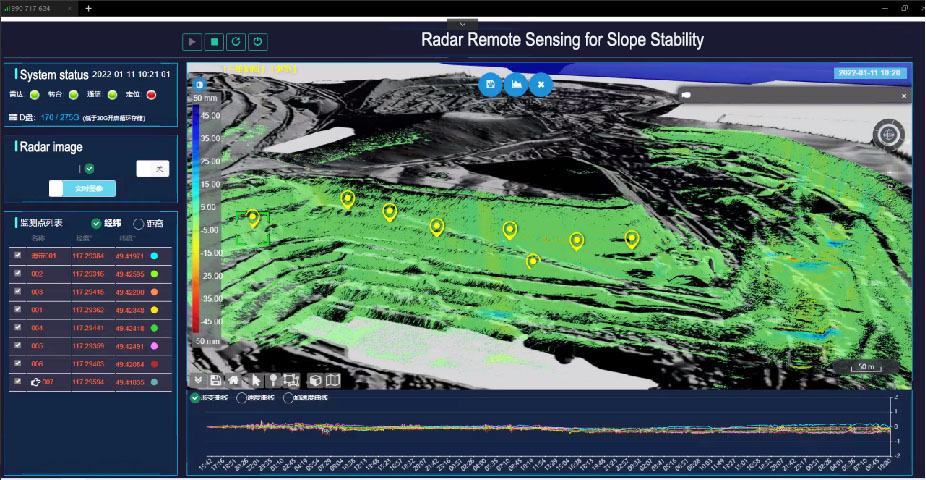

3D visualization: Radar data overlaid on topographic maps for clear situational awareness.
Multi-channel alerts: Instant warnings via interface, SMS, or email.
Prevents equipment loss (a single large mining truck can cost millions of dollars).
Minimizes emergency response, cleanup, and restart expenses (a moderate landslide incident may exceed $10 million in recovery costs).
Early intervention (e.g., localized stabilization) avoids full-scale shutdowns.
Industry cases show effective monitoring can reduce unplanned downtime by over 30%, significantly boosting annual production.
Enables steeper slope angles (where geotechnically feasible), reducing waste stripping by 10–20% and lowering extraction costs.
Long-term stability data supports mine planning, maximizing resource recovery.
Insurers may offer reduced premiums for mines with advanced monitoring systems.
Ensures compliance with regulations (e.g., OSHA, MSHA), avoiding penalties or forced closures.
