Mini atmospheric temperature, humidity, pressure, wind speed and direction weather station

5 Element Compact Weather Station Mini Type

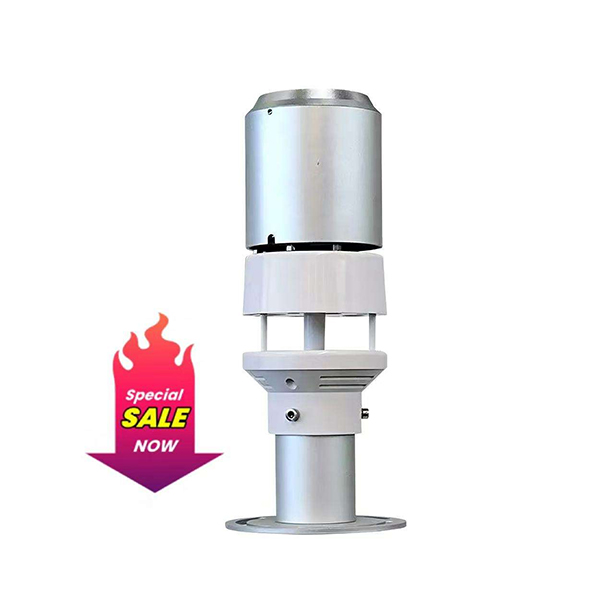

Mini Atmospheric 5 Elements Weather Station

1.Products Introduction
BGT-W87X(M1) environmental monitoring instrument is a cost-effective micro meteorological environment monitoring instrument developed by our company.It uses low power chip and low power circuit design.The power consumption of conventional 5 elements is only 0.2W.The 6 elements (including rainfall) were only 0.45W.It is especially suitable for solar energy or battery power supply environment with high power consumption requirement.Because of the new design, the structure is more compact and compact, with a diameter of about 8CM and a height of about 10CM (conventional 5 elements).

Availability:



Inquire

◀◀ Key Selling Points ▶▶

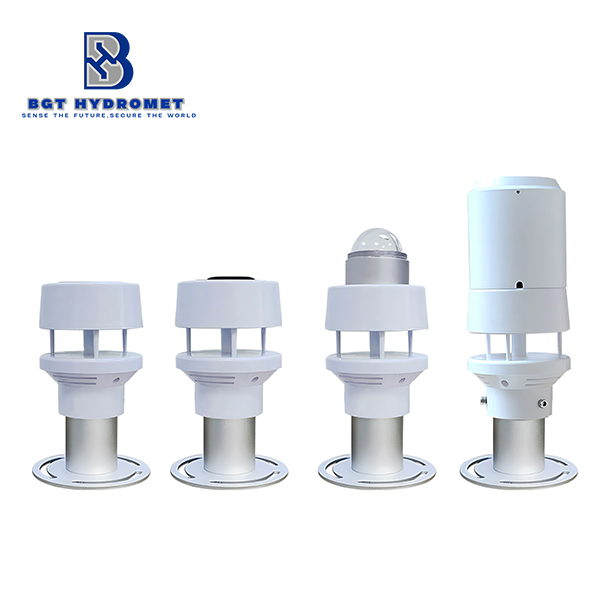

∎According to actual need to choose any monitoring elements: wind speed and direction, temperature, humidity, air pressure, rainfall/light/solar radiation;

∎The cost is low, suitable for grid points;

∎The machine power consumption is low, only 0.2 W, especially suitable for occasions of high power consumption requirements;

∎Smal sizel, modular design to facilitate integration and flexible layout;

∎High-efficiency filter algorithm, in view of the rain and fog weather special compensation technology, to ensure the stability and consistency of the data;

∎Each weather instrument before delivery,have been test, to ensure that the environmental data meet the national standards;

∎Wide environmental adaptability, Product development after strict high and low temperature, waterproof, salt spray and other environmental tests.Ultrasonic probe in the case of no heating, at -40℃ low temperature environment, the equipment can still work normally.

compact weather station

You are here: Home / Products / Meteorological Monitoring / Compact Weather Station / Mini Atmospheric 5 Elements Weather Station

Electrical parameter		Mechanical structure parameter
Working power	DC9V-30V or 5V	Material	ABSengineering plastic
Power consumption	200mW(Standard 5 elements with compass)	Entry cable	Aviation socket, sensor cable 3 meters
Output	RS485 modbus	Color	Milk white
Working environmental humidity	0~100%RH	IP grade	IP65
Working environmental temperature	-40℃~+80℃	Weight	240 g(5 elements)

configuration	Elements	Measuring range	Accuracy	Resolution	Power consumption
Conventional two elements	Wind speed	0～45m/s	Start wind ≤0.8m/s， ±(0.5+0.02V)m/s；	0.01m/s	0.12W
Conventional two elements	Wind direction	0～360	±3°	1°	0.12W
Optional elemetns	□ Air temp	-40～80℃	±0.3℃	0.1℃	1mW
	□ Air humidity	0～100%RH	±5%RH	0.1%RH	1mW
	□ Pressure	300～1100hPa	±0.5 hPa（25℃）	0.1 hPa	0.1mW
	□ Compass	0～360	±5°	1°	10mW
Optional elements (You can only choose 1 of 3)	□ Drop sensing rainfall	Measruing range： 0～4.00mm/min	±4%（Indoor static test, rain intensity is2mm/min）	0.03mm	0.24W
	□ illuminance	0～200000Lux	±4%	1 Lux	0.1mW
	□ Radiation	0-1500 W/m2	±3%	1W/m2	400mW
Total power consumption = Optional sensor power consumption + basic mainboard power consumption				Basic power consumption of mainboard	200mW
