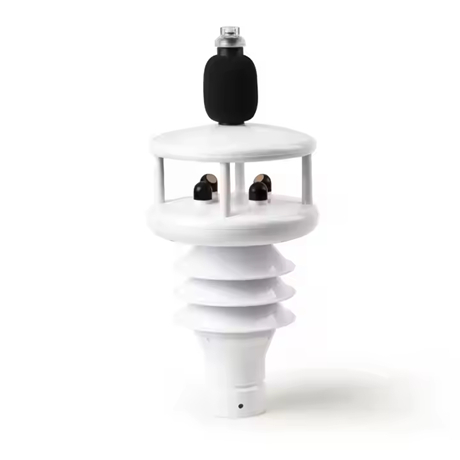

BGT-W83X(M3) Small Automatic Weather Station

BGT-W83X(M3) Small Automatic Weather Station

BGT-W83X(M3) small automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, and visibility, environmental noise, PM2.5 and PM10 and other meteorological elements. It uses low-power chips inside. It can also be equipped with a MINI visibility detection module, which is very suitable for the use of smart city
control systems.

Availability:



Inquire

◀◀ Key Selling Points ▶▶

All-in-One Monitoring: Track temperature, humidity, wind, rain, PM2.5, CO2, and more.
Customizable Sensors: Add UV, noise, soil moisture, or gas sensors as needed.
Built for Extremes: IP65-rated, survives -40°C to +80°C，70m/s wind speed.
Smart Connectivity: RS485 Modbus-RTU for IoT integration.
Easy Setup: Mounts in minutes, low power consumption.

◀◀ Product Parameters ▶▶

Parameter	Principle	Range	Accuracy	Resolution
Wind Speed	Ultrasonic	0–70 m/s	±3%	0.1 m/s
Wind Direction	Ultrasonic	0–359°	<3°	1°
Air Temperature	MEMS Sensor	-40℃ ~ +80℃	±0.5℃	0.1℃
Air Humidity	MEMS Sensor	0–100% RH	±2%	0.1%
Air Pressure	MEMS Sensor	150–1100 hPa	±1 hPa	0.1 hPa
Precipitation	Piezoelectric	Type: Rain/Hail/Snow	±10% (Intensity)	0.01 mm
Rain Intensity	Piezoelectric	0–500 mm/hr	±10%	0.01 mm/hr
Solar Radiation	Photoelectric	0–2000 W/m²	±5%	0.1 W/m²
Luminance	Photoelectric	0–200,000 lux	±5%	0.1 lux
PM1.0/PM2.5/PM10	Scattering	0–500 μg/m³	±10%	1 μg/m³
Noise	Microphone	30–130 dB	±3 dB	0.1 dB
Digital Output	—	RS485, RS232, SDI-12	—	—
Power Supply	—	7–30 VDC	—	0.1–0.7 W (Heating: ≥12 VDC)
Operate Temp/Humid	—	-20°C ~ +50°C / 0–100%	—	—
IP Protection	—	IP65	—	—
Baud Rate	—	4800–19200	—	—
Communication	—	ModBus, NMEA-0183, ASCII	—	—
Size	—	Φ110mm × (217–297mm)	—	0.38 kg
Material	—	White/ASA	—	—

◆◆ Master the Elements with BGT Weather Station

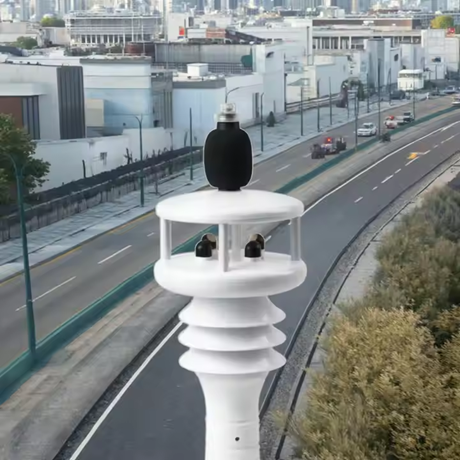

From farms to cities, the BGT Integrated Weather Station delivers real-time, lab-grade data on 20+ parameters – temperature, humidity, wind, rain, PM2.5, CO2, and more. Perfect for precision agriculture, environmental research, and smart city planning.

◆◆ Customizable for Your Needs

Add UV, noise, soil moisture, or gas sensors to tailor the station to your specific requirements.

RS485 Modbus-RTU ensures seamless integration with IoT platforms and SCADA systems.
